DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4010B-080-296FAN AXIAL 40X10.5MM 5VDC WIRE |
233 |
|
Datasheet |
 |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 29.6dB(A) | 1.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

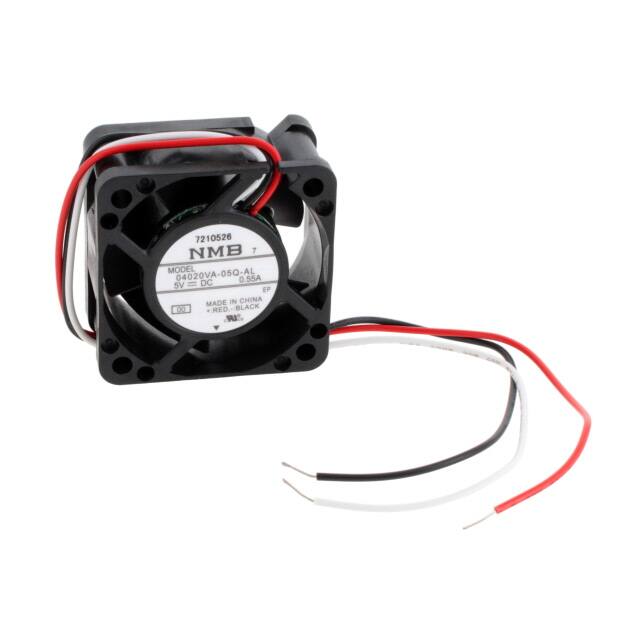

04020VA-05Q-AL-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
337 |
|
Datasheet |
|
04020VA | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | - | - |
|

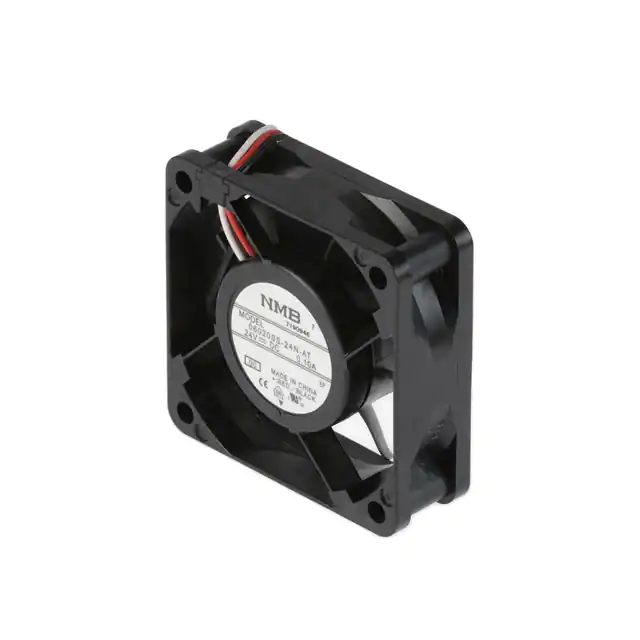

06020SS-24N-AT-00FAN AXIAL 60X20MM 24VDC WIRE |
200 |
|
Datasheet |
|
06020SS | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.5dB | 1.68 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.124 lb (56.25 g) |
|

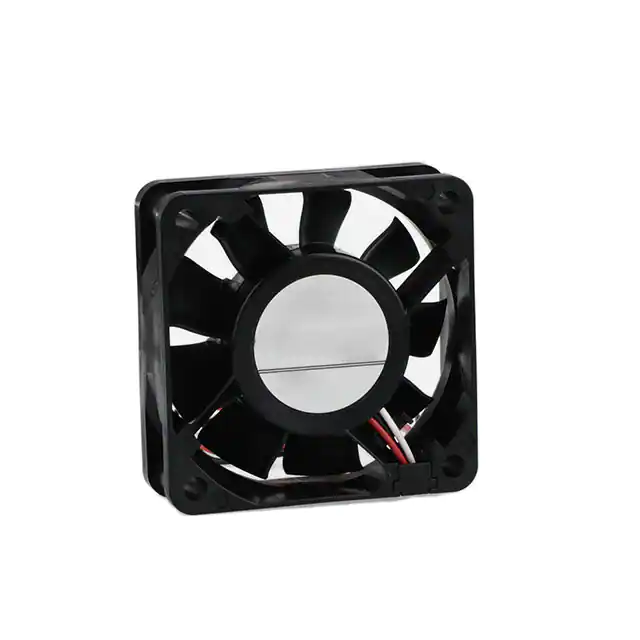

06020SS-12N-AT-00FAN AXIAL 60X20MM 12VDC WIRE |
174 |
|
Datasheet |
|
06020SS | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 30.5dB | 1.08 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.124 lb (56.25 g) |
|

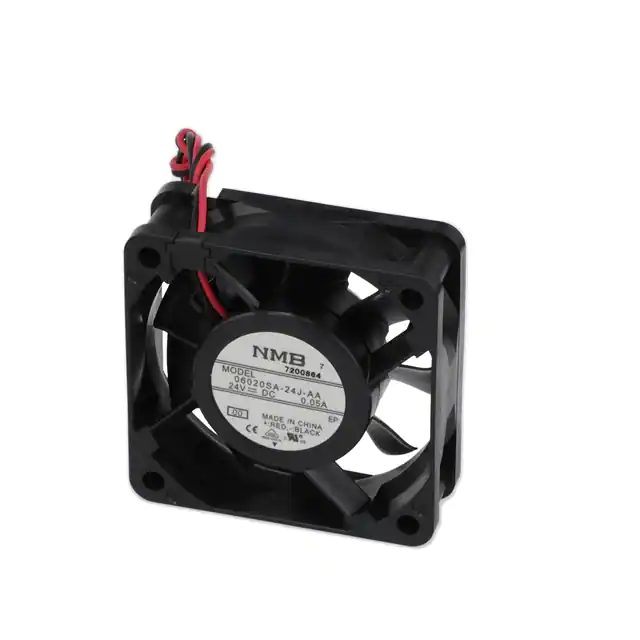

06020SA-24J-AA-00FAN AXIAL 60X20MM 24VDC WIRE |
114 |
|
Datasheet |
|
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
06020SA-12J-AA-00FAN AXIAL 60X20MM 12VDC WIRE |
396 |
|
Datasheet |
|
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 12.7 CFM (0.356m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 21.5dB | 580 mW | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|
CFM-3510CF-170-222-20FAN AXIAL 35X10.3MM 12VDC WIRE |
192 |
|
Datasheet |
|
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.3dB(A) | 960 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

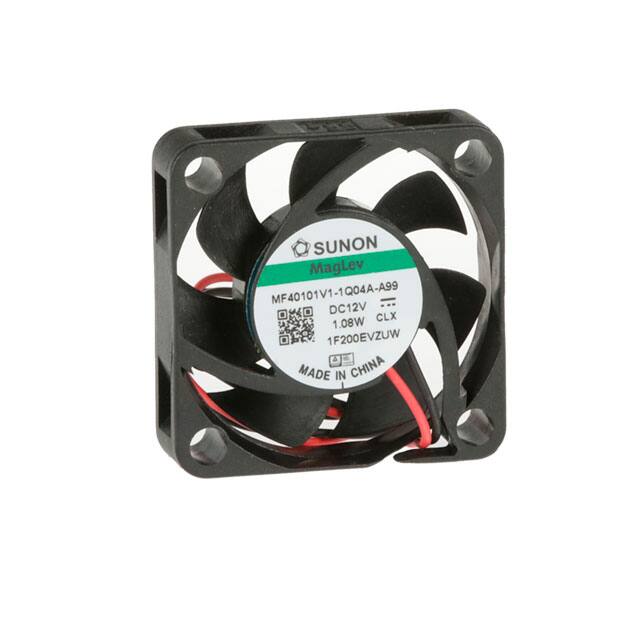

4515HQ/MF40101V1-1Q04A-A99DC FAN 40X10MM VAPO 8.2CFM |
182 |
|
Datasheet |
|
* | Box | Active | - | - | - | - | - | - | - | - | 27.3dB(A) | - | - | - | - | - | - | - |
|
CFM-6020V-157-390-20FAN AXIAL 60X20MM 12VDC WIRE |
187 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 25.6 CFM (0.717m³/min) | 0.270 in H2O (67.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.0dB(A) | 1.97 W | 5700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
FAD1-04020BBHW11FAN AXIAL 40X20MM BALL 5VDC WIRE |
333 |
|
Datasheet |
|
FAD1-04020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 1.25 W | 7800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
CFM-4010B-065-251-20FAN AXIAL 40X10.5MM 5VDC WIRE |
357 |
|
Datasheet |
|
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.1dB(A) | 850 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020V-131-210-20FAN AXIAL 60X20MM 12VDC WIRE |
142 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 580 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
|
CFM-6025V-138-220-20FAN AXIAL 60X25MM 12VDC WIRE |
102 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.0dB(A) | 1 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.099 lb (44.91 g) |
|
OD4020-05LBFAN AXIAL 40X20MM BALL 5VDC WIRE |
250 |
|
Datasheet |
|
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 24.1dB(A) | 900 mW | 5150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|
OD6020-12MBFAN AXIAL 60X20MM 12VDC WIRE |
216 |
|
Datasheet |
|
OD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 17.3 CFM (0.484m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
CFM-6025BF-165-408-20FAN AXIAL 60X25.4MM 12VDC WIRE |
340 |
|
Datasheet |
|
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.9dB(A) | 5.04 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
06025SA-24M-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
118 |
|
Datasheet |
|
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 27.5dB | 1.4 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06025SA-12P-EA-D0FAN AXIAL 60X25MM 12VDC WIRE |
102 |
|
Datasheet |
|
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 2.04 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
05115GS-12L-AAD-0FAN BLOWER 51X15MM 12VDC WIRE |
263 |
|
- |
|
05115GS | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 4.6 CFM (0.129m³/min) | 0.820 in H2O (204.3 Pa) | Sleeve | Blower | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
MS2507L05D-RSRFAN AXIAL 25X7.4MM SLEEVE 5VDC |
286 |
|
Datasheet |
|
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 7.40mm | 1.2 CFM (0.034m³/min) | 0.090 in H2O (22.4 Pa) | Sleeve | Tubeaxial | - | 20.0dB(A) | - | 7000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
