DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3610VL-05W-B70-E00FAN AXIAL 92X25MM 24VDC WIRE |
805 |
|
Datasheet |
 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 9.12 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
|
3610VL-05W-B50-B00FAN AXIAL 92X25MM 24VDC WIRE |
754 |
|
Datasheet |
|
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 5.28 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
|
3610VL-04W-B70-E00FAN AXIAL 92X25MM 12VDC WIRE |
463 |
|
Datasheet |
|
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 8.64 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
|
3610VL-04W-B50-B00FAN AXIAL 92X25MM 12VDC WIRE |
336 |
|
Datasheet |
|
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.298 lb (135.17 g) |
|
D8025M48SPLP1FAN AXIAL 80X25MM 48VDC WIRE |
139 |
|
Datasheet |
|
Intelligent Motion | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 34.1 CFM (0.97m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 28.6dB(A) | 1.92 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
4509HQ/PF40201B1-1Q01A-G99FAN AXIAL 40X20MM 13.5VDC WIRE |
120 |
|
- |
|
PF | Box | Obsolete | 13.5VDC | Square - 40mm L x 40mm H | 20.00mm | 14.0 CFM (0.392m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.5dB(A) | 2.43 W | 13000 RPM | 3 Wire Leads | - | -40 ~ 221°F (-40 ~ 105°C) | CE | 0.061 lb (27.67 g) |
|
4710KL-04W-B50-E00FAN AXIAL 119X25.5MM 12VDC WIRE |
1,581 |
|
Datasheet |
|
4710KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | - | 41.5dB | 6.6 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-04W-B40-E00FAN AXIAL 119X25.5MM 12VDC WIRE |
374 |
|
Datasheet |
|
4710KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | - | 38.5dB | 4.8 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-04W-B30-E00FAN AXIAL 119X25.5MM 12VDC WIRE |
246 |
|
Datasheet |
|
4710KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 88.2 CFM (2.47m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.36 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-04W-B10-E00FAN AXIAL 119X25.5MM 12VDC WIRE |
124 |
|
Datasheet |
|
4710KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 63.5 CFM (1.78m³/min) | 0.072 in H2O (17.9 Pa) | Ball | Tubeaxial | - | 27.0dB | 1.44 W | 1600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-04W-B20-E00FAN AXIAL 119X25.5MM 12VDC WIRE |
2,204 |
|
Datasheet |
|
4710KL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.50mm | 75.9 CFM (2.13m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 31.0dB | 2.28 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
AGB208NFAN MICR BLOWER 20X8MM 5VDC WIRE |
175 |
|
- |
|
Air-G | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 0.840 CFM (0.024m³/min) | 0.235 in H2O (58.5 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 18.0dB(A) | - | 14000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.007 lb (3.18 g) |
|
AGB208NLFAN MICR BLOWER 20X8MM 5VDC WIRE |
169 |
|
- |
|
Air-G | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 0.660 CFM (0.019m³/min) | 0.146 in H2O (36.3 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 14.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.007 lb (3.18 g) |
|
AGB184FAN MICR BLOWER 18X4MM 5VDC WIRE |
125 |
|
- |
|
Air-G | Box | Active | 5VDC | Square - 18mm L x 18mm H | 4.00mm | 0.200 CFM (0.006m³/min) | 0.203 in H2O (50.5 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 35.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.004 lb (1.81 g) |
|

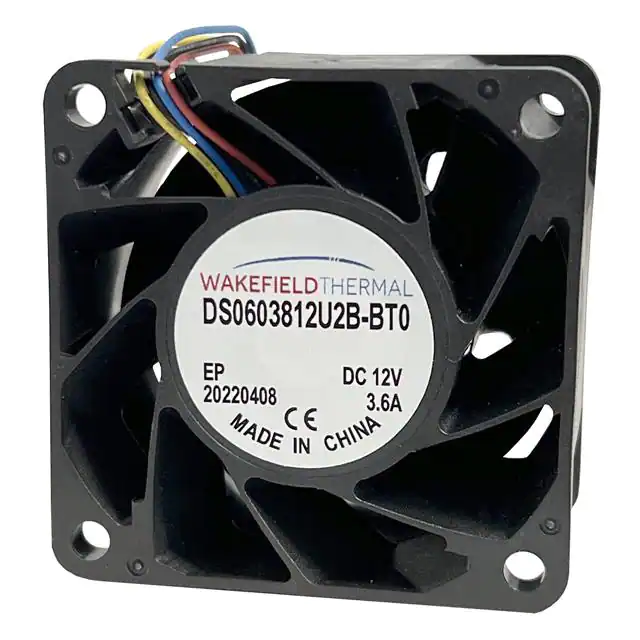

DS0603812U2B-BT0FAN AXIAL 60X38MM 12VDC WIRE |
280 |
|
Datasheet |
|
DS | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 78.0 CFM (2.18m³/min) | 4.744 in H2O (1181.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.5dB(A) | 40.32 W | 21500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
OD4028-48HHBThermal Products |
376 |
|
- |
|
OD4028 | Bulk | Active | 48VDC | Square - 40mm L x 40mm H | 28.00mm | 24.0 CFM (0.672m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart | 54.2dB(A) | 7.2 W | 12900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | - |
|
BG1203-B055-000-00FAN BLOWER 120X32MM 24VDC WIRE |
1,013 |
|
Datasheet |
|
12032GA | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | - | 55.0dB | 11.5 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
AGB304HFAN MICR BLOWER 30X4MM 5VDC WIRE |
163 |
|
- |
|
Air-G | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.50mm | 1.1 CFM (0.033m³/min) | 0.484 in H2O (120.4 Pa) | Axial Groove | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 32.6dB(A) | - | 11000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.01 lb (4.54 g) |
|
AGA135FAN MICRO FAN 13X5MM 3VDC WIRE |
116 |
|
- |
|
Air-G | Box | Active | 3VDC | Square - 13mm L x 13mm H | 5.00mm | 0.160 CFM (0.005m³/min) | 0.078 in H2O (19.4 Pa) | Axial Groove | Micro Fan | Locked Rotor Protection, Auto Restart, Polarity Protection | 15.7dB(A) | - | 16000 RPM | 2 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE | 0.002 lb (0.91 g) |
|
PF40281B1-000U-A99FAN AXIAL 40X28MM 12VDC WIRE |
255 |
|
Datasheet |
|
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 6.12 W | 17600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
