DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08025SE-24R-FT-DWFAN AXIAL 80X25MM 24VDC WIRE |
35 |
|
Datasheet |
 |
08025SE | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 4.08 W | 4500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
|
09225SE-24Q-FT-DWFAN AXIAL 92X25MM 24VDC WIRE |
74 |
|
Datasheet |
|
09225SE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.0dB(A) | 3.12 W | 3900 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, cULus, VDE | - |
|
MA3828S12B1-RSRFAN AXIAL 38X28MM 12VDC WIRE |
39 |
|
Datasheet |
|
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 6.2 CFM (0.174m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 30.8dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|

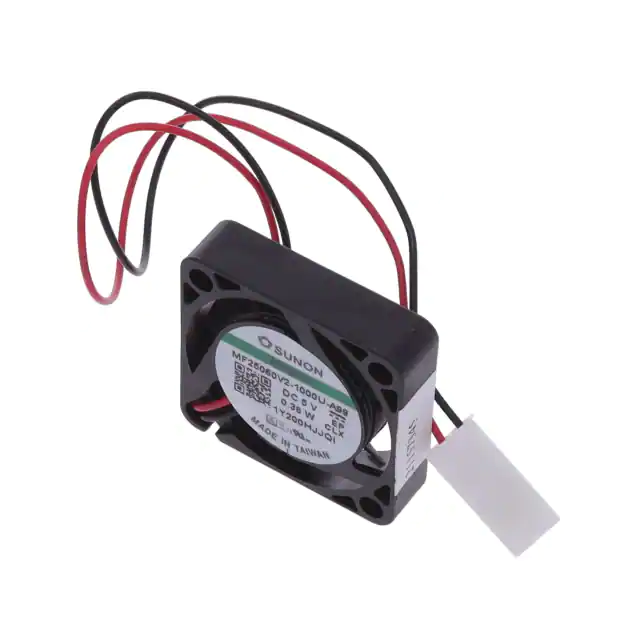

4138/MF25060V2-1000U-A99FAN AXIAL 25X6.5MM VAPO 5VDC |
9 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 6.50mm | 2.2 CFM (0.061m³/min) | 0.160 in H2O (40.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 18.0dB(A) | 380 mW | 10000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.012 lb (5.44 g) |
|
9A0912H402FAN AXIAL 92X25MM 12VDC WIRE |
64 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.52 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9A0624G401FAN AXIAL 60X25MM 24VDC WIRE |
19 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
CBM-7530BF-240-454-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
87 |
|
Datasheet |
|
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.4dB(A) | 5.52 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

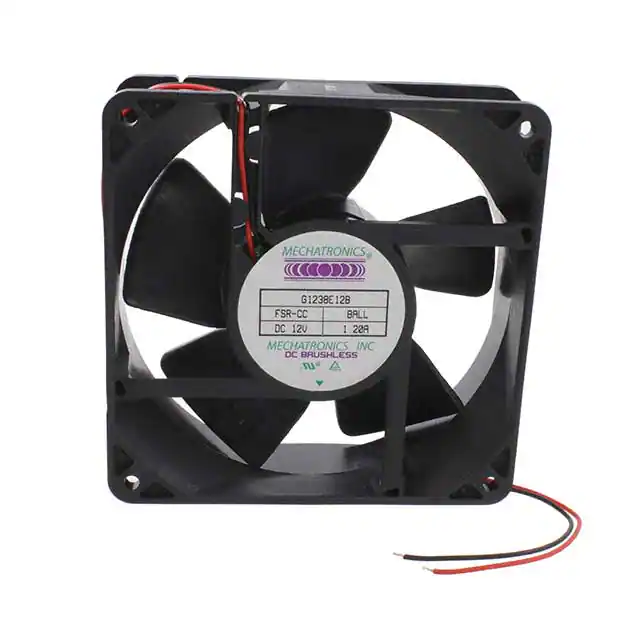

G1238E12B-FSR-CCFAN AXIAL 120X38MM 12VDC WIRE |
43 |
|
Datasheet |
|
G1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
109P0612M702FAN AXIAL 60X15MM 12VDC WIRE |
36 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 840 mW | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0612H602FAN AXIAL 60X20MM 12VDC WIRE |
100 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.56 W | 4200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9S0824M401FAN AXIAL 80X25MM 24VDC WIRE |
56 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
CFM-A225-23-10FAN AXIAL 120X25.4MM 24VDC WIRE |
59 |
|
Datasheet |
|
CFM-120 | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart | 53.5dB(A) | 9.36 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.417 lb (189.15 g) |
|
CFM-8025V-148-447-20FAN AXIAL 80X25MM 12VDC WIRE |
22 |
|
Datasheet |
|
CFM-80V | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.7dB(A) | 4.29 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
9S0912M4021FAN AXIAL 92X25MM 12VDC WIRE |
36 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 1.32 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9S0612H401FAN AXIAL 60X25MM 12VDC WIRE |
16 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
9A0924H401FAN AXIAL 92X25MM 24VDC WIRE |
94 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 2.4 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0412D602FAN AXIAL 40X20MM 12VDC WIRE |
18 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.498 in H2O (124.0 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 2.16 W | 11000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
109P0405J602FAN AXIAL 40X20MM BALL 5VDC WIRE |
8 |
|
Datasheet |
|
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.9 CFM (0.277m³/min) | 0.396 in H2O (98.6 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 2.3 W | 9800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
109P0424G301FAN AXIAL 40X28MM 24VDC WIRE |
59 |
|
Datasheet |
|
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 4.56 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0424J3D013FAN AXIAL 40X28MM 24VDC WIRE |
52 |
|
Datasheet |
|
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 4.32 W | 12500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
