DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9238-24HBIP68FAN AXIAL 92X38MM 24VDC WIRE |
81 |
|
Datasheet |
 |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | - | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 9.6 W | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
OD9238-48HBIP68FAN AXIAL 92X38MM 48VDC WIRE |
6 |
|
Datasheet |
|
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | - | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 12 W | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
9RA1212A4001FAN AXIAL 120X25MM 12VDC WIRE |
81 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 3.6 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1212M40011FAN AXIAL 120X25MM 12VDC WIRE |
56 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 2200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9RA0848G4001FAN AXIAL 80X25MM 48VDC WIRE |
40 |
|
Datasheet |
|
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224M4001FAN AXIAL 120X25MM 24VDC WIRE |
36 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.68 W | 2200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0848G40011FAN AXIAL 80X25MM 48VDC WIRE |
30 |
|
Datasheet |
|
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224A4001FAN AXIAL 120X25MM 24VDC WIRE |
27 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 3.84 W | 3500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0824P1G001FAN AXIAL 80X38MM 24VDC WIRE |
95 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 9.84 W | 6750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0812P1H001FAN AXIAL 80X38MM 12VDC WIRE |
50 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.92 W | 6100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

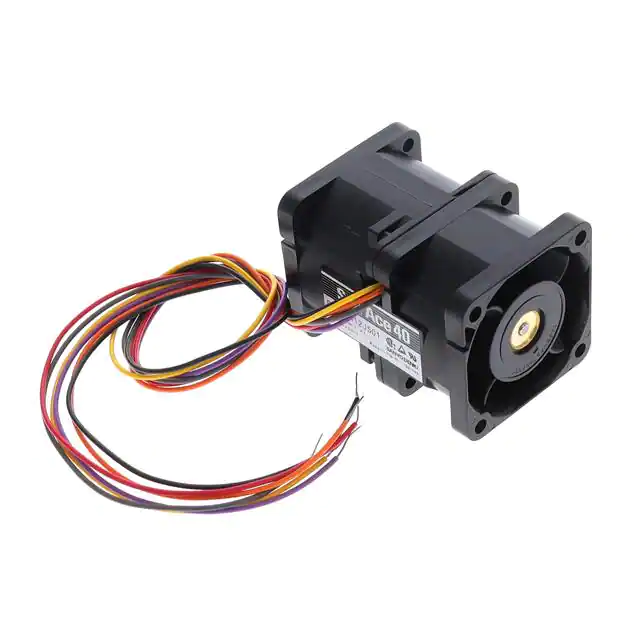

9CRA0412J501FAN AXIAL DUAL 40X56MM 12VDC |
22 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 62.0dB(A) | 16.8 W | 15800 Front, 12200 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
OD1238-12LBFAN AXIAL 120X38.5MM 12VDC WIRE |
78 |
|
Datasheet |
|
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 33.0dB | 3 W | 1950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD1238-12MBFAN AXIAL 120X38.5MM 12VDC WIRE |
20 |
|
Datasheet |
|
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 41.0dB | 4 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
ODB600-12MBFAN BLOWER 120.5X32MM 12VDC WIRE |
43 |
|
Datasheet |
|
ODB600PT | Box | Active | 12VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 25.0 CFM (0.700m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Blower | - | 42.0dB | - | 2500 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|
512F/2-531FAN AXIAL 50X15MM 12VDC WIRE |
15 |
|
Datasheet |
|
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.8 CFM (0.330m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA0848P4G0011FAN AXIAL 80X25MM 48VDC WIRE |
93 |
|
Datasheet |
|
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0848P4G001FAN AXIAL 80X25MM 48VDC WIRE |
36 |
|
Datasheet |
|
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OD8038-12HBIP69KFAN AXIAL 80X38MM 12VDC WIRE |
83 |
|
Datasheet |
|
OD8038-IP69K | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 71.0 CFM (1.99m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | 7.2 W | 5000 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9G1212G1D01FAN AXIAL 120X38MM 12VDC WIRE |
96 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 11.76 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
9G1212G1011FAN AXIAL 119X38MM 12VDC WIRE |
77 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 11.76 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
