DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

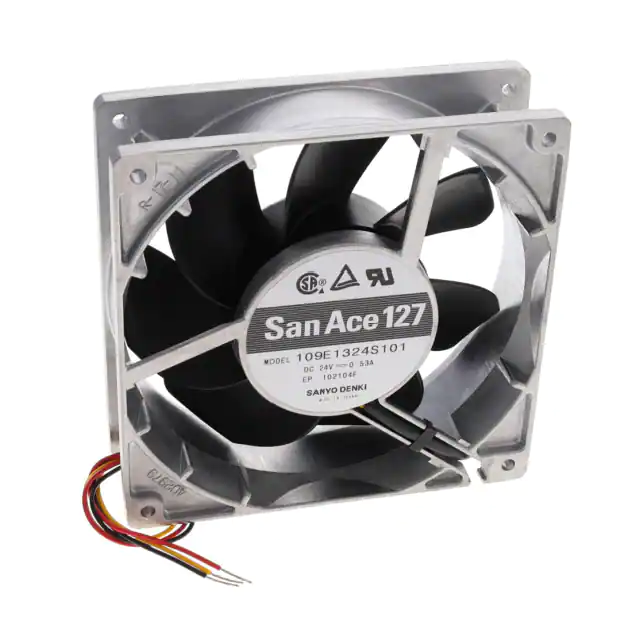

109E1324S101FAN AXIAL 127X38MM 24VDC WIRE |
19 |
|
Datasheet |
 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 12.7 W | 3450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
9LG1424A5D001FAN AXIAL 140X51MM 24VDC WIRE |
7 |
|
Datasheet |
|
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 29.1 W | 5700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|

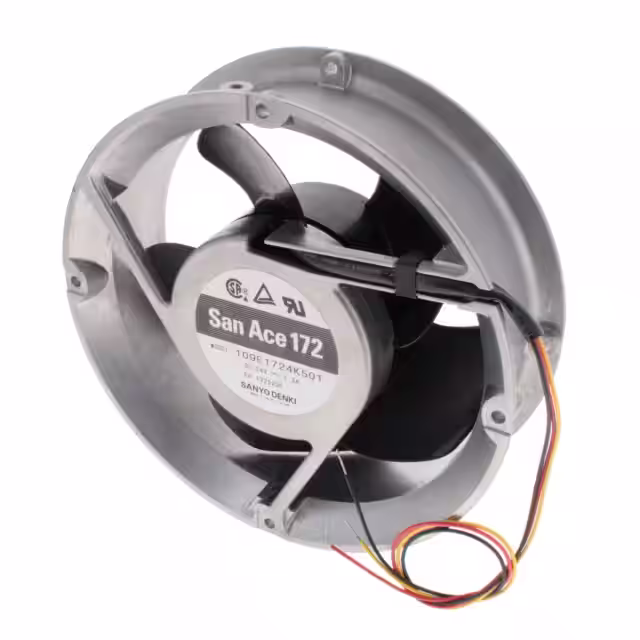

109E1724K501FAN AXIAL 172X51MM 24VDC WIRE |
17 |
|
Datasheet |
|
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 31.2 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

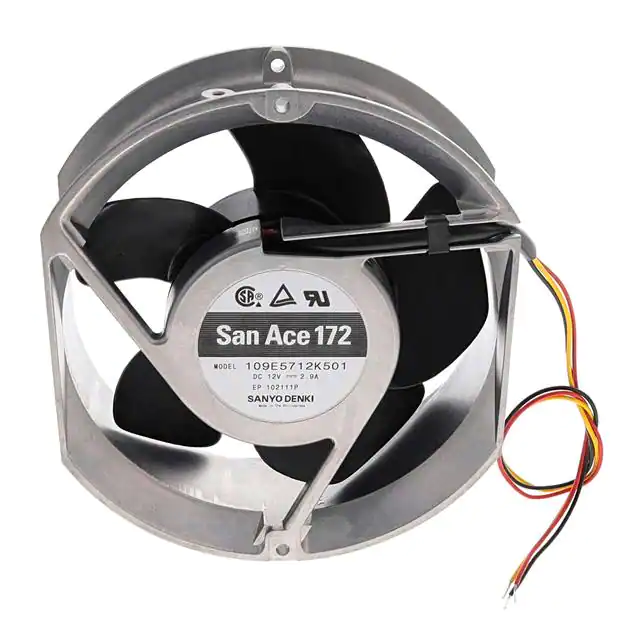

109E5712K501FAN AXIAL 172X51MM 12VDC WIRE |
15 |
|
Datasheet |
|
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 34.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
9LG1424P1M001FAN AXIAL 140X38MM 24VDC WIRE |
21 |
|
Datasheet |
|
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|
|
9LG1412P1M001FAN AXIAL 140X38MM 12VDC WIRE |
16 |
|
Datasheet |
|
San Ace 140L | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|

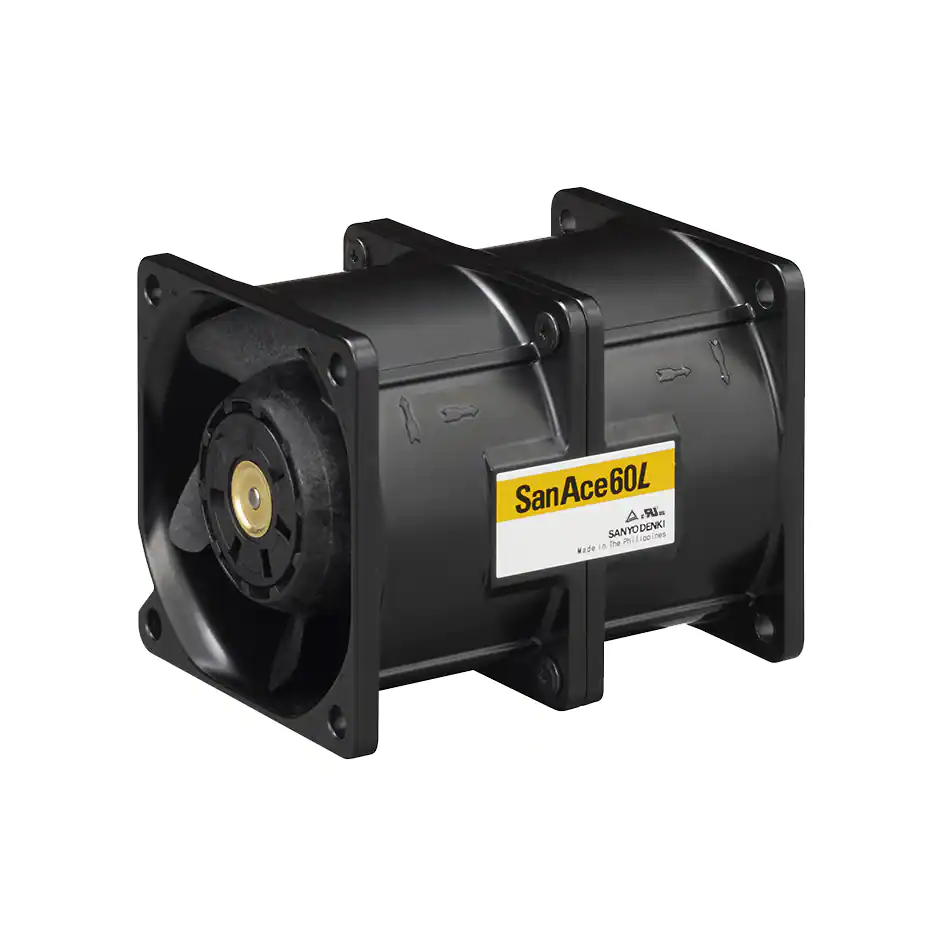

9CRLA0612P0G001FAN AXIAL DUAL 60X76MM 12VDC |
16 |
|
Datasheet |
|
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 74.1 CFM (2.07m³/min) | 5.620 in H2O (1400.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 36 W | 16500 Front, 17800 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.684 lb (310.26 g) |
|

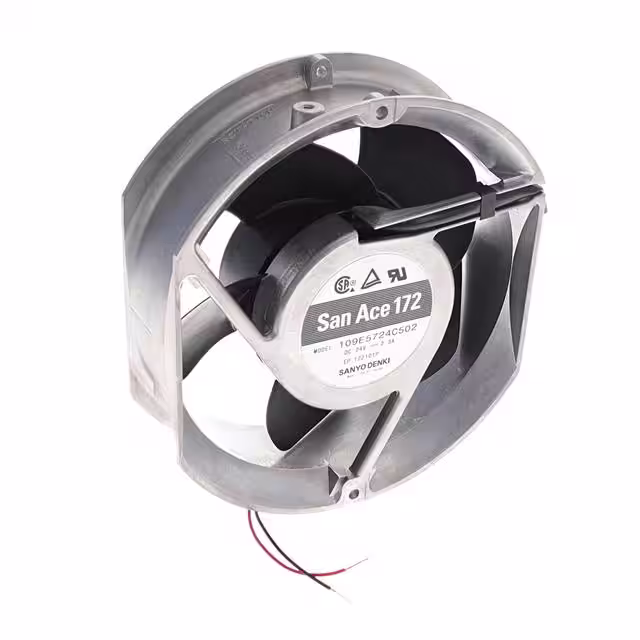

109E5724C502FAN AXIAL 172X51MM 24VDC WIRE |
8 |
|
Datasheet |
|
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 55.2 W | 4800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|

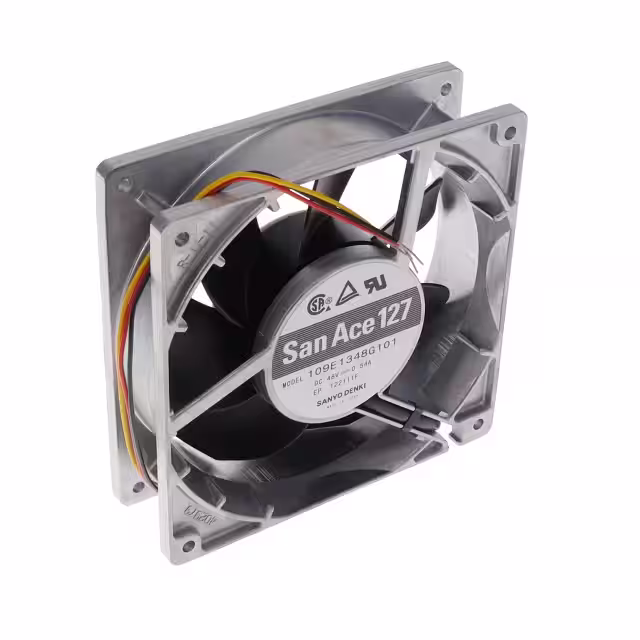

109E1348G101FAN AXIAL 127X38MM 48VDC WIRE |
20 |
|
Datasheet |
|
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 200.0 CFM (5.60m³/min) | 0.867 in H2O (216.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 57.0dB(A) | 25.9 W | 4550 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
9WL1424P1M001FAN AXIAL 140X38MM 24VDC WIRE |
14 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
W2G107-AD03-02FAN AXIAL 119X38MM 24VDC TERM |
17 |
|
Datasheet |
|
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.3 W | 2800 RPM | 2 Terminals | IP22 | -13 ~ 162°F (-25 ~ 72°C) | EAC, UL | - |
|
|
9WL1448P1A001FAN AXIAL 140X38MM 48VDC WIRE |
17 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 282.0 CFM (7.90m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 44.16 W | 6900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
OD180APL-24HBIP68FAN AXIAL 180X65MM 24VDC WIRE |
17 |
|
Datasheet |
|
OD180APL-IP68 | Box | Active | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 60.2 W | 3375 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD180APL-12HBIP69KFAN AXIAL 180X65MM 12VDC WIRE |
25 |
|
Datasheet |
|
OD180APL-IP69K | Box | Active | 12VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.4 W | 3375 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD254AP-12HBFAN AXIAL 254X89MM 12VDC WIRE |
8 |
|
Datasheet |
|
OD254 | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 60.0dB | 65 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
OD254AP-48HB10AFAN AXIAL 254X89MM 48VDC WIRE |
6 |
|
Datasheet |
|
OD254 | Bulk | Active | 48VDC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.0dB | 62 W | 2500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD254AP-12HB10AFAN AXIAL 254X89MM 12VDC WIRE |
25 |
|
Datasheet |
|
OD254 | Bulk | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 60.0dB | 65 W | 2400 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
9W2TN24P1H001FAN IMP MTRZD 150X35MM 24VDC |
6 |
|
Datasheet |
|
San Ace 150W | Box | Active | 24VDC | Round - 150mm Dia | 35.00mm | 135.0 CFM (3.78m³/min) | 1.578 in H2O (393.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 15.4 W | 3800 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.86 lb (390.09 g) |
|
OD254AP-24HBIP68FAN IMP MTRZD 254X89MM 24VDC |
13 |
|
Datasheet |
|
OD254AP-IP68 | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
MSI2577H24B1+7-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
9 |
|
Datasheet |
|
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 76.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 4.5 lbs (2 kg) |
