DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

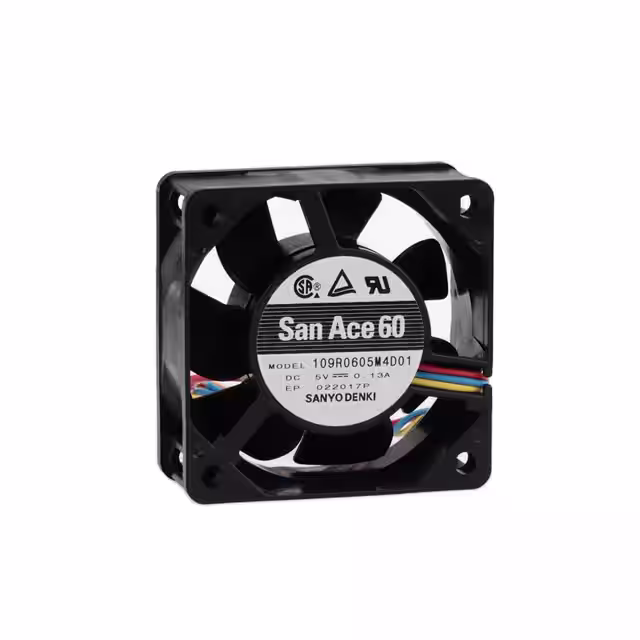

109R0605M4D01FAN AXIAL 60X25MM BALL 5VDC WIRE |
73 |
|
Datasheet |
 |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 650 mW | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0624H4011FAN AXIAL 60X25MM 24VDC WIRE |
53 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
E1225M24BT-FSRFAN AXIAL 120X25MM 24VDC WIRE |
46 |
|
Datasheet |
|
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 67.0 CFM (1.88m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
109R0805F4011FAN AXIAL 80X25MM BALL 5VDC WIRE |
86 |
|
Datasheet |
|
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.25 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0812F4011FAN AXIAL 80X25MM 12VDC WIRE |
39 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.32 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
MR9232E12B-FSRFAN AXIAL 92X32MM 12VDC WIRE |
37 |
|
Datasheet |
|
MR9232 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 96.0 CFM (2.69m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 52.8dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|
|
MR9232M24B-FSRFAN AXIAL 92X32MM 24VDC WIRE |
22 |
|
Datasheet |
|
MR9232 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 74.0 CFM (2.07m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 48.8dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.331 lb (150.14 g) |
|

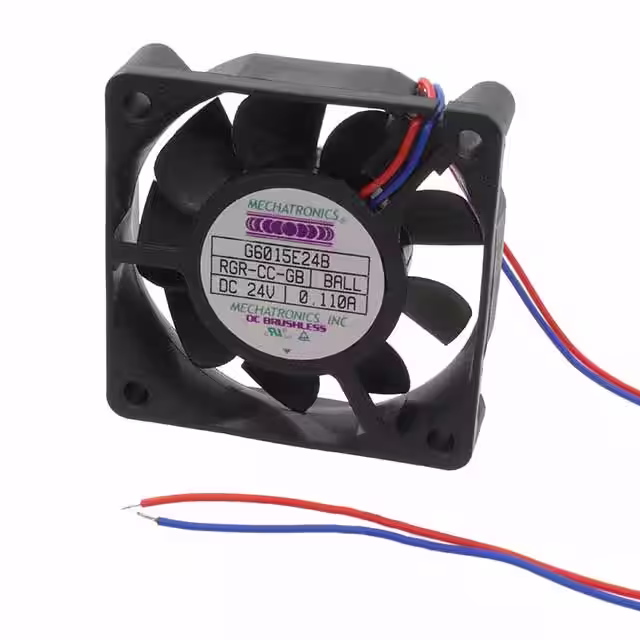

G6015E24B-RGR-CC-GBFAN AXIAL 60X15.3MM 24VDC WIRE |
83 |
|
Datasheet |
|
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 21.0 CFM (0.588m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 5200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
DC0402812U2B-2T0FAN AXIAL 40X28MM 12VDC WIRE |
41 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 7.68 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

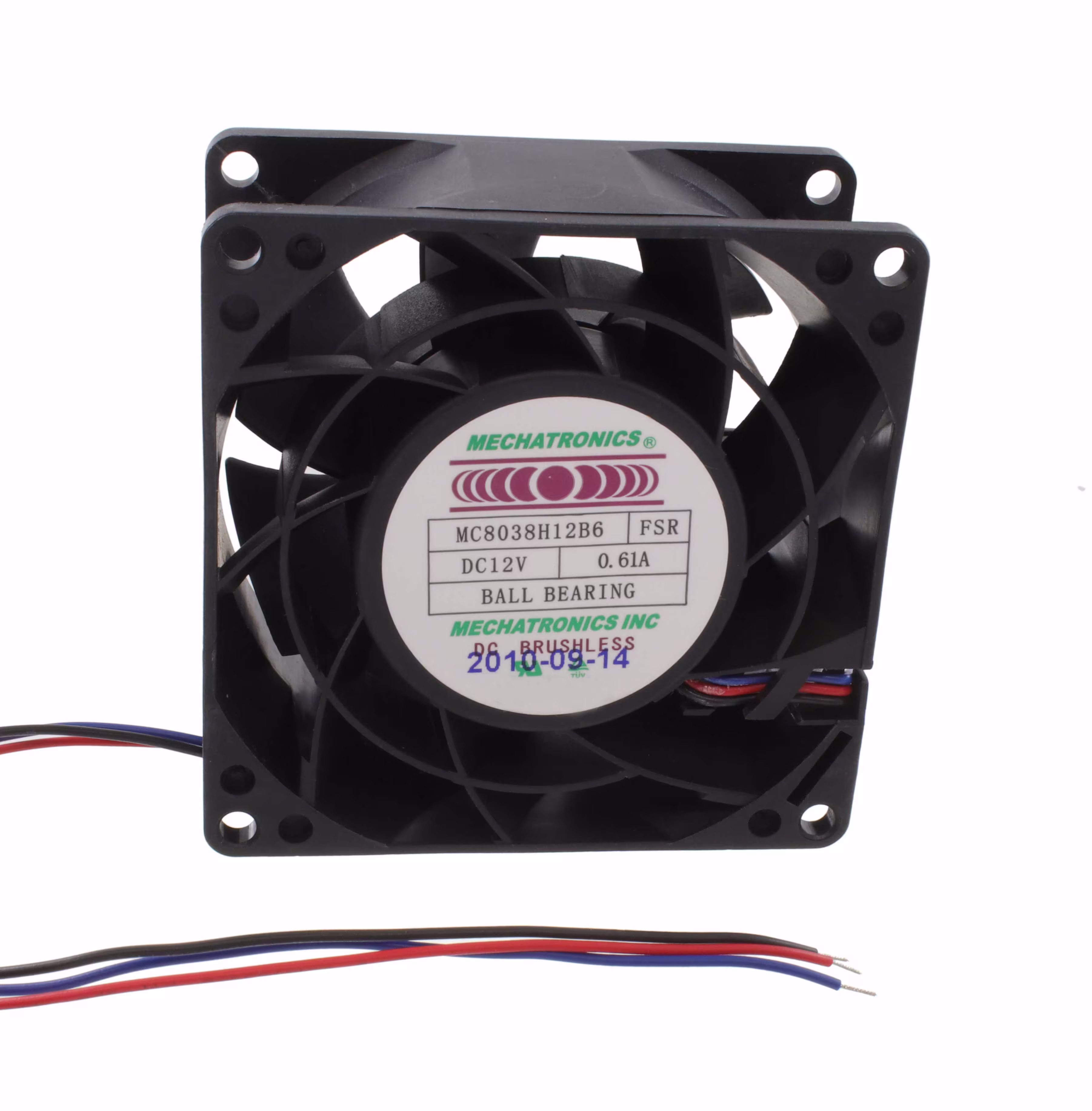

MC8038H12B6-FSR-PCFAN AXIAL 80X38MM 12VDC WIRE |
69 |
|
Datasheet |
|
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Parylene Coating, PWM Control, Thermal Overload Protector (TOP) | 48.2dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|

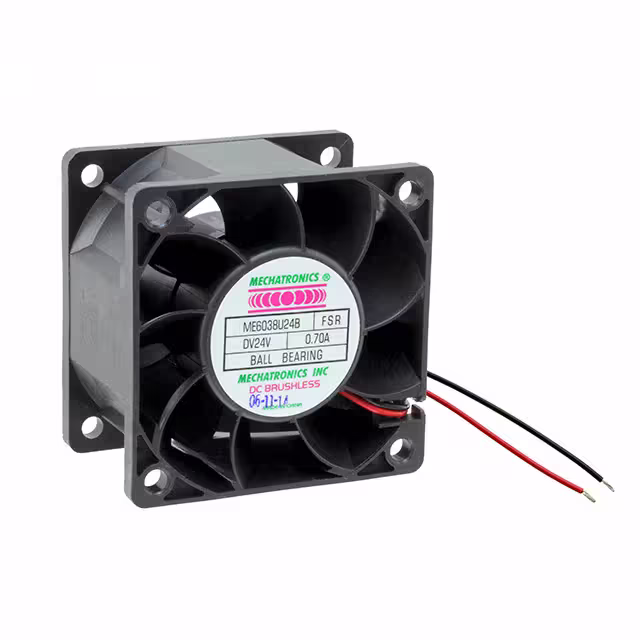

ME6038U24B-FSRFAN AXIAL 60X38MM 24VDC WIRE |
65 |
|
Datasheet |
|
ME6038 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 61.1 CFM (1.71m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 65.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.23 lb (104.33 g) |
|
MC8038E12B-FSRFAN AXIAL 80X38MM 12VDC WIRE |
21 |
|
Datasheet |
|
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 81.5 CFM (2.28m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 52.1dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
|
109R0624F401FAN AXIAL 60X25MM 24VDC WIRE |
36 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.2 W | 3200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
09225VA-12Q-EA-00FAN AXIAL 92X25MM 12VDC WIRE |
86 |
|
Datasheet |
|
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 8.64 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0812G4021FAN AXIAL 80X25MM 12VDC WIRE |
47 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.44 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
9RA0924F40011FAN AXIAL 92X25MM 24VDC WIRE |
81 |
|
Datasheet |
|
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 43.1 CFM (1.21m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0848S40011FAN AXIAL 80X25MM 48VDC WIRE |
34 |
|
Datasheet |
|
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 38.4 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
OD9225-12HB02AFAN AXIAL 92.5X25MM 12VDC WIRE |
38 |
|
Datasheet |
|
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 60.2 CFM (1.69m³/min) | 0.025 in H2O (6.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB | - | 3325 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
9S1212L4D011FAN AXIAL 119X25MM 12VDC WIRE |
38 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 48.1 CFM (1.35m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 17.0dB(A) | 960 mW | 1500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
F6025X12B1-RHR-EMFAN AXIAL 60X25MM 12VDC WIRE |
63 |
|
Datasheet |
|
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
