DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG1412M5D001FAN AXIAL 140X51MM 12VDC WIRE |
9 |
|
Datasheet |
 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 5.16 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1424H5002FAN AXIAL 140X51MM 24VDC WIRE |
4 |
|
Datasheet |
|
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 13.2 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1424M5002FAN AXIAL 140X51MM 24VDC WIRE |
2 |
|
Datasheet |
|
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 5.52 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1424M5D001FAN AXIAL 140X51MM 24VDC WIRE |
5 |
|
Datasheet |
|
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 5.52 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1412P5G001FAN AXIAL 140X51MM 12VDC WIRE |
10 |
|
Datasheet |
|
San Ace 140L | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448M5002FAN AXIAL 140X51MM 48VDC WIRE |
13 |
|
Datasheet |
|
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 7.2 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448H5002FAN AXIAL 140X51MM 48VDC WIRE |
10 |
|
Datasheet |
|
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | - | 14.9 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448H5001FAN AXIAL 140X51MM 48VDC WIRE |
12 |
|
Datasheet |
|
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 14.9 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
9WL1412P1M001FAN AXIAL 140X38MM 12VDC WIRE |
12 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
|
9WL1448P1H001FAN AXIAL 140X38MM 48VDC WIRE |
5 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.16 W | 5200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
OD180APL-12HBIP68FAN AXIAL 180X65MM 12VDC WIRE |
18 |
|
Datasheet |
|
OD180APL-IP68 | Box | Active | 12VDC | Square - 180mm L x 180mm H | 65.00mm | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 50.4 W | 3375 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

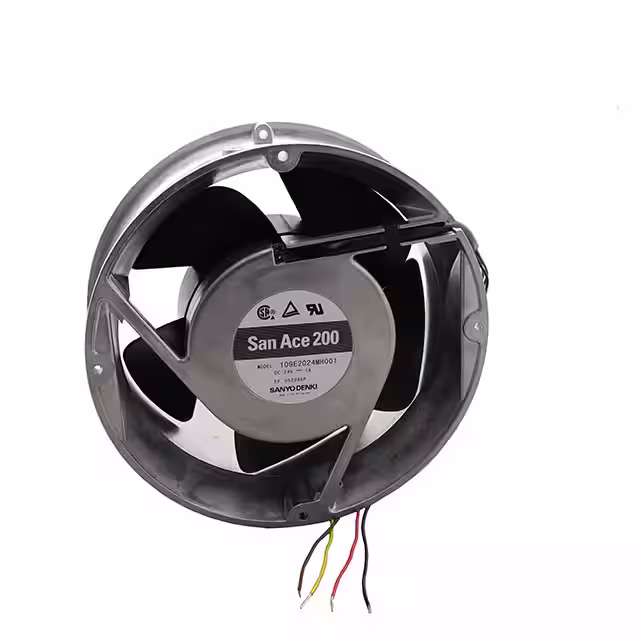

109E2024MH001FAN AXIAL 200X70MM 24VDC WIRE |
23 |
|
Datasheet |
|
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 70.00mm | 289.5 CFM (8.11m³/min) | 0.771 in H2O (192.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 24 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UR | 3.9 lbs (1.8 kg) |
|
109E1724H5D01FAN AXIAL 172X51MM 24VDC WIRE |
14 |
|
Datasheet |
|
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
RG160-28/12N/12FAN BLOWER CF 220X56MM 12VDC |
24 |
|
Datasheet |
|
RG160N | Bulk | Active | 12VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | 66.0dB(A) | 21 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 3.1 lbs (1.4 kg) |
|
|
6424/12HFAN AXIAL 171.5X50.8MM 24VDC |
6 |
|
Datasheet |
|
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 283.0 CFM (7.92m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 63.0dB(A) | 26 W | 4000 RPM | 3 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | - |
|

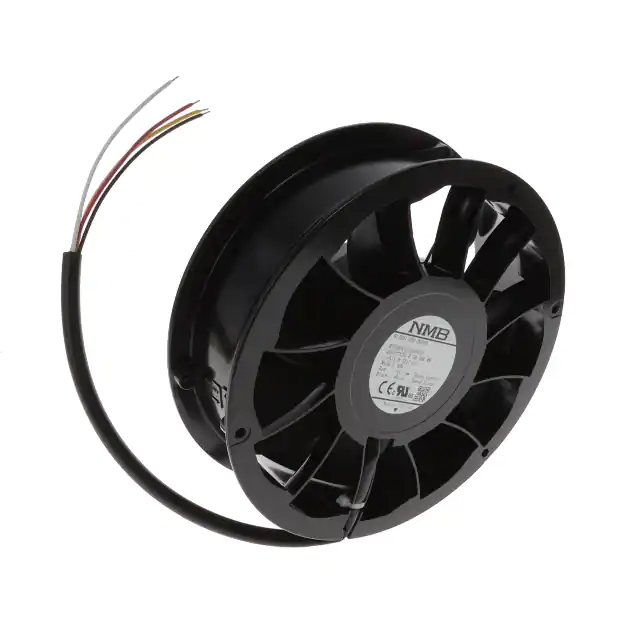

R172H1-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
9 |
|
Datasheet |
|
R172 | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 473.0 CFM (13.24m³/min) | 3.190 in H2O (794.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 101 W | 6500 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
OD254AP-48HBIP68FAN IMP MTRZD 254X89MM 48VDC |
15 |
|
Datasheet |
|
OD254AP-IP68 | Box | Active | 48VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

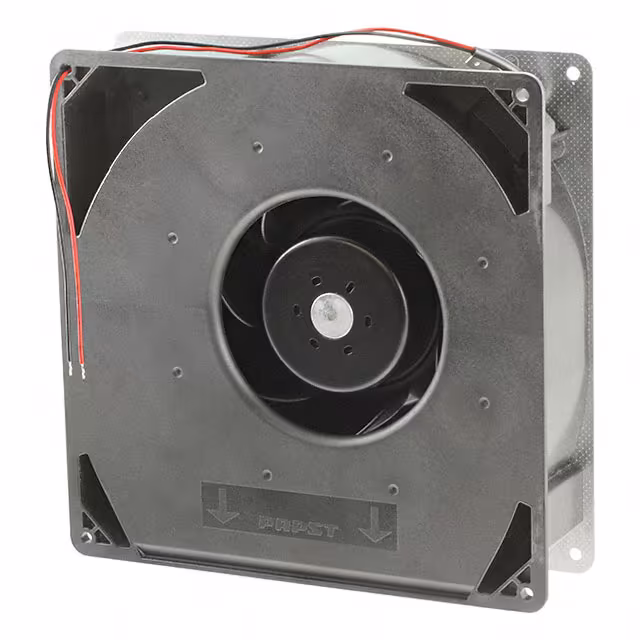

RG160-28/18NUFAN BLOWER CF 220X56MM 48VDC |
24 |
|
Datasheet |
|
RG160NU | Bulk | Active | 48VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | - | - | 20 W | 2850 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 3 lbs (1.4 kg) |
|
OD254AP-12HBIP69KFAN IMP MTRZD 254X89MM 12VDC |
19 |
|
Datasheet |
|
OD254AP-IP69K | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

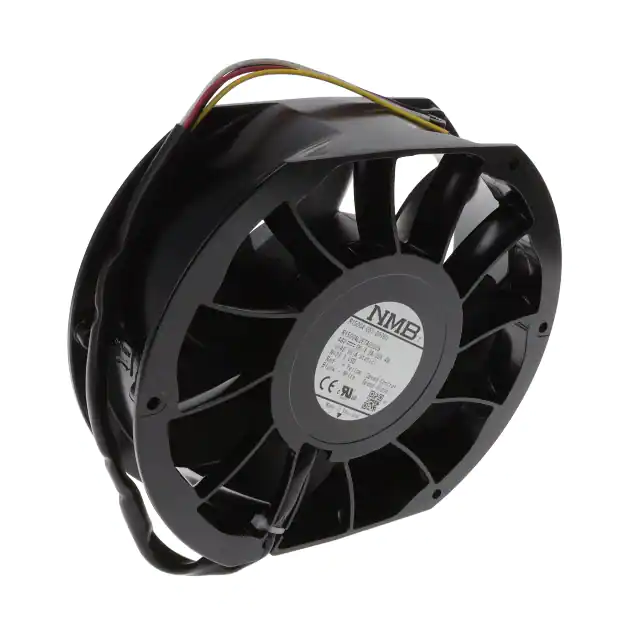

R150G4-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
10 |
|
Datasheet |
|
R150 | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 447.0 CFM (12.52m³/min) | 3.000 in H2O (747.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 81.6 W | 6000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 122°F (-30 ~ 50°C) | - | - |
