DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9RA1212E1D001120X38MM 12VDC LCKRTRSNS |
42 |
|
Datasheet |
 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 5.6 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1212H10021120X38MM 12VDC RBLS |
40 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
9WF0624H6D01FAN AXIAL 60X20MM 24VDC WIRE |
44 |
|
Datasheet |
|
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 24.3 CFM (0.680m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 3.6 W | 6600 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.177 lb (80.29 g) |
|
FFB0812UHEFAN AXIAL 80X38MM 12VDC WIRE |
53 |
|
Datasheet |
|
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.2dB(A) | 18 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
PFB0912DHEFAN AXIAL 92X38MM 12VDC WIRE |
96 |
|
Datasheet |
|
PFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 37.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
|
9GV0648P1H18FAN 48VDC 60X38MM TACH/PWM CONN |
90 |
|
- |
|
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | - | 14500 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9G1224H1H01120X38MM 24V,HIGH PERF. DC LOW S |
18 |
|
- |
|
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | - | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PFB0824DHEP0AXIAL 80X38 24VPWM |
80 |
|
Datasheet |
|
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 30.24 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, VDE | - |
|
|
9RA0924P1G001FAN AXIAL 92X38MM 24VDC TACH PWM |
22 |
|
Datasheet |
|
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 11.5 W | 5800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0912P1G001FAN AXIAL 92X38MM 12VDC TACH PWM |
18 |
|
Datasheet |
|
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 11.5 W | 5800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

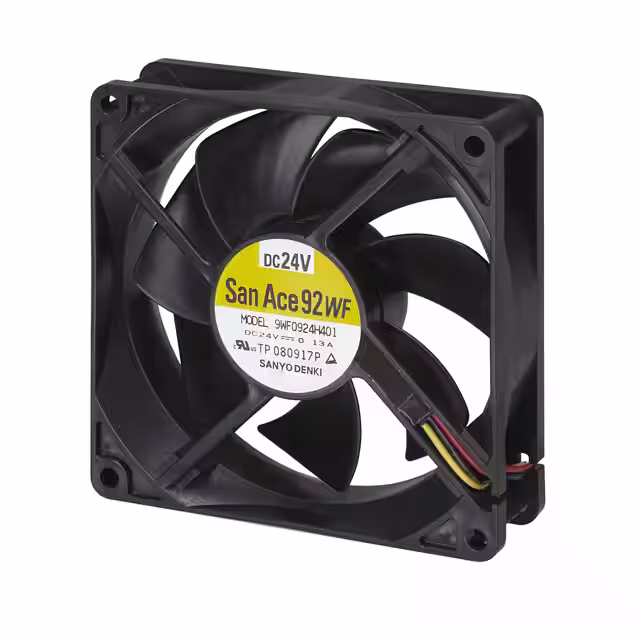

9WF0924H401FAN AXIAL 92X25MM 24VDC WIRE |
22 |
|
Datasheet |
|
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB(A) | 3.12 W | 3900 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.264 lb (119.75 g) |
|
|
9GV0824G1D0180X38MM 24V,GUIDE VANE DC LCKRTR |
9 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 65.0dB(A) | - | 10200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
FFB0848SHE-TP36FAN AXIAL 80X38MM 48VDC WIRE |
81 |
|
Datasheet |
|
FFB | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.5dB(A) | 7.68 W | 4900 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
PFB0924DHEP0AXIAL 92X38 24V PWM |
50 |
|
Datasheet |
|
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 34.8 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
9RA1224E1001120X38MM 24VDC TACH |
37 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 5.8 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224G1D001120X38MM 24VDC LCKRTRSNS |
37 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA1212G10011120X38MM 12VDC RBLS TACH |
37 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.4 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1224G10011120X38MM 24VDC RBLS TACH |
34 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.4 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1212E1D0011120X38MM 12VDC RBLS LCKRTRSNS |
28 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120.1mm L x 120.1mm H | 120.0mm | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 4.92 W | 4000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9CRA0412P5K03FAN AXIAL DUAL 40X56MM 12VDC |
93 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 33.5 CFM (0.938m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 21.6 W | 17000 Front, 13000 Rear | 4 Wire Leads per Fan | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
