DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

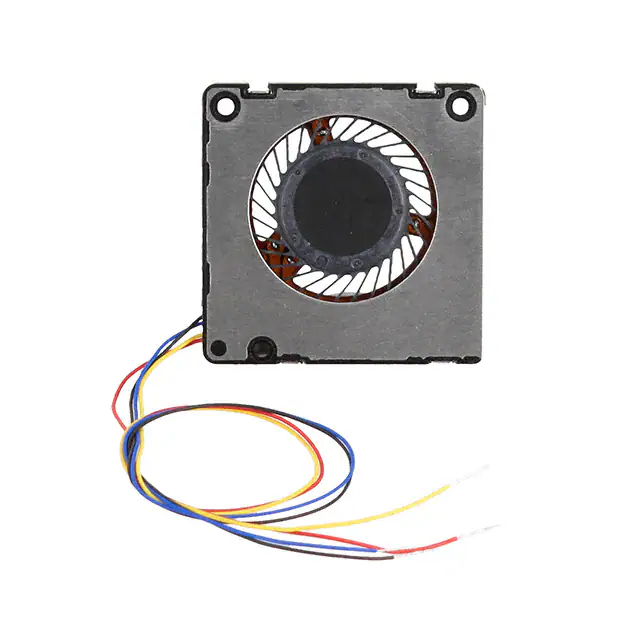

DB0300305H1A-BT0FAN BLOWER 30X3.2MM 5VDC WIRE Wakefield-Vette |
1,253 |
|
Datasheet |
 |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.20mm | 0.696 CFM (0.019m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 34.1dB(A) | 500 mW | 9500 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.001 lb (0.45 g) |
|

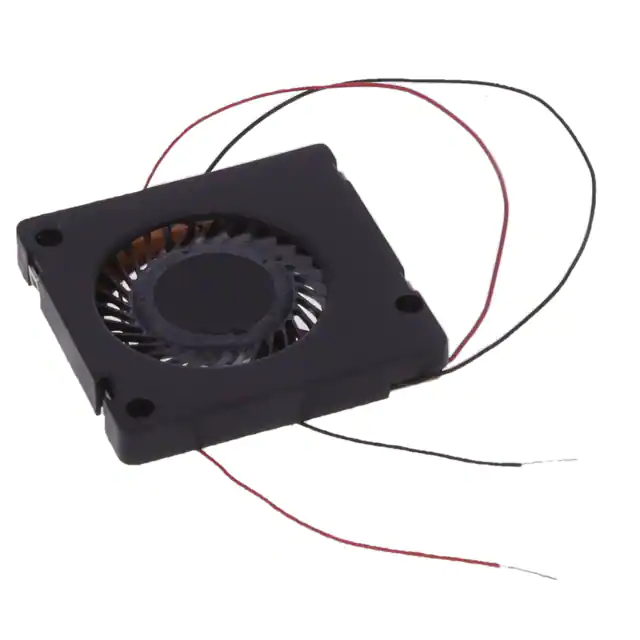

DB0300405H1A-2T0FAN BLOWER 30X4MM BALL 5VDC WIRE Wakefield-Vette |
1,432 |
|
Datasheet |
|
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.00mm | 0.760 CFM (0.021m³/min) | 0.346 in H2O (86.2 Pa) | Ball | Blower | - | 31.3dB(A) | 500 mW | 9500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.001 lb (0.45 g) |
|

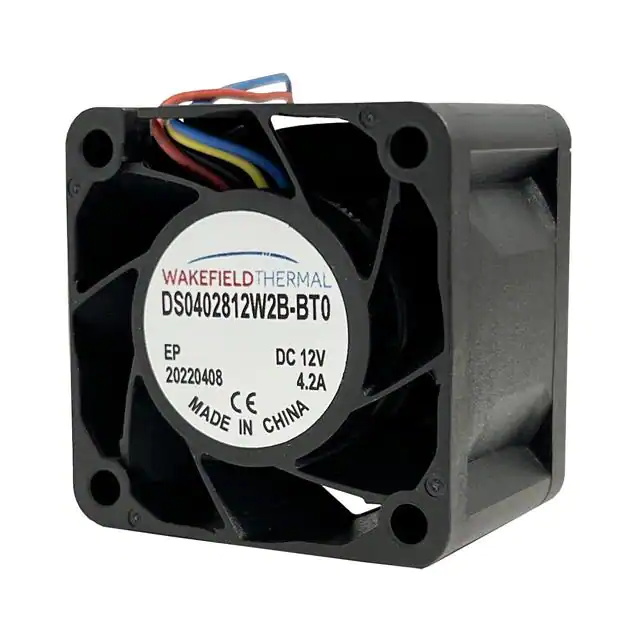

DS0402812W2B-BT0FAN AXIAL 40X28MM 12VDC WIRE Wakefield-Vette |
264 |
|
Datasheet |
|
DS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 41.2 CFM (1.15m³/min) | 8.112 in H2O (2020.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 50.4 W | 35000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0601512U2B-2T0FAN BLOWER 60X15.5MM 12VDC WIRE Wakefield-Vette |
553 |
|
Datasheet |
|
DB | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.50mm | 4.6 CFM (0.129m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Blower | Locked Rotor Protection | 45.0dB(A) | 1.56 W | 6500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|

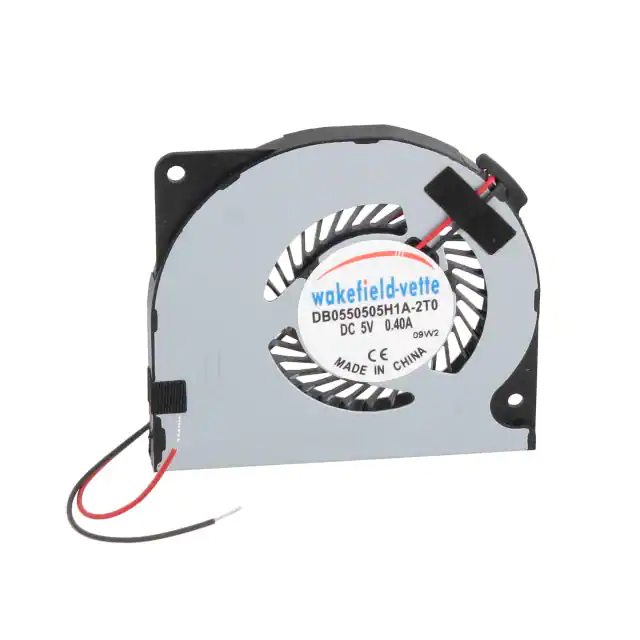

DB0550505H1A-2T0FAN BLOWER 49.5X5.25MM 5VDC Wakefield-Vette |
605 |
|
Datasheet |
|
Slim-Line | Bulk | Active | 5VDC | Rectangular/Rounded - 55mm L x 50mm H | 5.25mm | 1.3 CFM (0.036m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Blower | - | 21.2dB(A) | 700 mW | 3100 RPM | 2 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.038 lb (17.24 g) |
|

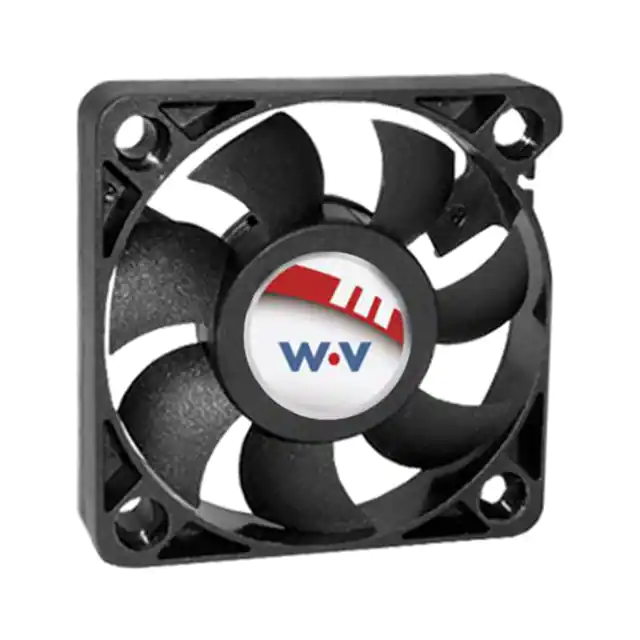

DC0501012H2B-2T0FAN AXIAL 50X10MM 12VDC WIRE Wakefield-Vette |
315 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.2 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

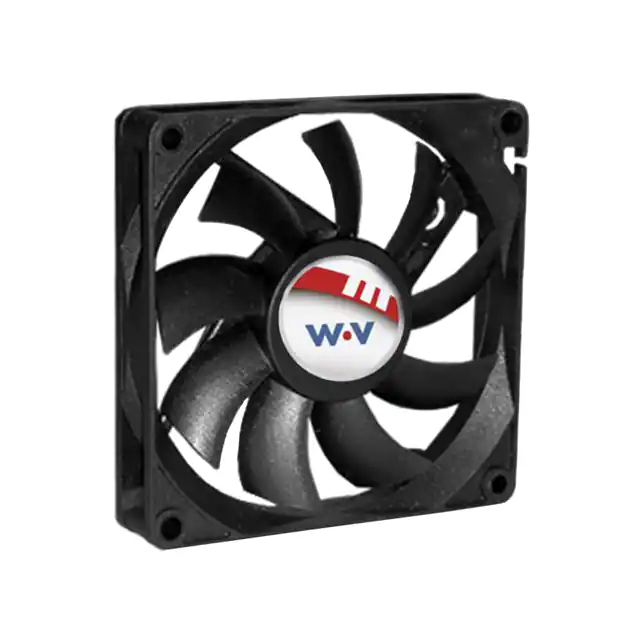

DC0801512U2B-2T0FAN AXIAL 80X15MM 12VDC WIRE Wakefield-Vette |
643 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

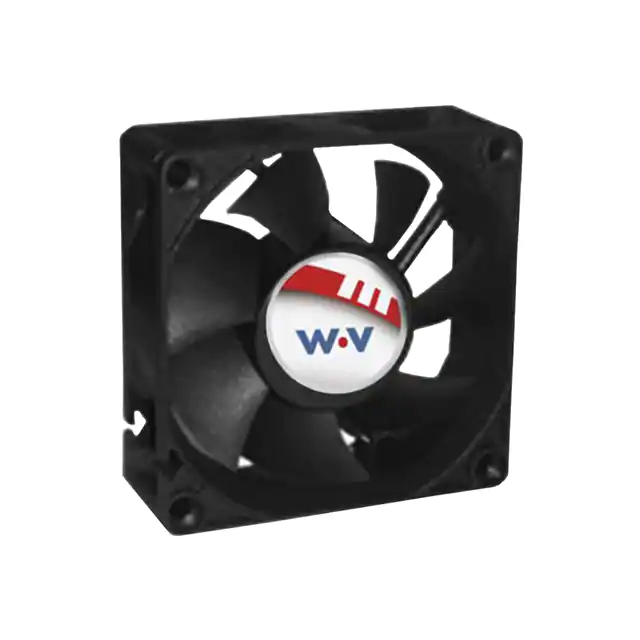

DC0702512U2B-2T0FAN AXIAL 70X25MM 12VDC WIRE Wakefield-Vette |
127 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 3.24 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401024M2B-2T0FAN 40X10MM 24VDC Wakefield-Vette |
484 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 480 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024J2B-2T0FAN 50X10MM 24VDC Wakefield-Vette |
375 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 1.2 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
