DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4028-24HBXEFAN AXIAL 40X28MM 24VDC WIRE |
4,694 |
|
Datasheet |
 |
OD4028 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 31.5 CFM (0.882m³/min) | 3.000 in H2O (747.3 Pa) | Ball | Tubeaxial | Auto Restart | 64.2dB(A) | 10.8 W | 22750 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9S0824L4011FAN AXIAL 80X25MM 24VDC WIRE |
3,277 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 16.0dB(A) | 960 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
FFB0412EN-00Y2EFAN AXIAL 40X28MM 12VDC WIRE |
3,299 |
|
Datasheet |
|
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 32.9 CFM (0.921m³/min) | 4.440 in H2O (1105.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 17.4 W | 25000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.113 lb (51.26 g) |
|
PF40281BX-1000U-S9HFAN AXIAL 40X28MM 12VDC WIRE |
4,663 |
|
Datasheet |
|
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 11.4 W | 22000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
109R0824S4D01FAN AXIAL 80X25MM 24VDC WIRE |
2,420 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0848K4021FAN AXIAL 80X25MM 48VDC WIRE |
2,109 |
|
Datasheet |
|
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 55.1 CFM (1.54m³/min) | 0.355 in H2O (88.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 4.8 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

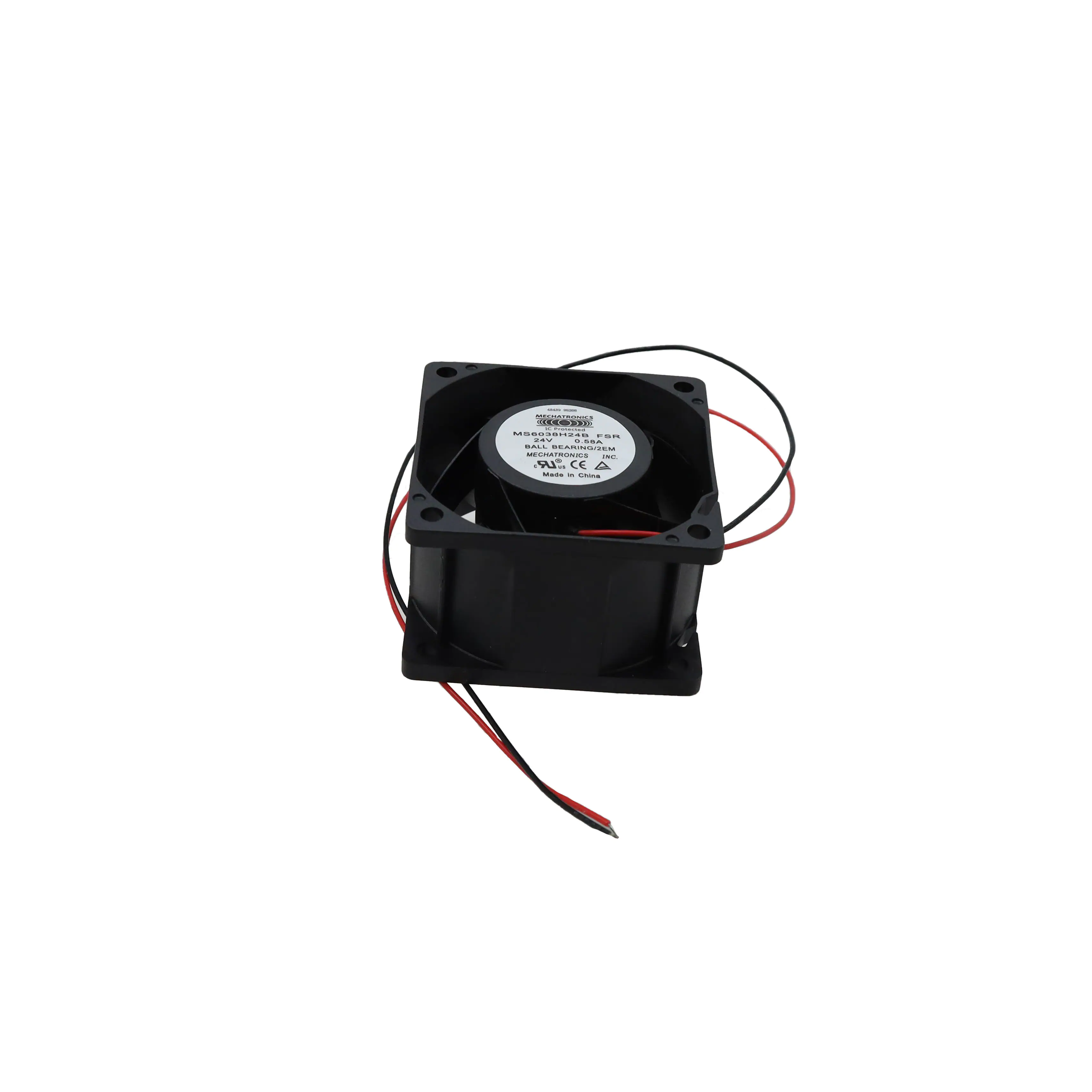

MS6038H24B-FSR-2EMFAN AXIAL 60X38MM 24VDC WIRE |
4,282 |
|
Datasheet |
|
MS6038-S | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 59.0dB(A) | - | 11000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|
9GA0812P4G001FAN AXIAL 80X25MM 12VDC WIRE |
4,089 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 67.4 CFM (1.89m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 5.76 W | 6800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
AFB1212SHFAN AXIAL 120X25.4MM 12VDC WIRE |
2,596 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.36 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
THA0412AD-TZW3FAN AXIAL 40X20MM 12VDC WIRE |
4,713 |
|
Datasheet |
|
THA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 20.6 CFM (0.577m³/min) | 1.385 in H2O (345.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 5.16 W | 15600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | 0.057 lb (25.85 g) |
|
FFB0412UHN-CF00FAN AXIAL 40X28MM 12VDC WIRE |
4,777 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 27.1 CFM (0.759m³/min) | 2.111 in H2O (525.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 7.8 W | 18500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.104 lb (47.17 g) |
|
9GAX0412P3S001FAN AXIAL 40X28MM 12VDC WIRE |
4,749 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.8 CFM (0.890m³/min) | 4.017 in H2O (1000.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 15.6 W | 25000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|

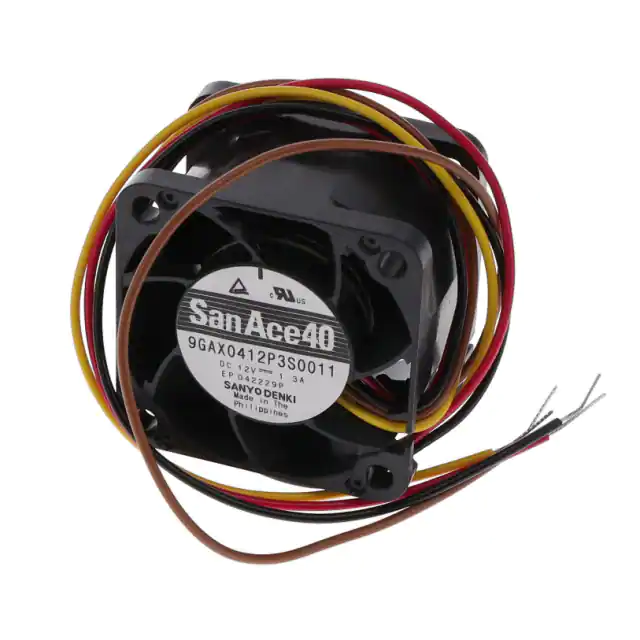

9GAX0412P3S0011FAN AXIAL 40X28MM 12VDC WIRE |
4,416 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.8 CFM (0.890m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 15.6 W | 25000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
|
PFB0412EN-EFAN AXIAL 40X28MM 12VDC WIRE |
2,830 |
|
Datasheet |
|
PFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 38.0 CFM (1.06m³/min) | 7.430 in H2O (1850.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.5dB(A) | 31.2 W | 32500 RPM | 4 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, cURus, TUV | - |
|
AFB0824GHEFAN AXIAL 80X38MM 24VDC WIRE |
4,902 |
|
Datasheet |
|
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 1.006 in H2O (250.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 15.6 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|
9GE0412P3J03FAN AXIAL 40X28MM 12VDC WIRE |
2,024 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.4 CFM (0.683m³/min) | 1.378 in H2O (343.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 7.8 W | 15000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.121 lb (54.88 g) |
|

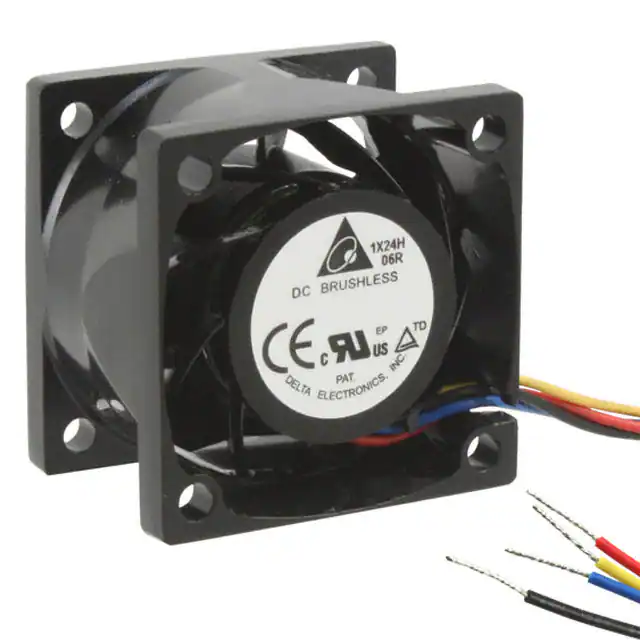

THA0412BNFAN AXIAL 40X28MM 12VDC WIRE |
2,408 |
|
Datasheet |
|
THA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.400 in H2O (597.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 10.68 W | 19000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.102 lb (46.27 g) |
|
|
9GA0824H7D001FAN AXIAL 80X15MM 24VDC WIRE |
3,969 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.4 CFM (0.879m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.2 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.144 lb (65.32 g) |
|
AFC0612DE-AF00FAN AXIAL 60X38MM 12VDC WIRE |
4,622 |
|
Datasheet |
|
AFC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.7 CFM (1.87m³/min) | 1.739 in H2O (433.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 18 W | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, TUV, UL | 0.258 lb (117.03 g) |
|
|
9WP0412H6001FAN AXIAL 40X20MM 12VDC WIRE |
3,206 |
|
Datasheet |
|
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.2 W | 8000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
