DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9RA1412P1G001140X38MM 12VDC LOW NOISE TACH PW |
2,028 |
|
Datasheet |
 |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 13.2 W | 4250 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9CRH0648P6G001FAN 48VDC 60X56MM TACH/PWM |
1 |
|
Datasheet |
|
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 56.00mm | 91.8 CFM (2.57m³/min) | 13.449 in H2O (3350.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 67.2 W | 26100 Front, 26800 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9LG0812P4G001FAN AXIAL 80X25MM 12VDC WIRE |
3,435 |
|
Datasheet |
|
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 5500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
17001175AFAN AXIAL 48VDC GLD48K3E2X-E3 |
3,094 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 175.0 CFM (4.90m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.9dB(A) | 22.6 W | 3900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
9LG1224P1H001FAN AXIAL 119X38MM 24VDC WIRE |
3,163 |
|
Datasheet |
|
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 176.6 CFM (4.94m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 16.8 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
9WV1224P1J601FAN AXIAL 120X38MM 24VDC WIRE |
4,534 |
|
Datasheet |
|
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.97 lb (439.98 g) |
|
|
THD0812VE-00FAN AXIAL 80X80MM 12VDC WIRE |
2,181 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 195.0 CFM (5.52m³/min) | 7.480 in H2O (1863.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.5dB(A) | 180 W | 15000 Front, 15000 Rear | 4 Wire Leads per Fan | IP51 - Dust Protected | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9LG1424H5D001FAN AXIAL 140X51MM 24VDC WIRE |
1 |
|
Datasheet |
|
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | - | 13.2 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
9WL1424P1H001FAN AXIAL 140X38MM 24VDC WIRE |
4,300 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.4 W | 5200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
THD1348HEFAN AXIAL 134X38MM 48VDC WIRE |
3,961 |
|
Datasheet |
|
THD - Bionic Blade | Bulk | Active | 48VDC | Square - 134mm L x 134mm H | 38.00mm | 490.0 CFM (13.72m³/min) | 7.100 in H2O (1768.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 240 W | 12500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.6 lbs (725.7 g) |
|
FFB1424VHG-EPFAN AXIAL 139.7X50.8MM 24VDC |
4,905 |
|
Datasheet |
|
FFB | Box | Active | 24VDC | Square - 139.7mm L x 139.7mm H | 50.80mm | 252.1 CFM (7.06m³/min) | 0.644 in H2O (160.4 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 24 W | 3200 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.5 lbs (670.0 g) |
|
|
9WL1424P5S001FAN AXIAL 140X51MM 24VDC WIRE |
4,642 |
|
Datasheet |
|
San Ace 140W | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
|
8315100157FAN AXIAL 171.5X50.8MM 24VDC |
3,497 |
|
Datasheet |
|
AxiForce | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 311.0 CFM (8.71m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 58 W | 6800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
F175H1-061-D0750FAN IMP MTRZD 175X69MM 48VDC |
4,558 |
|
Datasheet |
|
F175H | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | 610.0 CFM (17.08m³/min) | 4.190 in H2O (1046.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 182 W | 5400 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2 lbs (907.2 g) |
|
|
AUB0812VHB-AF00FAN AXIAL 80X15MM 12VDC WIRE |
4,299 |
|
Datasheet |
|
AUB | Box | Not For New Designs | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 42.7 CFM (1.20m³/min) | 0.193 in H2O (48.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.5dB(A) | 3 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UR, VDE | - |
|
|
ASB0305LA-DR00FAN AXIAL 30X10MM 5VDC WIRE |
2,821 |
|
Datasheet |
|
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | 500 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
ASB0312LA-DR00FAN AXIAL 30X10MM 12VDC WIRE |
2,209 |
|
Datasheet |
|
ASB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.131 in H2O (32.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | 600 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
CFM-6015V-130-213FAN AXIAL 60X15MM 12VDC WIRE |
3,579 |
|
Datasheet |
|
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.6 CFM (0.493m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 21.3dB(A) | 700 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.078 lb (35.38 g) |
|

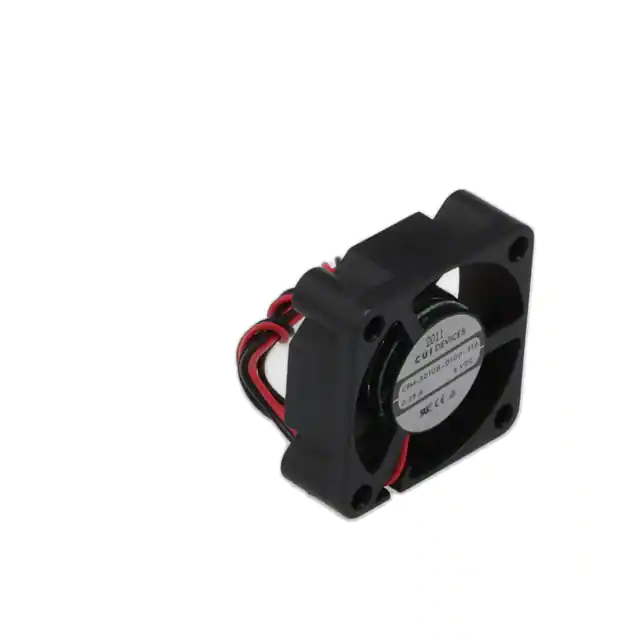

CFM-3010B-0100-316FAN AXIAL 30X10.5MM 5VDC WIRE |
3,269 |
|
Datasheet |
|
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 31.6dB(A) | 1.2 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
09225SA-12K-EA-D0FAN AXIAL 92X25MM 12VDC WIRE |
3,608 |
|
Datasheet |
|
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Auto Restart | 22.0dB | 840 mW | 2050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
