DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
09238RE-24P-GTD-0FAN AXIAL 92X38MM 24VDC WIRE |
3 |
|
Datasheet |
 |
09238RE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 141.3 CFM (3.96m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.0dB(A) | 22.08 W | 6700 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
4312NMFAN AXIAL 119X32MM 12VDC WIRE |
2,018 |
|
Datasheet |
|
4300N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 88.2 CFM (2.47m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.2 W | 2100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
9WG1212E101-EFAN AXIAL 120X38MM 12VDC WIRE |
2,456 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
4314/12FAN AXIAL 119X32MM 24VDC WIRE |
2 |
|
Datasheet |
|
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.0 CFM (2.80m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 5 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
9GA0824P2S0011FAN AXIAL 80X32MM 24VDC WIRE |
4,223 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 10.1 W | 9700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
9GV1248P4J01FAN AXIAL 119X25.4MM 48VDC WIRE |
2,749 |
|
Datasheet |
|
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 25.40mm | 180.0 CFM (5.04m³/min) | 1.015 in H2O (252.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 24 W | 5400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
412JHHUFAN AXIAL 40X25.4MM 12VDC WIRE |
2,075 |
|
Datasheet |
|
400JU | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 25.40mm | 14.1 CFM (0.395m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.2 W | 13000 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.111 lb (50.35 g) |
|
17250VA-24R-GA-00FAN AXIAL 172.7X50.8MM 24VDC |
3,127 |
|
Datasheet |
|
17250VA | Bulk | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | - | 62.0dB | 43.2 W | 4600 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | 2.1 lbs (952.5 g) |
|

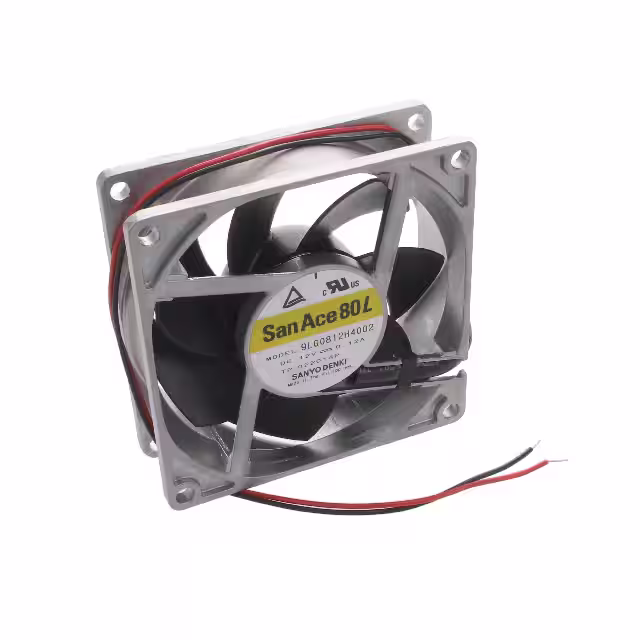

9LG0812H4002FAN AXIAL 80X25MM 12VDC WIRE |
4,412 |
|
Datasheet |
|
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.44 W | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
|
|
9WPA0824P4G0011FAN AXIAL 80X25.2MM 24VDC WIRE |
4,678 |
|
Datasheet |
|
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 81.8 CFM (2.29m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 8.52 W | 8250 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

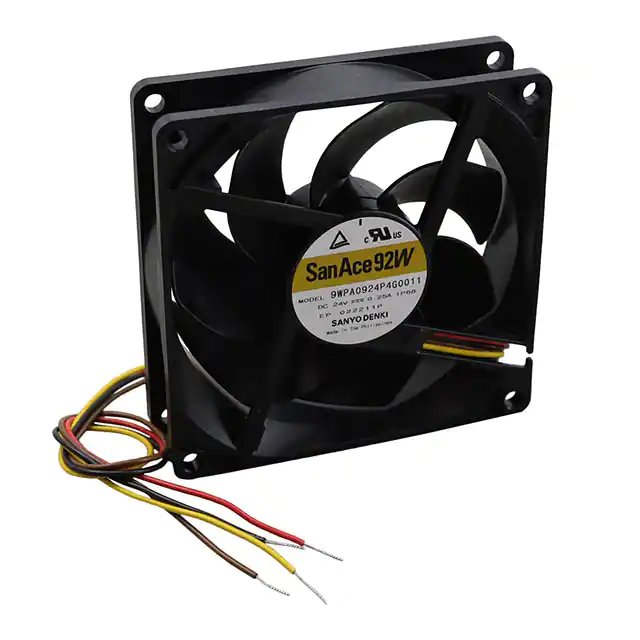

9WPA0924P4G0011FAN AXIAL 92X25.2MM 24VDC WIRE |
2,156 |
|
Datasheet |
|
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6 W | 5700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

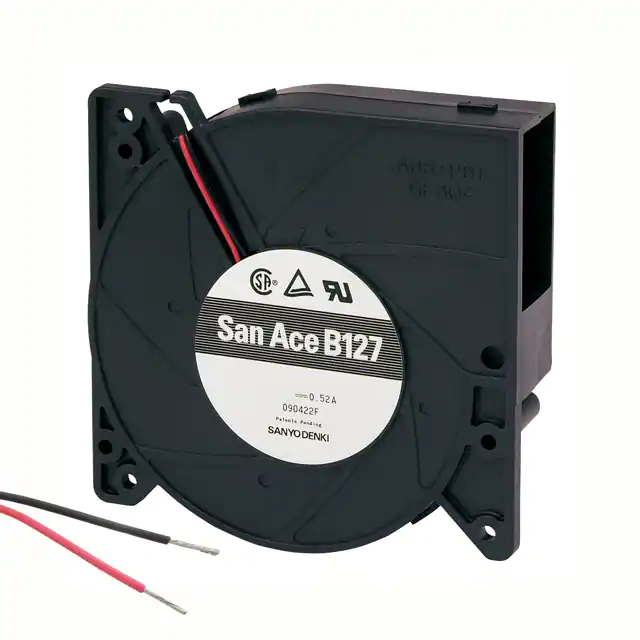

109BJ12HA2FAN BLOWER 126X32MM 12VDC WIRE |
3,741 |
|
Datasheet |
|
San Ace B127 | Box | Active | 12VDC | Square/Rounded - 126mm L x 127mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.826 in H2O (205.8 Pa) | Ball | Blower | Locked Rotor Protection | 46.0dB(A) | 6.24 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.639 lb (289.85 g) |
|
|
9GV1424P1S001FAN AXIAL 140X38MM 24VDC WIRE |
4,240 |
|
Datasheet |
|
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 272.0 CFM (7.62m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 37.2 W | 6650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.4 lbs (635.0 g) |
|
EFB1724VHG-T500FAN AXIAL 172X50.8MM 24VDC WIRE |
4,979 |
|
Datasheet |
|
EFB | Box | Active | 24VDC | Round - 172mm Dia | 50.80mm | 302.3 CFM (8.46m³/min) | 0.937 in H2O (233.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 23.28 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
9LG1224F1001FAN AXIAL 120X38MM 24VDC WIRE |
4,174 |
|
Datasheet |
|
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 4.56 W | - | 3 Wire Leads | - | - | - | - |
|

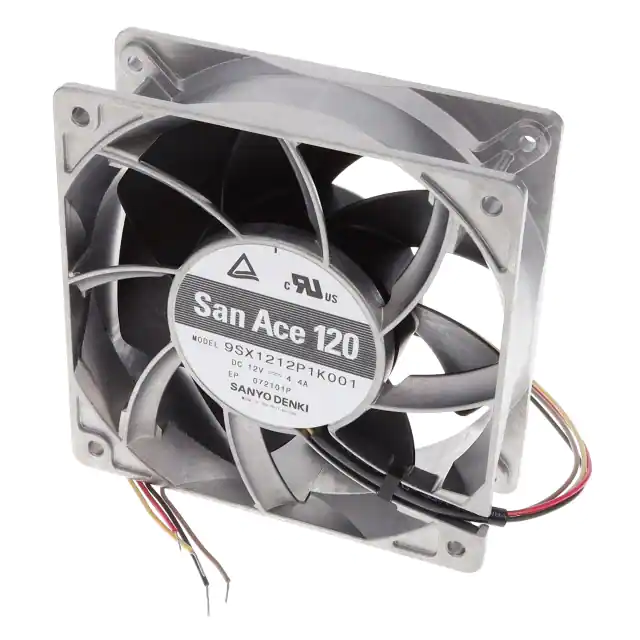

9SX1212P1K001FAN AXIAL 119X38MM 12VDC WIRE |
3,933 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 257.7 CFM (7.22m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 52.8 W | 7400 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.86 lb (390.09 g) |
|
9TJ24P0H61FAN IMP MTRZD 133X91MM 24VDC |
2,142 |
|
Datasheet |
|
San Ace C133 | Box | Active | 24VDC | Round - 133mm Dia | 91.00mm | 226.0 CFM (6.33m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 28.8 W | 4150 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.5 lbs (680.4 g) |
|

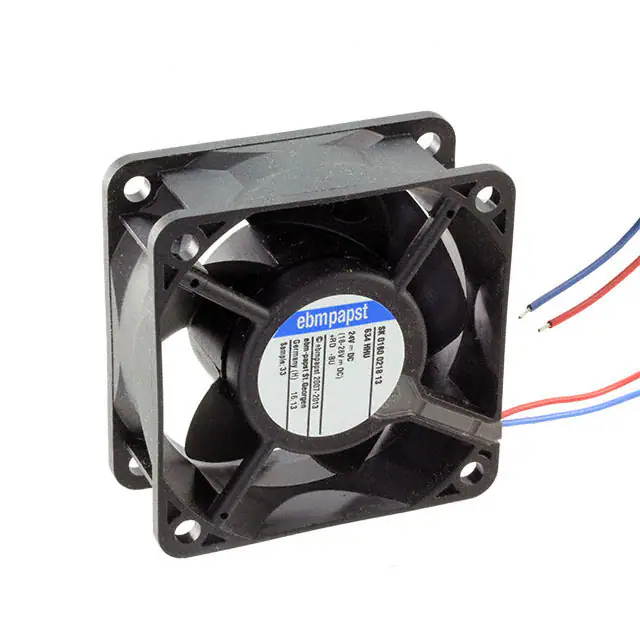

634HHUFAN AXIAL 60X25.4MM 24VDC WIRE |
2,910 |
|
Datasheet |
|
630U | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.2 W | 8500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.154 lb (69.85 g) |
|
9LG1424P5S001FAN AXIAL 140X51MM 24VDC WIRE |
3,122 |
|
Datasheet |
|
San Ace 140L | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
|
|
9LG1448P5G001FAN AXIAL 140X51MM 48VDC WIRE |
4,883 |
|
Datasheet |
|
San Ace 140L | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
