DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC1448HEE79FAN AXIAL 139.7X38MM 48VDC WIRE |
1 |
|
Datasheet |
 |
PFC | Box | Not For New Designs | 48VDC | Square - 139.7mm L x 139.7mm H | 38.00mm | 293.3 CFM (8.21m³/min) | 2.570 in H2O (640.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 52.8 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
5212NNFAN AXIAL 127X38MM 12VDC WIRE |
3,568 |
|
Datasheet |
|
5200N | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 127.1 CFM (3.56m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 6 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|
RL65-21/12HFAN BLOWER 97X33MM 12VDC WIRE |
3,338 |
|
Datasheet |
|
RL65 | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 33.00mm | 35.8 CFM (1.00m³/min) | - | Ball | Blower | - | 69.0dB(A) | 16 W | 4900 RPM | 2 Wire Leads | - | - | - | 0.37 lb (167.83 g) |
|
MA1751X24B-FSR-CCFAN AXIAL 172X50.8MM 24VDC WIRE |
3,986 |
|
Datasheet |
|
MA1751 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 290.6 CFM (8.14m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 63.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
618NMFAN AXIAL 60X25.4MM 48VDC WIRE |
1 |
|
Datasheet |
|
600N | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.9 W | 4100 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.146 lb (66.22 g) |
|
3252J/2H3PFAN AXIAL 92X38MM 12VDC WIRE |
4,914 |
|
Datasheet |
|
S-Panther 3250J | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 158.0 CFM (4.42m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 35 W | 7450 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.529 lb (239.95 g) |
|
4312/17MTFAN AXIAL 119X32MM 12VDC WIRE |
4,614 |
|
Datasheet |
|
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 32.00mm | 81.0 CFM (2.27m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 3.3 W | 2300 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | - |
|
MA1751E12B1+6-FSR-EMFAN AXIAL 172X50.8MM 12VDC WIRE |
3,330 |
|
Datasheet |
|
MA1751 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 269.2 CFM (7.54m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 61.0dB(A) | - | 3150 RPM | 4 Wire Leads | IP57 - Dust Protected, Waterproof | - | cUL, TUV, UL | 1.7 lbs (771.1 g) |
|
9LG1412M1002FAN AXIAL 140X38MM 12VDC WIRE |
1 |
|
Datasheet |
|
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.4 lbs (650.0 g) |
|

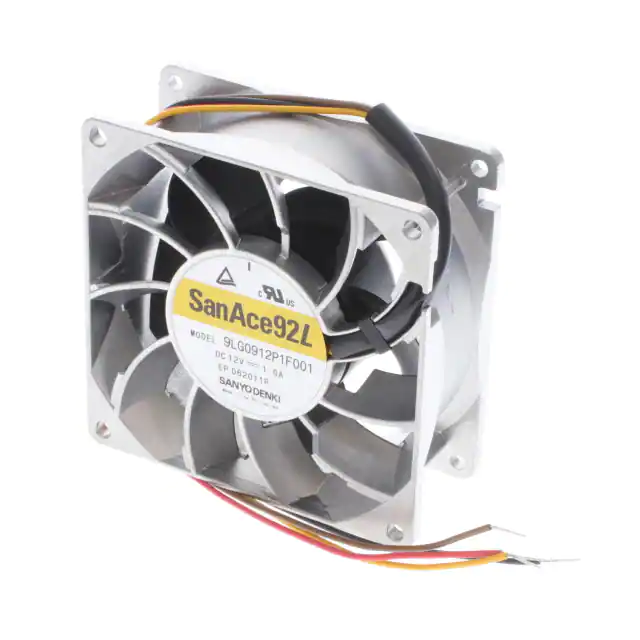

9LG0912P1F001FAN AXIAL 92X38MM 12VDC WIRE |
3,807 |
|
Datasheet |
|
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 7000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|

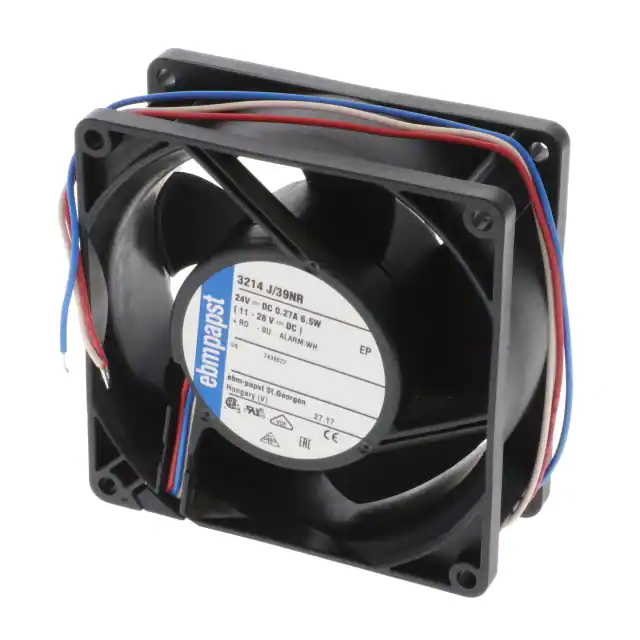

3214J/39NRFAN AXIAL 92X38MM 24VDC WIRE |
1 |
|
Datasheet |
|
3200J, S-Force | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | - | Ball | Tubeaxial | Alarm Sensor | 51.0dB(A) | 6.5 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
5212NHFAN AXIAL 127X38MM 12VDC WIRE |
4,045 |
|
Datasheet |
|
5200N | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.3 CFM (4.15m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 9.8 W | 3650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|

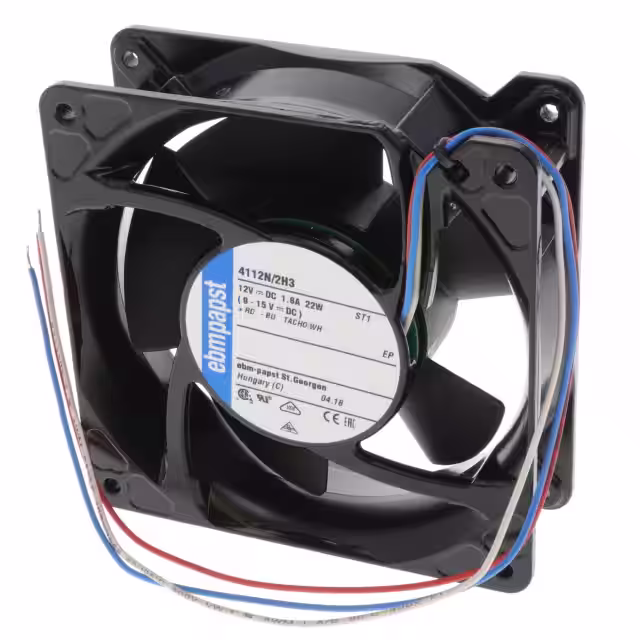

4112N/2H3FAN AXIAL 119X38MM 12VDC WIRE |
3,805 |
|
Datasheet |
|
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 182.0 CFM (5.10m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 21.6 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL | - |
|
TFD0948HE-00P8FAN AXIAL 92X38MM 48VDC WIRE |
4,889 |
|
Datasheet |
|
TFD | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 144.6 CFM (4.05m³/min) | 2.429 in H2O (605.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.5dB(A) | 36 W | 9000 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | - | - |
|

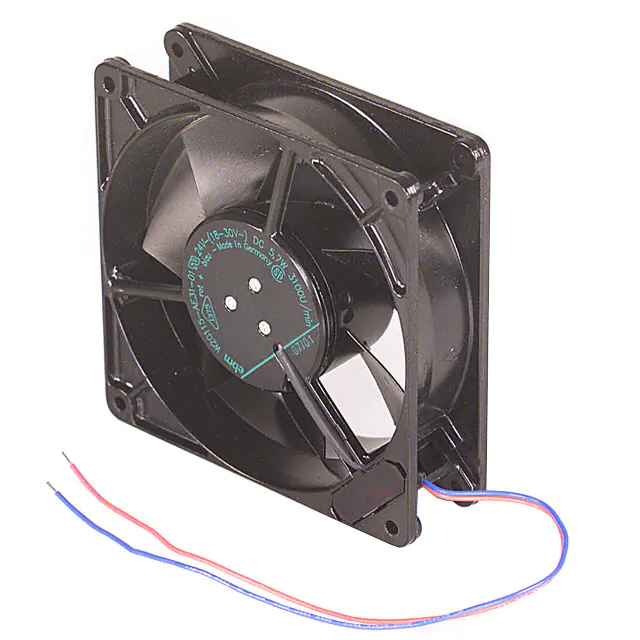

W2G115-AE31-01FAN AXIAL 127X38MM 24VDC WIRE |
1 |
|
Datasheet |
|
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 130.0 CFM (3.64m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.7 W | - | 2 Wire Leads | - | - | - | 1.6 lbs (725.7 g) |
|
|
109E1712H502FAN AXIAL 172X51MM 12VDC WIRE |
2,032 |
|
Datasheet |
|
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 14.4 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
17001163AFAN AXIAL 24VDC MDD24B1E2X-E3 |
2,491 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6 W | 3100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
4114NXHHU-233FAN AXIAL 119X38MM 24VDC WIRE |
4,356 |
|
Datasheet |
|
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 153.0 CFM (4.28m³/min) | 0.819 in H2O (204.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 60.0dB(A) | 13.6 W | 4900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -13 ~ 131°F (-25 ~ 55°C) | UL | 0.882 lb (400.07 g) |
|
|
9LG1224M1002FAN AXIAL 120X38MM 24VDC WIRE |
3,309 |
|
Datasheet |
|
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.64 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WV0924P1H001FAN AXIAL 92X38MM 24VDC WIRE |
4,476 |
|
Datasheet |
|
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 178.0 CFM (4.98m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 38.4 W | 8500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.586 lb (265.81 g) |
