DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE2408PTB2-6A ( 318 )FAN AXIAL 80X25.5MM 24VDC WIRE |
2,904 |
|
Datasheet |
 |
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 35.0 CFM (0.980m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 32.5dB(A) | 1.9 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
|
KDE2408PTB1-6A (318)FAN AXIAL 80X25.5MM 24VDC WIRE |
2,608 |
|
Datasheet |
|
KDE | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 42.5 CFM (1.19m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 36.5dB(A) | 2.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.22 lb (99.79 g) |
|

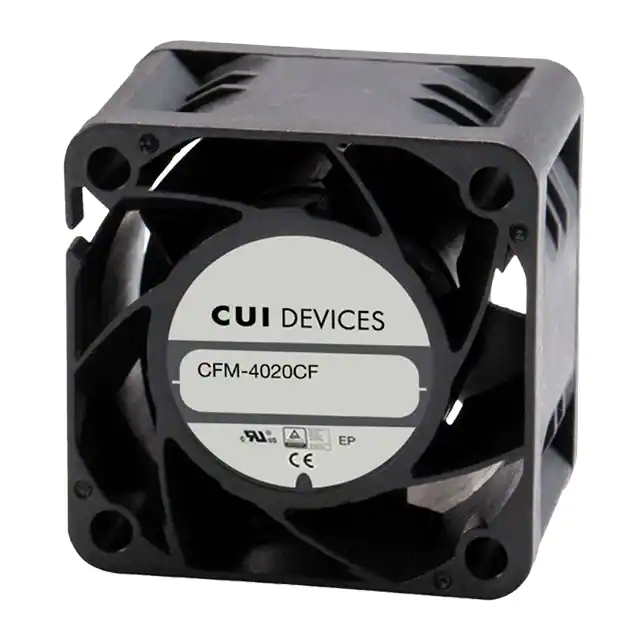

CFM-4020CF-055-212-22FAN AXIAL 40X20MM 5VDC WIRE |
2,327 |
|
Datasheet |
|
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.2dB(A) | 850 mW | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-035-114-22FAN AXIAL 40X20MM 5VDC WIRE |
4,812 |
|
Datasheet |
|
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.4dB(A) | 450 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-075-306-22FAN AXIAL 40X20MM 5VDC WIRE |
3,081 |
|
Datasheet |
|
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 1.6 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225V-230-340-11FAN AXIAL 92X25MM 24VDC WIRE |
4,965 |
|
Datasheet |
|
CFM-92V | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 34.0dB(A) | 2.09 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
03510SS-12M-AL-00FAN AXIAL 35X10MM 12VDC WIRE |
4,584 |
|
- |
|
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-12L-AT-00FAN AXIAL 35X10MM 12VDC WIRE |
3,027 |
|
Datasheet |
|
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-05N-AL-00FAN AXIAL 35X10MM 5VDC WIRE |
2,380 |
|
- |
|
03510SS | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 1 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-05M-AL-00FAN AXIAL 30X10MM 5VDC WIRE |
3,820 |
|
- |
|
03510SS | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.4dB | 600 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-12L-AL-00FAN AXIAL 30X10MM 12VDC WIRE |
3,960 |
|
- |
|
03510SS | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.124 in H2O (30.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 19.0dB | 480 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-12M-AT-00FAN AXIAL 30X10MM 12VDC WIRE |
3,339 |
|
- |
|
03510SS | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.4dB | 600 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-05L-AL-00FAN AXIAL 30X10MM 5VDC WIRE |
2,815 |
|
- |
|
03510SS | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.124 in H2O (30.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 19.0dB | 400 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-05M-AT-00FAN AXIAL 30X10MM 5VDC WIRE |
2,059 |
|
- |
|
03510SS | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.4dB | 600 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CBM-4007C-150-238DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
2,849 |
|
Datasheet |
|
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.4 CFM (0.040m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 23.8dB(A) | 1.08 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4007C-050-238DC BLOWER, 40 MM SQUARE, 7 MM, 5 |
3,068 |
|
Datasheet |
|
CBM-40C | Box | Active | 5VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.4 CFM (0.040m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 23.8dB(A) | 700 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
KD1205PHS1.GN.C1500FAN AXIAL 50X15.4MM 12VDC WIRE |
4,794 |
|
Datasheet |
|
KD | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.40mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Sleeve | Tubeaxial | - | 34.0dB(A) | 1.6 W | 5800 RPM | 2 Wire Leads | - | - | - | - |
|
|
CBM-5020C-160-360-20DC BLOWER, 49.2 X 49.8 X 20 MM, |
3,768 |
|
Datasheet |
|
CBM-50C | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 6.1 CFM (0.171m³/min) | 0.640 in H2O (159.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 36.0dB(A) | 3.24 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
OD4006-05HSSFAN AXIAL 40X6MM 5VDC WIRE |
2,457 |
|
Datasheet |
|
OD4006 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.00mm | - | - | Sealed Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
CFM-4010B-165-251-20FAN AXIAL 40X10.5MM 12VDC WIRE |
4,976 |
|
Datasheet |
|
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.1dB(A) | 720 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
