DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUB0612L-AFAN AXIAL 60X25.4MM 12VDC |
2,801 |
|
Datasheet |
 |
AUB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 13.8 CFM (0.386m³/min) | 0.100 in H2O (24.9 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 26.5dB(A) | 840 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.134 lb (60.78 g) |
|
AUB0612M-AFAN AXIAL 60X25.4MM 12VDC |
4,649 |
|
Datasheet |
|
AUB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 18.4 CFM (0.515m³/min) | 0.150 in H2O (37.3 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.08 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.134 lb (60.78 g) |
|
AUB0612H-AFAN AXIAL 60X25.4MM 12VDC |
3,845 |
|
Datasheet |
|
AUB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 1.56 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.134 lb (60.78 g) |
|
|
CBM-7530CF-220-282-20DC BLOWER, 49.2 X 49.8 X 20 MM, |
3,275 |
|
Datasheet |
|
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 28.2dB(A) | 1.44 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-120-282-20DC BLOWER, 75.7 X 75.7 X 30 MM, |
2,842 |
|
Datasheet |
|
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 28.2dB(A) | 0.84 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020CF-275-306-22FAN AXIAL 40X20MM 24VDC WIRE |
2,385 |
|
Datasheet |
|
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 1.92 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-235-114-22FAN AXIAL 40X20MM 24VDC WIRE |
4,397 |
|
Datasheet |
|
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.4dB(A) | 960 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-095-342-22FAN AXIAL 40X20MM 5VDC WIRE |
3,831 |
|
Datasheet |
|
CFM-40CF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.9 CFM (0.333m³/min) | 0.410 in H2O (102.1 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.2dB(A) | 2.35 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-255-212-22FAN AXIAL 40X20MM 24VDC WIRE |
3,963 |
|
Datasheet |
|
CFM-40CF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.2dB(A) | 1.2 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-135-114-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
3,325 |
|
Datasheet |
|
CFM-40CF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 4.4 CFM (0.123m³/min) | 0.060 in H2O (14.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.4dB(A) | 0.36 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4020CF-175-306-22DC AXIAL FAN, 40 MM SQUARE, 20 M |
2,736 |
|
Datasheet |
|
CFM-40CF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.6dB(A) | 1.32 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFC0712D-9Z08FAN AXIAL 70X25.4MM 12VDC WIRE |
4,703 |
|
Datasheet |
|
AFC | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 52.0 CFM (1.46m³/min) | 0.433 in H2O (107.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 5.28 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
AFC0712DXEBFAN AXIAL 70X25.4MM 12VDC WIRE |
4,309 |
|
Datasheet |
|
AFC | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 48.0 CFM (1.34m³/min) | 0.390 in H2O (97.1 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.5dB(A) | 4.2 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
CFM-8015V-124-308FAN AXIAL 80X15MM 12VDC WIRE |
2,436 |
|
Datasheet |
|
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 30.8dB(A) | 1.25 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
HA60151V3-E01U-F99FAN 60X15MM 12VDC |
3,250 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-6025CF-165-408-20FAN AXIAL 60X25.4MM 12VDC WIRE |
3,943 |
|
- |
|
CFM-60CF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.9dB(A) | 6 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
GDA6025-12BBFAN AXIAL 60X25MM 12VDC WIRE |
4,966 |
|
Datasheet |
|
Gryphon | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.2 CFM (0.538m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.1dB(A) | 1.7 W | 4000 RPM | 3 Wire Leads | - | - | - | 0.137 lb (62.14 g) |
|
|

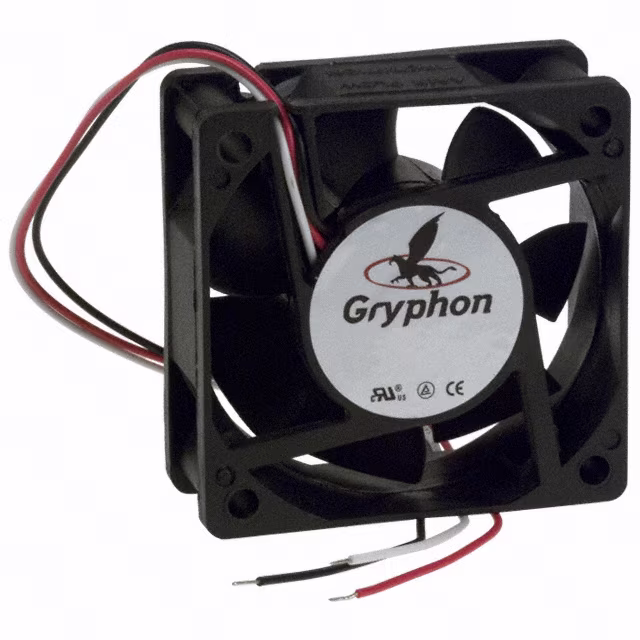

GDA6025-24BBFAN AXIAL 60X25MM 24VDC WIRE |
2,003 |
|
Datasheet |
|
Gryphon | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.2 CFM (0.538m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.1dB(A) | 3.4 W | 4000 RPM | 3 Wire Leads | - | - | - | 0.137 lb (62.14 g) |
|
CFM-7020V-126-260-11FAN AXIAL 70X20MM 12VDC WIRE |
2,114 |
|
Datasheet |
|
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 26.0dB(A) | 1.07 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
CFM-8020V-130-350-20FAN AXIAL 80X20MM 12VDC WIRE |
2,562 |
|
Datasheet |
|
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 33.1 CFM (0.927m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 1.32 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
