DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
08025SS-24L-EL-D0DC AXIAL FAN |
3,839 |
|
Datasheet |
 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.086 in H2O (21.5 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB | 1.2 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SS-12N-ET-D0DC AXIAL FAN |
4,644 |
|
Datasheet |
|
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
08025SS-24L-ET-D0DC AXIAL FAN |
3,704 |
|
Datasheet |
|
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.086 in H2O (21.5 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.0dB | 1.2 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
MF30060V1-1000U-H995VDC FAN 30X6MM PWM |
2,589 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 23.6dB(A) | 0.56 W | 9100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30060V2-1000U-H995VDC FAN 30X6MM PWM |
2,831 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 15.7dB(A) | 0.36 W | 7100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
AFB0705MC-00F0RFAN AXL FRAMELSS 65.8X13MM 5VDC |
4,390 |
|
Datasheet |
|
AFB - Frameless | Box | Active | 5VDC | Round - 65.8mm Dia | 13.00mm | 22.1 CFM (0.619m³/min) | 0.093 in H2O (23.2 Pa) | Ball | Tubeaxial, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.1dB(A) | 1.1 W | 2900 RPM | 4 Wire Leads | - | 32 ~ 158°F (0 ~ 70°C) | CE, cURus, TUV | 0.057 lb (25.85 g) |
|
CFM-6015BF-235-278-20FAN AXIAL 60X15.5MM 24VDC WIRE |
2,456 |
|
Datasheet |
|
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 15.4 CFM (0.431m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.8dB(A) | 1.44 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

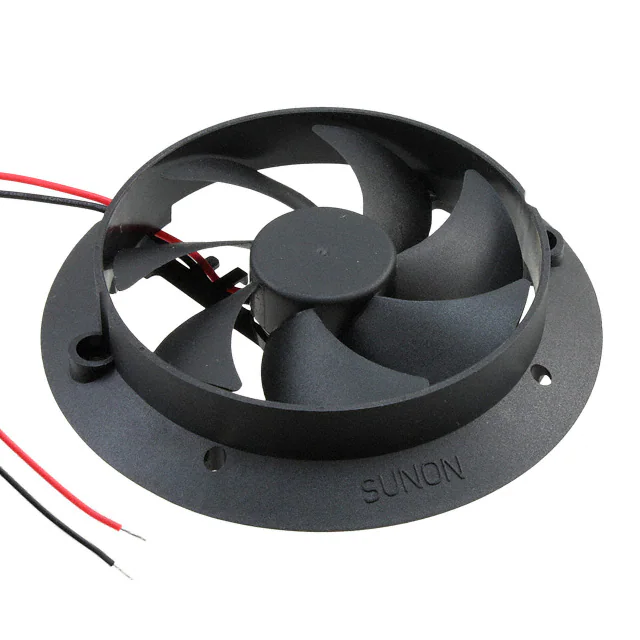

HA60150V3-E02U-A99FAN AXIAL 84.9X15.4MM 5VDC WIRE |
3,108 |
|
Datasheet |
|
MagLev® HA | Tray | Obsolete | 5VDC | Round - 84.9mm Dia | 15.40mm | 13.2 CFM (0.370m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.1dB(A) | 400 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.06 lb (27.22 g) |
|

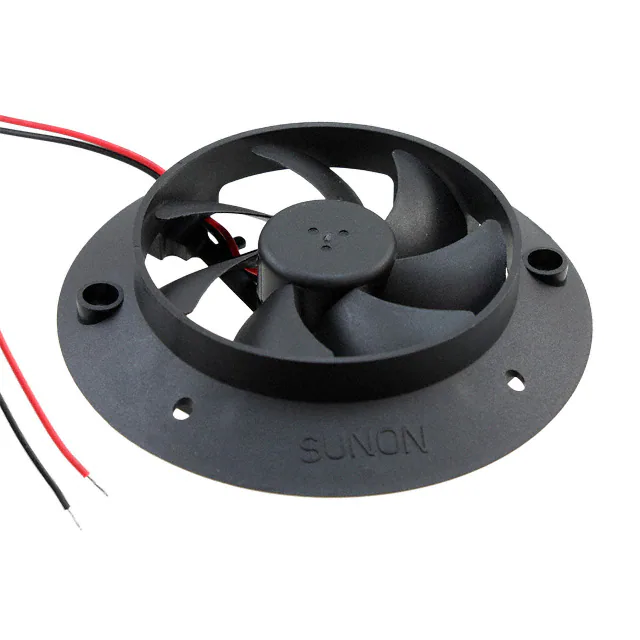

HA60150V3-E03U-A99FAN AXIAL 84.9X15.4MM 5VDC WIRE |
3,172 |
|
Datasheet |
|
MagLev® HA | Tray | Obsolete | 5VDC | Round - 84.9mm Dia | 15.40mm | 9.7 CFM (0.272m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.8dB(A) | 260 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
HA60151V3-E00U-A99FAN AXIAL 84.9X15.4MM 12VDC |
4,537 |
|
Datasheet |
|
MagLev® HA | Tray | Obsolete | 12VDC | Round - 84.9mm Dia | 15.40mm | 9.7 CFM (0.272m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.8dB(A) | 280 mW | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
MB50152V1-000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
2,171 |
|
Datasheet |
|
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 33.0dB(A) | 1.32 W | 5800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.083 lb (37.65 g) |
|
|
MB50152V2-000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
4,239 |
|
Datasheet |
|
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.0dB(A) | 840 mW | 4700 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.083 lb (37.65 g) |
|
CFM-3010B-180-267-20FAN AXIAL 30X10.5MM 12VDC WIRE |
3,688 |
|
Datasheet |
|
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.8dB(A) | 1.08 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0912M-PM11FAN AXIAL 92X25.4MM 12VDC WIRE |
3,719 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.5 CFM (1.39m³/min) | 0.133 in H2O (33.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 1.44 W | 2300 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
|
CBM-5015BF-045-348-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
2,534 |
|
Datasheet |
|
CBM-50BF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Blower | Speed Sensor (Tach) | 34.8dB(A) | 1.05 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-2010CF-1120-217-20DC AXIAL FAN, 20 MM SQUARE, 10 M |
2,511 |
|
Datasheet |
|
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 10.30mm | 1.1 CFM (0.031m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.7dB(A) | 960 mW | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

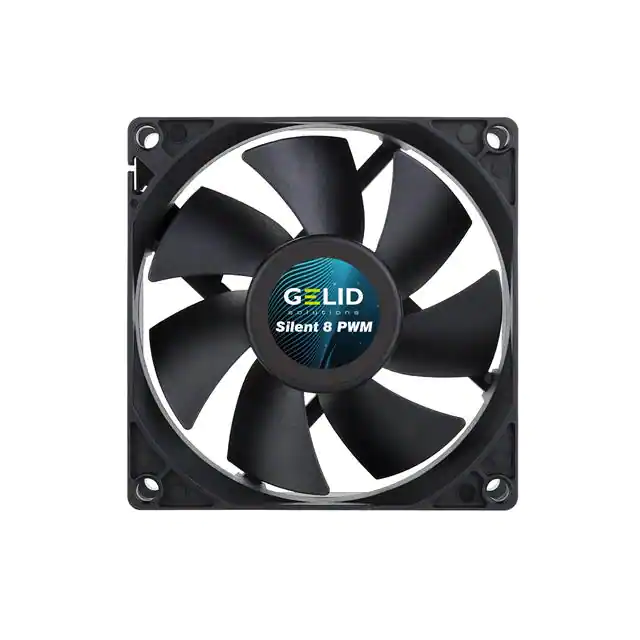

FN-PX08-16SILENT 8 BLACK |
2,953 |
|
Datasheet |
|
FN | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | 0.041 in H2O (10.3 Pa) | Hydrodynamic | Tubeaxial | - | 18.9dB(A) | 960 mW | 1600 RPM | 3 Position Rectangular Connector | - | - | - | - | |
|
CFM-7020V-226-360-20FAN AXIAL 70X20MM 24VDC WIRE |
2,232 |
|
Datasheet |
|
CFM-70V | Tray | Obsolete | 24VDC | Square - 70mm L x 70mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 1.23 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
CFM-7020V-232-330-20FAN AXIAL 70X20MM 24VDC WIRE |
3,298 |
|
Datasheet |
|
CFM-70V | Tray | Obsolete | 24VDC | Square - 70mm L x 70mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.83 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
MF60202V2-1000U-A99FAN AXIAL 60X20MM 24VDC WIRE |
4,796 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 0.84 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
