DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2408NL-05W-B59-P50FAN AXIAL 60X20MM 24VDC WIRE |
3,718 |
|
Datasheet |
 |
2408NL | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.162 in H2O (40.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.5dB | 1.32 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
3110KL-05W-B39-G00FAN AXIAL 80X25MM 24VDC WIRE |
4,694 |
|
Datasheet |
|
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.92 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
MF25060V1-1000U-Q995VDC FAN 25X6MM ALARM/PWM |
4,318 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 6.00mm | 3.0 CFM (0.084m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 24.8dB(A) | 0.58 W | 13000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25100V2-1000U-Q995VDC FAN 25X10MM ALARM/PWM |
2,508 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 16.0dB(A) | 0.33 W | 9800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25100V1-1000U-Q995VDC FAN 25X10MM ALARM/PWM |
3,583 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 23.0dB(A) | 0.53 W | 13000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35100V2-1000U-Q995VDC FAN 35X10MM ALARM/PWM |
2,393 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 21.8dB(A) | 0.4 W | 7500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25100V3-1000U-Q995VDC FAN 25X10MM ALARM/PWM |
2,215 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 8.8dB(A) | 0.2 W | 6800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35100V1-1000U-Q995VDC FAN 35X10MM ALARM/PWM |
4,892 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 28.0dB(A) | 0.68 W | 10000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25060V2-1000U-Q995VDC FAN 25X6MM ALARM/PWM |
3,822 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 6.00mm | 2.2 CFM (0.061m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 18.0dB(A) | 0.38 W | 10000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF35100V3-1000U-Q995VDC FAN 35X10MM ALARM/PWM |
2,431 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 13.1dB(A) | 0.23 W | 5300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60202V3-1000U-F9924VDC FAN 60X20MM TACH |
4,687 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.3 CFM (0.46m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 0.53 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60202V1-1000U-F9924VDC FAN 60X20MM TACH |
2,144 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.5dB(A) | 1.32 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60202V2-1000U-F9924VDC FAN 60X20MM TACH |
3,656 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 0.84 W | 4200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60202VX-1000U-F9924VDC FAN 60X20MM TACH |
3,850 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.5 CFM (0.714m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 39.0dB(A) | 1.8 W | 5700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
EFB0512MAFAN AXIAL 50X10MM 12VDC WIRE |
3,284 |
|
Datasheet |
|
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 9.2 CFM (0.258m³/min) | 0.113 in H2O (28.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 960 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
ME80202V2-000U-A99FAN |
2,868 |
|
- |
|
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

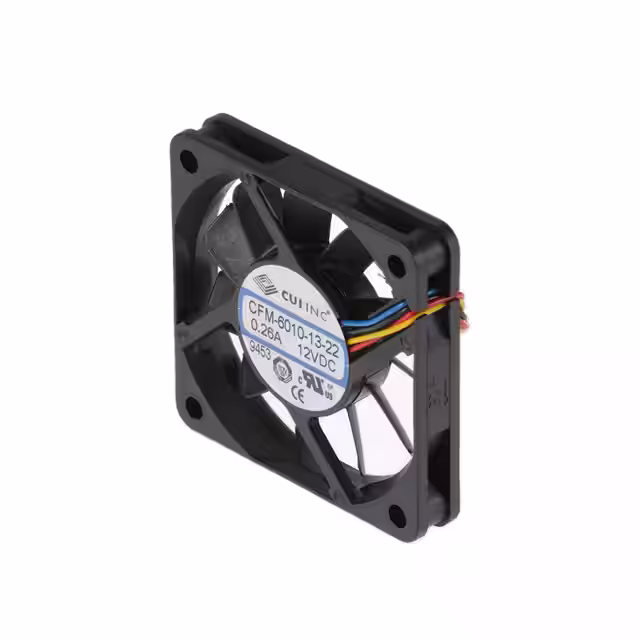

CFM-6010-13-22FAN AXIAL 60X10.6MM 12VDC WIRE |
2,486 |
|
Datasheet |
|
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.60mm | 24.2 CFM (0.678m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.4dB(A) | 3.12 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
|
MF60252V1-1000U-G9924VDC FAN 60X25MM ALARM |
4,825 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60252V3-1000U-G9924VDC FAN 60X25MM ALARM |
2,669 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 16.7dB(A) | 0.53 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60252VX-1000U-G9924VDC FAN 60X25MM ALARM |
2,870 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.2dB(A) | 1.92 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
