DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF25150V2-1000U-F995VDC FAN 25X15MM TACH |
3,116 |
|
Datasheet |
 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 11.3dB(A) | 0.23 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V1-1000U-S995VDC FAN 30X15MM TACH/PWM |
4,944 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | 0.7 W | 9500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V3-1000U-F995VDC FAN 30X15MM TACH |
4,376 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 9.8dB(A) | 0.23 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V2-1000U-F995VDC FAN 30X15MM TACH |
2,048 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 4.9 CFM (0.137m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.0dB(A) | 0.4 W | 7300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V1-1000U-S995VDC FAN 25X15MM TACH/PWM |
4,109 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 3.1 CFM (0.087m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | 0.43 W | 10000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V1-1000U-F995VDC FAN 25X15MM TACH |
3,404 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 3.1 CFM (0.087m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.0dB(A) | 0.43 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V2-1000U-S995VDC FAN 30X15MM TACH/PWM |
2,690 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 4.9 CFM (0.137m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | 0.4 W | 7300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V3-1000U-F995VDC FAN 25X15MM TACH |
4,238 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 1.3 CFM (0.036m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 4.5dB(A) | 0.18 W | 5300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V3-1000U-S995VDC FAN 30X15MM TACH/PWM |
2,123 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 9.8dB(A) | 0.23 W | 5200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V2-1000U-S995VDC FAN 25X15MM TACH/PWM |
4,895 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 11.3dB(A) | 0.23 W | 6800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30150V1-1000U-F995VDC FAN 30X15MM TACH |
4,112 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 27.0dB(A) | 0.7 W | 9500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V3-1000U-S995VDC FAN 25X15MM TACH/PWM |
3,872 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 1.3 CFM (0.036m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 4.5dB(A) | 0.18 W | 5300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
AFB03512HA-AR00FAN AXIAL 35X10MM 12VDC WIRE |
2,026 |
|
Datasheet |
|
AFB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.106 in H2O (26.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB(A) | 1.08 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|
FAD1-04010CBAW11FAN AXIAL 40X10MM 12VDC WIRE |
2,510 |
|
Datasheet |
|
FAD1-04010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.3 CFM (0.092m³/min) | 0.044 in H2O (11.0 Pa) | Ball | Tubeaxial | - | 14.0dB(A) | 480 mW | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.037 lb (16.78 g) |
|
EB60252B2-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
4,473 |
|
- |
|
EB | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|

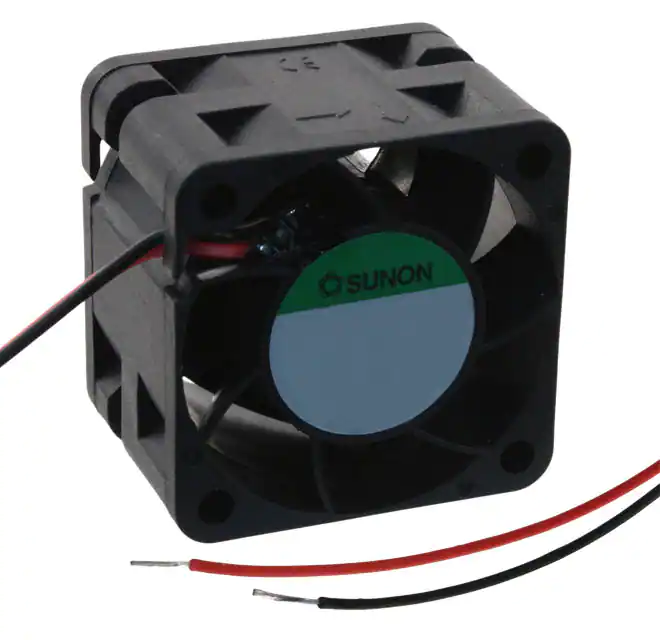

PMD1238PQB1-A.(2).GNFAN AXIAL 38X28MM 12VDC WIRE |
3,835 |
|
- |
|
PMD | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.5 CFM (0.462m³/min) | 0.910 in H2O (226.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 3.6 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.078 lb (35.38 g) |
|
|
CFM-6020B-230-257-22DC AXIAL FAN, 60 MM SQUARE, 20 M |
3,759 |
|
Datasheet |
|
CFM-60B | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.6 CFM (0.409m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 19.6dB(A) | 0.72 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
3610KL-04W-B10-P00FAN AXIAL 92X25MM 12VDC WIRE |
2,289 |
|
Datasheet |
|
3610KL | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | - | 25.0dB | 880 mW | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
MF60151V1-1B00U-F9912VDC FAN 60X15MM TACH |
4,166 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.6 CFM (0.157m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Sensor | 32.8dB(A) | 0.9 W | 4000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151V2-1B00U-F9912VDC FAN 60X15MM TACH |
2,964 |
|
Datasheet |
|
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.1 CFM (0.143m³/min) | 0.330 in H2O (82.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 0.66 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
