DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F6025L12B-RSFAN AXIAL 60X25MM 12VDC WIRE |
2,267 |
|
Datasheet |
 |
F6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 24.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025M12B-RSFAN AXIAL 60X25MM 12VDC WIRE |
4,230 |
|
Datasheet |
|
F6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 27.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025X24B-RSFAN AXIAL 60X25MM 24VDC WIRE |
3,350 |
|
Datasheet |
|
F6025 | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

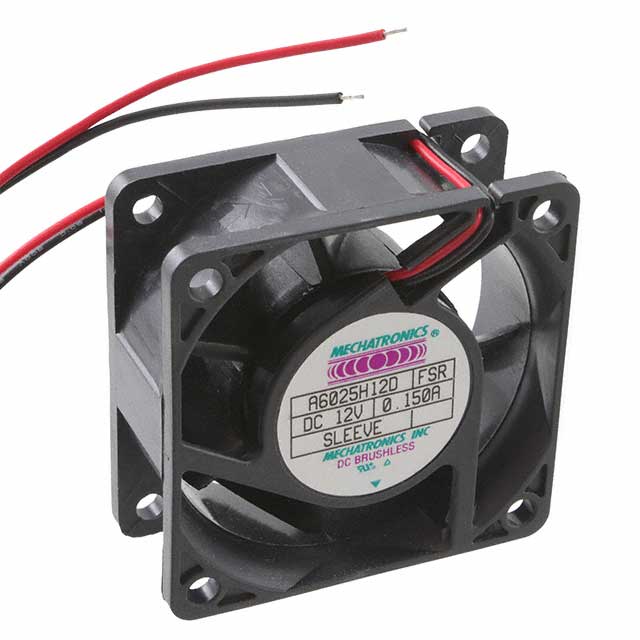

A6025H12D-FSRFAN AXIAL 60X25MM 12VDC WIRE |
2,061 |
|
Datasheet |
|
A6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.0 CFM (0.560m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.156 lb (70.76 g) |
|
G4020E24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
4,252 |
|
Datasheet |
|
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020L05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
4,081 |
|
Datasheet |
|
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020L24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
2,648 |
|
Datasheet |
|
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020M05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
4,994 |
|
Datasheet |
|
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020S05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
3,028 |
|
Datasheet |
|
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 21.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020S12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
4,157 |
|
Datasheet |
|
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 21.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
MF80152V2-1000U-H9924VDC FAN 80X15MM PWM |
3,702 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 29.9dB(A) | 1.32 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V3-1000U-H9924VDC FAN 80X15MM PWM |
4,040 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 26.5dB(A) | 0.96 W | 2800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V2-1000U-F9924VDC FAN 80X15MM TACH |
4,092 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.9dB(A) | 1.32 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V3-1000U-F9924VDC FAN 80X15MM TACH |
3,343 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.5dB(A) | 0.96 W | 2800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V1-1000U-H9924VDC FAN 80X15MM PWM |
2,437 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 32.9dB(A) | 1.64 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V1-1000U-F9924VDC FAN 80X15MM TACH |
3,154 |
|
Datasheet |
|
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.9dB(A) | 1.64 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-A238S-226-435-20FAN AXIAL 120X37.5MM 24VDC WIRE |
3,461 |
|
Datasheet |
|
CFM-120S | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 100.7 CFM (2.82m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.5dB(A) | 6.48 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0801512H2B-2T0FAN AXIAL 80X15MM 12VDC WIRE |
2,842 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.121 lb (54.88 g) |
|
|
06023GS-12Q-AE-00FAN 12VDC 60X23MM |
4,826 |
|
Datasheet |
|
06023GS | Box | Active | 12VDC | Rectangular/Rounded - 60.2mm L x 59.3mm H | 23.00mm | 12.0 CFM (0.340m³/min) | 1.180 in H2O (294.0 Pa) | Sleeve | Blower | Auto Restart | 43.5dB(A) | 3.84 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
06023GS-12N-ATE-0FAN 12VDC 60X23MM |
4,609 |
|
Datasheet |
|
06023GS | Box | Active | 12VDC | Rectangular/Rounded - 60.2mm L x 59.3mm H | 23.00mm | 10.0 CFM (0.280m³/min) | 0.723 in H2O (180.0 Pa) | Sleeve | Blower | Auto Restart, Speed Sensor (Tach) | 39.0dB(A) | 2.88 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
