DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MF17080V1-1000U-S995VDC FAN 17X8MM TACH/PWM |
3,410 |
|
Datasheet |
 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | 0.47 W | 21000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF17080V2-1000U-S995VDC FAN 17X8MM TACH/PWM |
4,167 |
|
Datasheet |
|
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 14.2dB(A) | 0.33 W | 16500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
DC0601512H2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
2,603 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601512M2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
4,513 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601512J2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
3,758 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601512L2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
3,249 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601524H2B-3T0FAN 60X15MM 24VDC TACH |
2,973 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524J2B-3T0FAN 60X15MM 24VDC TACH |
3,117 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.44 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524L2B-3T0FAN 60X15MM 24VDC TACH |
4,665 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.92 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524M2B-3T0FAN 60X15MM 24VDC TACH |
2,975 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.4 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
06015GA-12N-AL-00BLOWER 60MM X 15MM 12VDC LOCK RO |
4,879 |
|
- |
|
06015GA | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 4.2 CFM (0.118m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 42.0dB | 2.64 W | 5600 RPM | 3 Wire Leads | - | - | - | - |
|

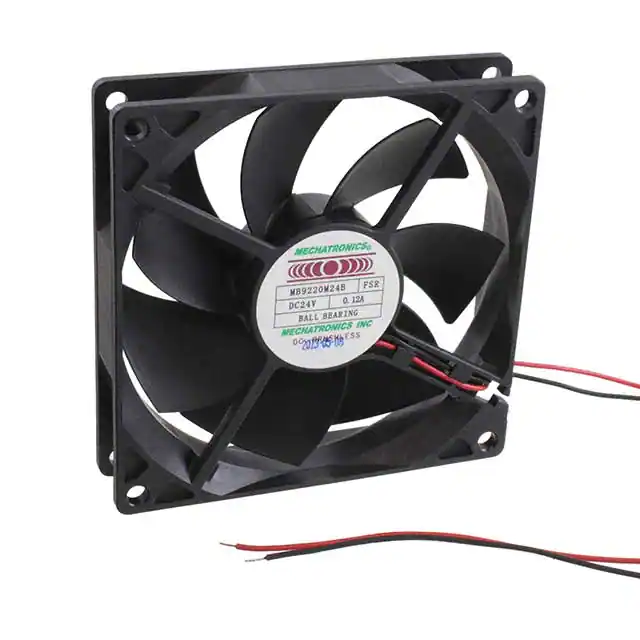

MB9220M24B-FSRFAN AXIAL 92X19.5MM 24VDC WIRE |
4,471 |
|
Datasheet |
|
MB9220 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 19.50mm | 38.1 CFM (1.07m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.157 lb (71.21 g) |
|
|
GB0535ADB3-8FAN BLOWER 34.8X7.3MM 5VDC WIRE |
2,719 |
|
Datasheet |
|
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 7.30mm | 0.812 CFM (0.023m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Blower | - | 20.0dB(A) | 250 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CUR, TUV, UL | 0.026 lb (11.79 g) |
|
|
AF40200VX-1000U-A99FAN AXIAL 5VDC 40X20MM |
4,181 |
|
- |
|
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.5dB(A) | 0.9 W | 8600 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40201VX-1000U-A99FAN AXIAL 12VDC 40X20MM |
4,748 |
|
- |
|
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.5dB(A) | 0.92 W | 8600 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
1608VL-04W-B40-B00FAN AXIAL 40.1X20MM 12VDC WIRE |
3,199 |
|
Datasheet |
|
04020VA | Box | Obsolete | 12VDC | Square - 40.1mm L x 40.1mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.02 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.088 lb (39.92 g) |
|
|
04020VA-24Q-AA-00DC AXIAL FAN |
2,749 |
|
Datasheet |
|
04020VA | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 12.5 CFM (0.350m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 2.64 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-4015B-2105-365-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
2,148 |
|
Datasheet |
|
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 12.3 CFM (0.344m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.5dB(A) | 2.64 W | 10500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015B-1135-415-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
3,494 |
|
Datasheet |
|
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.10mm | 15.8 CFM (0.442m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | 3.6 W | 13500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015B-2135-415-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
3,024 |
|
Datasheet |
|
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 15.8 CFM (0.442m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | 3.84 W | 13500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
