DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(8020BF)(8038BF).jpg)
|
CFM-8015BF-230-301-22FAN AXIAL 80X15.4MM 24VDC WIRE |
3,588 |
|
Datasheet |
 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.1dB(A) | 5.04 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015BF-220-213-22FAN AXIAL 80X15.4MM 24VDC WIRE |
4,185 |
|
Datasheet |
|
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.3dB(A) | 1.44 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015BF-130-301-22FAN AXIAL 80X15.4MM 12VDC WIRE |
2,160 |
|
Datasheet |
|
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.1dB(A) | 3.12 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225BG-123-374DC AXIAL FAN, 120 MM SQUARE, 25 |
2,245 |
|
Datasheet |
|
CFM-A2BG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 80.2 CFM (2.25m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.6dB(A) | 5.04 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

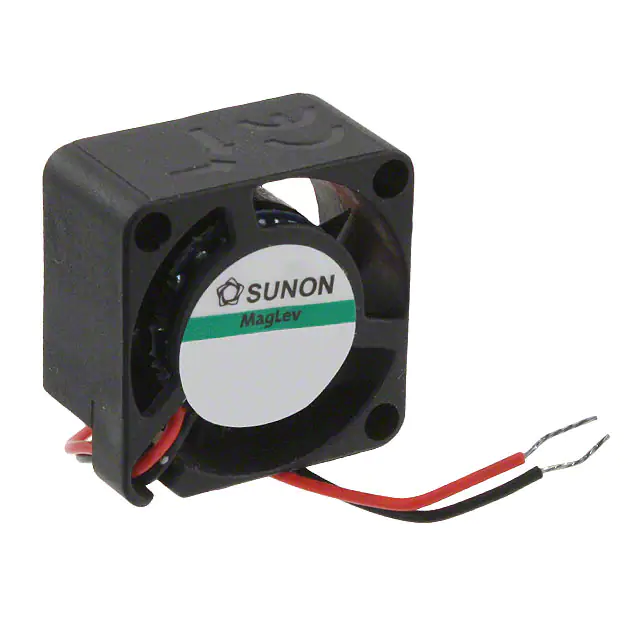

MC20100V2-000U-G99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
2,742 |
|
Datasheet |
|
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.0dB(A) | 780 mW | 14000 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.012 lb (5.44 g) |
6025BF).jpg)
|
CFM-6025BF-035-274-22FAN AXIAL 60X25.4MM 5VDC WIRE |
4,976 |
|
Datasheet |
|
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.5 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BF-050-351-22FAN AXIAL 60X25.4MM 5VDC WIRE |
2,659 |
|
Datasheet |
|
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 2.8 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BF-150-351-22FAN AXIAL 60X25.4MM 12VDC WIRE |
2,363 |
|
Datasheet |
|
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 2.76 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
G4015E12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
4,836 |
|
Datasheet |
|
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 10.0 CFM (0.280m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
G4015E24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
3,095 |
|
Datasheet |
|
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 10.0 CFM (0.280m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
G4015H05B-RSRFAN AXIAL 40X15MM BALL 5VDC WIRE |
4,965 |
|
Datasheet |
|
G4015 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
G4015L12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
4,543 |
|
Datasheet |
|
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 4.0 CFM (0.112m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 20.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
G4015L24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
2,819 |
|
Datasheet |
|
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 4.0 CFM (0.112m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 20.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
G4015M12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
4,466 |
|
Datasheet |
|
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 23.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
G4015M24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
2,872 |
|
Datasheet |
|
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 23.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
|
AF40100VX-1000U-GL95VDC FAN 40X10MM ALARM IP52 |
4,963 |
|
Datasheet |
|
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 30.7dB(A) | 0.6 W | 8000 RPM | 2 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40101VX-1000U-GL912VDC FAN 40X10MM ALARM IP52 |
2,201 |
|
Datasheet |
|
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | - | 30.7dB(A) | 0.78 W | 8000 RPM | 2 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0702512U2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
3,115 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 1.92 W | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0702524M2B-2T2FAN 70X25MM 24VDC MOLEX 22-01-10 |
3,969 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.16 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524J2B-BT0FAN 80X15MM 24VDC PWM/TACH |
2,505 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 1.44 W | 2400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
