DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17000206AFAN AXIAL 24VDC CR1224UB-Y51 Comair Rotron |
4,827 |
|
Datasheet |
 |
- | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 32.30mm | 133.4 CFM (3.74m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.4dB(A) | 7.68 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.47 lb (213.19 g) |
|
|
17000208AFAN AXIAL 12VDC CR1212UB-Y51 Comair Rotron |
4,552 |
|
Datasheet |
|
- | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 32.30mm | 133.4 CFM (3.74m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.4dB(A) | 6.12 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.47 lb (213.19 g) |
|
19032107AFAN AXIAL 80X32MM 12VDC ST12A3 Comair Rotron |
3,630 |
|
Datasheet |
|
Sprint | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Sleeve | Tubeaxial | - | 40.9dB(A) | 3.4 W | 3400 RPM | 2 Wire Leads | - | - | - | 0.397 lb (180.08 g) |
|
19032127AFAN AXIAL 80X32MM 24VDC ST24A3 Comair Rotron |
4,718 |
|
Datasheet |
|
Sprint | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Sleeve | Tubeaxial | - | 40.9dB(A) | 3.3 W | 3440 RPM | 2 Wire Leads | - | - | - | 0.397 lb (180.08 g) |
|
19031156AFAN AXIAL 60X25MM 12VDC FS12B3 Comair Rotron |
2,155 |
|
Datasheet |
|
Flight II 60 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 33.9dB(A) | 2.5 W | 5000 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|

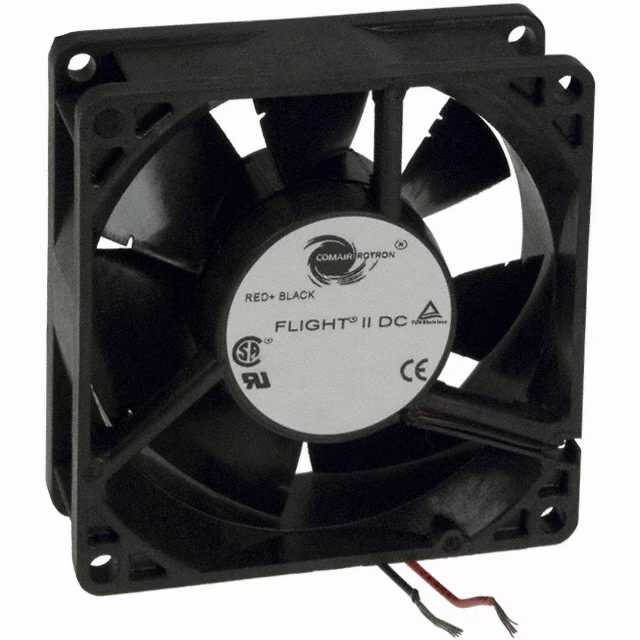

19031162AFAN AXIAL 80X25.4MM 12VDC FE12B3 Comair Rotron |
3,528 |
|
Datasheet |
|
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | Tubeaxial | - | 36.2dB(A) | 2 W | 3574 RPM | 2 Wire Leads | - | - | - | 0.287 lb (130.18 g) |
|
|
19031163AFAN AXIAL 80X25.4MM 24VDC FE24B3 Comair Rotron |
3,073 |
|
Datasheet |
|
Flight II 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | Tubeaxial | - | 36.2dB(A) | 2 W | 3628 RPM | 2 Wire Leads | - | - | - | 0.287 lb (130.18 g) |
|

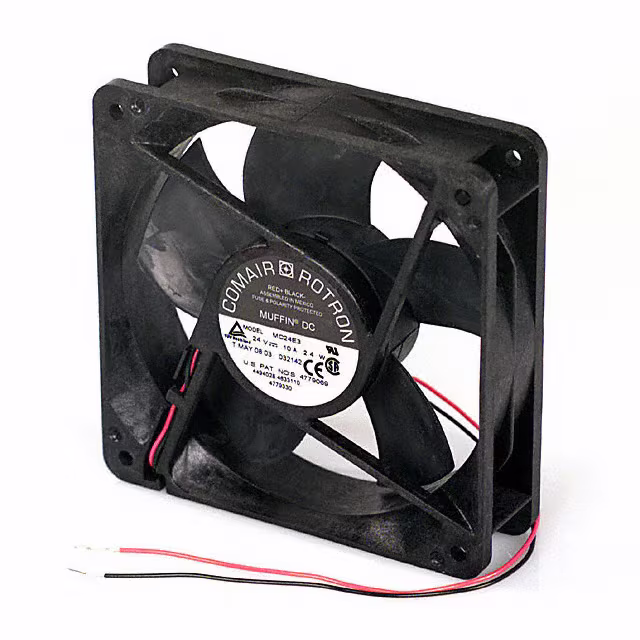

19032142AFAN AXIAL 120X32MM 24VDC MC24E3 Comair Rotron |
2,328 |
|
Datasheet |
|
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | Tubeaxial | - | 39.7dB(A) | 2.4 W | 2170 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|

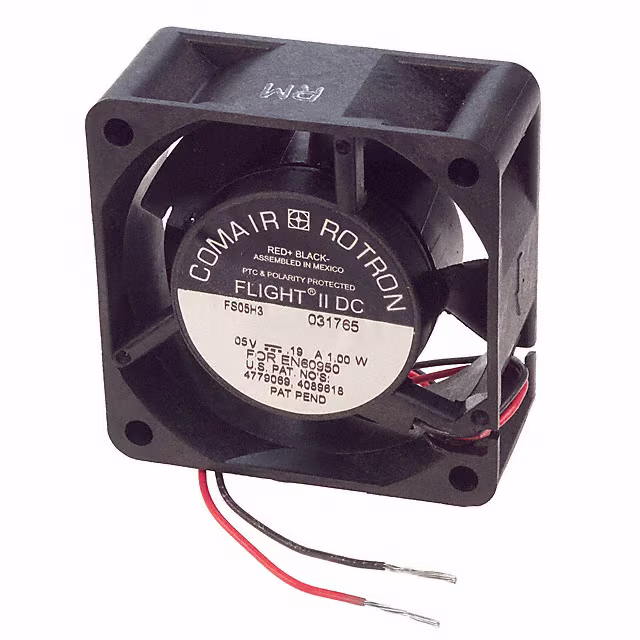

19031765AFAN AXIAL 60X25MM BALL 5V FS05H3 Comair Rotron |
2,197 |
|
Datasheet |
|
Flight II 60 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 12.0 CFM (0.336m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | - | 28.5dB(A) | 1 W | 3500 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|
19031164AFAN AXIAL 80X25.4MM 12VDC FE12H3 Comair Rotron |
2,214 |
|
Datasheet |
|
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 27.0 CFM (0.756m³/min) | 0.123 in H2O (30.6 Pa) | Ball | Tubeaxial | - | 28.9dB(A) | 1 W | 2737 RPM | 2 Wire Leads | - | - | - | 0.287 lb (130.18 g) |
