DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
06015VA-12M-AL-00FAN AXIAL 60X15MM 12VDC WIRE |
2,044 |
|
- |
 |
06015VA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB | 1.3 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06015VA-24P-AL-00FAN AXIAL 60X15MM 24VDC WIRE |
3,090 |
|
- |
|
06015VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.5dB | 1.7 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06015VA-24N-AL-00FAN AXIAL 60X15MM 24VDC WIRE |
4,320 |
|
- |
|
06015VA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.7 CFM (0.496m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.5dB | 1.4 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
(8020BF)(8038BF).jpg)
|
CFM-8015BF-140-363-22FAN AXIAL 80X15.4MM 12VDC WIRE |
4,332 |
|
Datasheet |
|
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 46.5 CFM (1.30m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.3dB(A) | 5.4 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-979433B-130-507-22FAN BLOWER 97.68X32.7MM 12VDC |
3,699 |
|
Datasheet |
|
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 32.70mm | 20.5 CFM (0.574m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.7dB(A) | 6.48 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025BF).jpg)
|
CFM-6025BF-250-351-22FAN AXIAL 60X25.4MM 24VDC WIRE |
3,498 |
|
Datasheet |
|
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 2.64 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BF-165-408-22FAN AXIAL 60X25.4MM 12VDC WIRE |
4,395 |
|
Datasheet |
|
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.9dB(A) | 5.04 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB04505LA-CF00FAN BLOWER 45X10.3MM 5VDC WIRE |
3,479 |
|
Datasheet |
|
BFB | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.30mm | 2.0 CFM (0.056m³/min) | 0.212 in H2O (52.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 21.5dB(A) | 400 mW | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.04 lb (18.14 g) |
|
BFB04505HA-CF00FAN BLOWER 45X10.3MM 5VDC WIRE |
2,212 |
|
Datasheet |
|
BFB | Box | Active | 5VDC | Square - 45mm L x 45mm H | 10.30mm | 3.0 CFM (0.084m³/min) | 0.391 in H2O (97.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.5dB(A) | 800 mW | 5150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.04 lb (18.14 g) |
|
DC0351012U2B-2T0FAN AXIAL 35X10MM 12VDC WIRE |
4,619 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 360 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
DC0922512M2B-3T0FAN AXIAL 92X25MM 12VDC WIRE |
2,464 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0922512J2B-3T0FAN AXIAL 92X25MM 12VDC WIRE |
2,458 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.08 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0922512H2B-3T0FAN AXIAL 92X25MM 12VDC WIRE |
2,900 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 58.2 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0922524L2B-2T0FAN 92X25MM 24VDC |
2,124 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 44.8 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 2.64 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922524H2B-2T0FAN 92X25MM 24VDC |
2,920 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 4.8 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922524J2B-2T0FAN 92X25MM 24VDC |
3,229 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 2.16 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

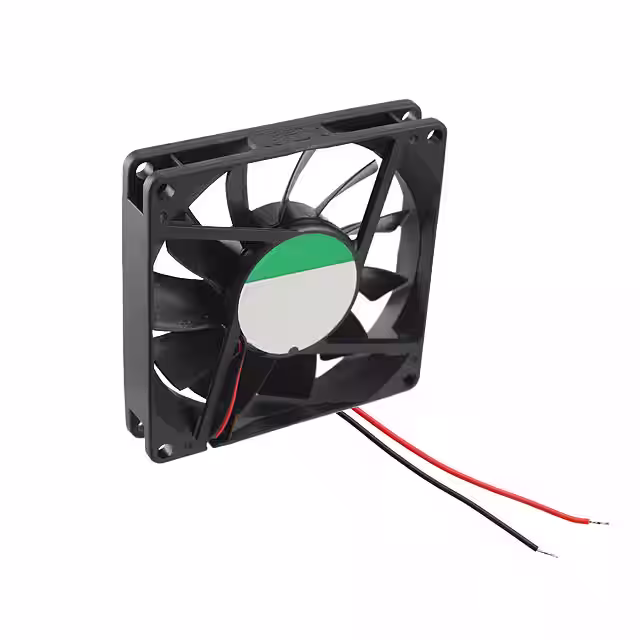

KD1208PHB1.13.(2).GNFAN AXIAL 80X15MM 12VDC WIRE |
2,383 |
|
Datasheet |
|
KD | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 40.0 CFM (1.12m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.5 W | 3000 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.15 lb (68.04 g) |
|

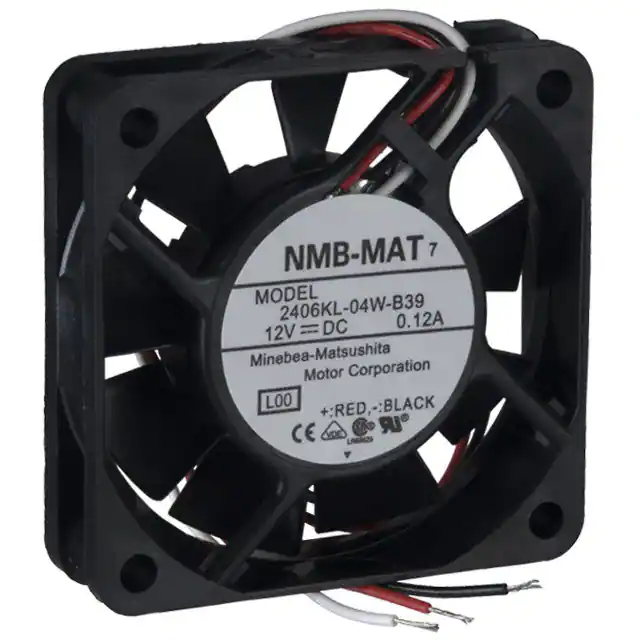

2406KL-04W-B39-L00FAN AXIAL 60X15MM 12VDC WIRE |
3,228 |
|
Datasheet |
|
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.125 in H2O (31.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.08 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.099 lb (44.91 g) |
|
2406KL-05W-B29-L50FAN AXIAL 60X15MM 24VDC WIRE |
3,990 |
|
Datasheet |
|
06015KA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 11.6 CFM (0.325m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 1.44 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.099 lb (44.91 g) |
|
|
06015KA-12M-AL-00FAN AXIAL 60X15MM 12VDC TERM |
2,270 |
|
Datasheet |
|
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.9 CFM (0.445m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.0dB | 1.56 W | 4100 RPM | 3 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
