DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC0922524M2B-2T2FAN 92X25MM 24VDC MOLEX 22-01-10 |
3,965 |
|
Datasheet |
 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 3.36 W | 2850 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0351005W2B-2T2FAN 35X10MM 5VDC MOLEX 22-01-102 |
4,050 |
|
Datasheet |
|
- | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 540 mW | 9000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
06023GA-12M-AL-00FAN BLOWER 60.6X23MM 12VDC WIRE |
3,357 |
|
- |
|
06023GA | Bulk | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 23.00mm | 7.7 CFM (0.216m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 37.0dB | 2.76 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06023GA-12N-AT-00FAN BLOWER 60.6X23MM 12VDC WIRE |
2,634 |
|
- |
|
06023GA | Bulk | Active | 12VDC | Square/Rounded - 60.6mm L x 59.9mm H | 23.00mm | 8.4 CFM (0.235m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 41.0dB | 3.12 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
06023GA-24N-AT-00FAN BLOWER 60.6X23MM 24VDC WIRE |
4,097 |
|
- |
|
06023GA | Bulk | Active | 24VDC | Square/Rounded - 60.6mm L x 59.9mm H | 23.00mm | - | - | Ball | Blower | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
9A0912M402FAN AXIAL 92X25MM 12VDC WIRE |
4,586 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.44 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912F402FAN AXIAL 92X25MM 12VDC WIRE |
2,641 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.68 W | 2650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912F4021FAN AXIAL 92X25MM 12VDC WIRE |
3,445 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.68 W | 2650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912L402FAN AXIAL 92X25MM 12VDC WIRE |
4,303 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 840 mW | 1750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912L4021FAN AXIAL 92X25MM 12VDC WIRE |
3,182 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 840 mW | 1750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0912M4021FAN AXIAL 92X25MM 12VDC WIRE |
3,999 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.44 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
109P0512M702FAN AXIAL 52X15MM 12VDC WIRE |
2,450 |
|
Datasheet |
|
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 0.205 CFM (0.006m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 840 mW | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
109P0505M702FAN AXIAL 52X15MM BALL 5VDC WIRE |
4,250 |
|
Datasheet |
|
San Ace 52 | Box | Active | 5VDC | Square - 52mm L x 52mm H | 15.00mm | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 750 mW | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
E9225X12B1-FSRFAN AXIAL 92X25MM 12VDC WIRE |
2,901 |
|
Datasheet |
|
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
MD4028V24B-FSR-PCFAN AXIAL 40X28MM 24VDC WIRE |
2,754 |
|
Datasheet |
|
MD4028 | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 24.3 CFM (0.680m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Tubeaxial | Parylene Coating, Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
AFB0612HH-TA50FAN AXIAL 60X25.4MM 12VDC WIRE |
3,068 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.04 W | 5000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
.GN.JPG)
|

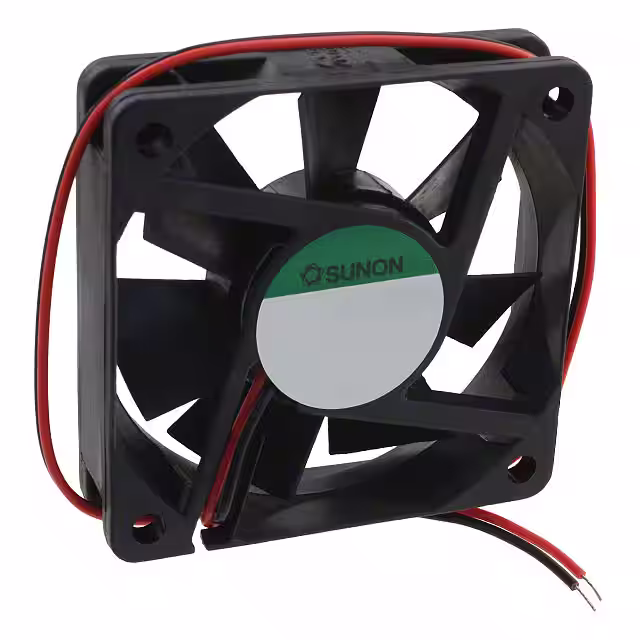

KD1206PHB1.(2).GNFAN AXIAL 60X15MM 12VDC WIRE |
2,080 |
|
Datasheet |
|
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 37.0dB(A) | 1.9 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.092 lb (41.73 g) |
|
|
KD1206PHB2.(2).GNFAN AXIAL 60X15MM 12VDC WIRE |
2,192 |
|
Datasheet |
|
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.1 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
DC0351012V2B-3T3FAN 35X10MM 12VDC TACH MOLEX 22- |
2,718 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 480 mW | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0351012U2B-3T3FAN 35X10MM 12VDC TACH MOLEX 22- |
2,018 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 360 mW | 7000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
