DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR3010H12B1-RSRFAN AXIAL 30X10MM 12VDC WIRE |
2,620 |
|
Datasheet |
 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.6dB(A) | - | 10000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010L05B1-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
3,917 |
|
Datasheet |
|
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010L05B2-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
3,727 |
|
Datasheet |
|
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010L12B1-RSRFAN AXIAL 30X10MM 12VDC WIRE |
4,883 |
|
Datasheet |
|
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M05B1-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
2,237 |
|
Datasheet |
|
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.2dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
CFM-9225BG-250-502DC AXIAL FAN, 92 MM SQUARE, 25 M |
3,530 |
|
Datasheet |
|
CFM-92BG | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 88.2 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 6.48 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

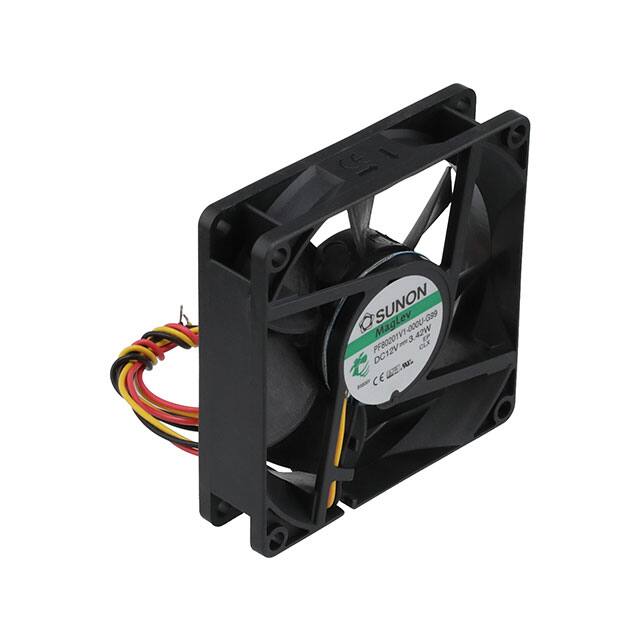

PF80201V1-000U-G99FAN AXIAL 80X20MM 12VDC WIRE |
2,942 |
|
Datasheet |
|
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 3.42 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.188 lb (85.28 g) |
|
PF80201V1-000U-F99FAN AXIAL 80X20MM 12VDC WIRE |
2,120 |
|
Datasheet |
|
MagLev® PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 48.0dB(A) | 3.42 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.188 lb (85.28 g) |
|
OD9225-24HHBXEFAN AXIAL 92X25.5MM 24VDC WIRE |
2,772 |
|
Datasheet |
|
OD9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 102.8 CFM (2.88m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 55.2dB(A) | 10.3 W | 5475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-12HHBXEFAN AXIAL 92X25.5MM 12VDC WIRE |
2,500 |
|
Datasheet |
|
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 102.8 CFM (2.88m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 55.2dB(A) | 10.3 W | 5475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-12LBXEFAN AXIAL 92X25.5MM 12VDC WIRE |
2,182 |
|
Datasheet |
|
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 75.7 CFM (2.12m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 4.3 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-12MBXEFAN AXIAL 92X25.5MM 12VDC WIRE |
4,411 |
|
Datasheet |
|
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 84.8 CFM (2.37m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 5.5 W | 4490 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
MR9225E24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
4,510 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.8dB(A) | - | 4400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225E24B2-FSRFAN AXIAL 92X25MM 24VDC WIRE |
4,320 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 50.8dB(A) | - | 4400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225H24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
3,068 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225H24B2-FSRFAN AXIAL 92X25MM 24VDC WIRE |
3,380 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 48.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225L24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
2,697 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.0 CFM (1.90m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.9dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225L24B2-FSRFAN AXIAL 92X25MM 24VDC WIRE |
4,342 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 68.0 CFM (1.90m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.9dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225M24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
2,622 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.1dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
|
|
MR9225M24B2-FSRFAN AXIAL 92X25MM 24VDC WIRE |
4,083 |
|
Datasheet |
|
MR9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.1dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.264 lb (119.75 g) |
