DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0612H402FAN AXIAL 60X25MM 12VDC WIRE |
4,378 |
|
Datasheet |
 |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.32 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0612M402FAN AXIAL 60X25MM 12VDC WIRE |
4,557 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0612M4021FAN AXIAL 60X25MM 12VDC WIRE |
4,652 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624F402FAN AXIAL 60X25MM 24VDC WIRE |
4,590 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.2 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624F4021FAN AXIAL 60X25MM 24VDC WIRE |
3,996 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.2 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624M402FAN AXIAL 60X25MM 24VDC WIRE |
4,210 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624M4021FAN AXIAL 60X25MM 24VDC WIRE |
4,062 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|
|
9A0624S402FAN AXIAL 60X25MM 24VDC WIRE |
2,680 |
|
Datasheet |
|
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.176 lb (80.00 g) |
|

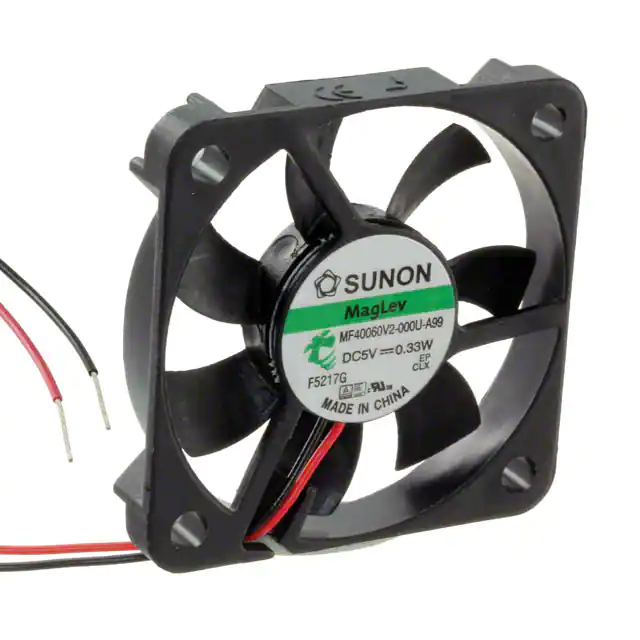

MF40060V2-000U-A99FAN AXIAL 40X6.9MM 5VDC WIRE |
2,212 |
|
Datasheet |
|
MagLev® MF | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.90mm | 5.5 CFM (0.154m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.5dB(A) | 300 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|
MR4020H12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
4,018 |
|
Datasheet |
|
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.1dB(A) | - | 9500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020H24B1+6-RSRFAN AXIAL 40X20MM 24VDC WIRE |
2,455 |
|
Datasheet |
|
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.1dB(A) | - | 9500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020L12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
4,221 |
|
Datasheet |
|
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.5dB(A) | - | 6500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020M12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
2,742 |
|
Datasheet |
|
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.8dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020M24B1+6-RSRFAN AXIAL 40X20MM 24VDC WIRE |
2,047 |
|
Datasheet |
|
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.8dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020X12B1+6-RSRFAN AXIAL 40X20MM 12VDC WIRE |
3,004 |
|
Datasheet |
|
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | - | 12000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
EF92251BX-1000U-G9912VDC FAN 92X25MM ALARM |
3,882 |
|
Datasheet |
|
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 36.9dB(A) | 1.62 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50201V1-1B00U-A99FAN BLOWER |
2,401 |
|
Datasheet |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF50201V3-1B00U-A99Thermal Products |
4,355 |
|
Datasheet |
|
MF | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.8 CFM (0.134m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 27.5dB(A) | 900 mW | 4350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF50201V2-1B00U-A99Thermal Products |
3,573 |
|
Datasheet |
|
MF | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.1 CFM (0.143m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 30.0dB(A) | 1.2 W | 4650 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
CFM-4020BG-1100-389-20FAN AXIAL 40X20MM 12VDC WIRE |
2,801 |
|
Datasheet |
|
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.8 CFM (0.330m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.9dB(A) | 2.4 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
