DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASB02512VHA-A76NFAN AXIAL 25X10MM 12VDC WIRE Delta Electronics |
9,664 |
|
Datasheet |
 |
ASB | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.4 CFM (0.095m³/min) | 0.214 in H2O (53.3 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 600 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 167°F (-10 ~ 75°C) | cURus, TUV | 0.014 lb (6.35 g) |
|
AFB0912VHFAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
6,850 |
|
Datasheet |
|
AFB | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.8 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.218 lb (98.88 g) |
|

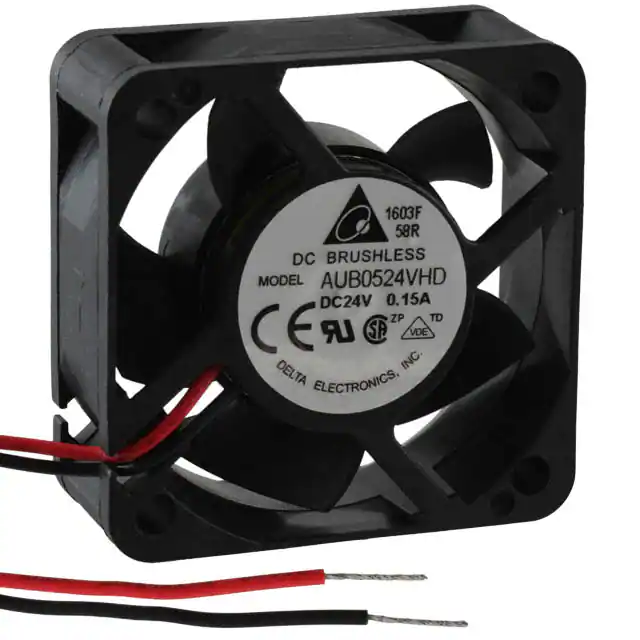

AUB0524VHDFAN AXIAL 50X20MM 24VDC WIRE Delta Electronics |
1,269 |
|
Datasheet |
|
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 2.4 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
ASB0412VHA-AF00FAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
2,815 |
|
Datasheet |
|
ASB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.5 CFM (0.266m³/min) | 0.253 in H2O (63.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 960 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|
AFB0512HHB-F00FAN AXIAL 50X15MM 12VDC WIRE Delta Electronics |
2,853 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.56 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0405LA-AFAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
4,714 |
|
Datasheet |
|
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 150 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
ASB02505SHA-AY6BFAN AXIAL 25X10MM 5VDC WIRE Delta Electronics |
1,995 |
|
Datasheet |
|
ASB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.320 in H2O (79.7 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 600 mW | 15000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.014 lb (6.35 g) |
|
AFC0712DD-TP10FAN AXIAL 70X20MM 12VDC WIRE Delta Electronics |
7,661 |
|
Datasheet |
|
AFC | Box | Active | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 46.9 CFM (1.31m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.3dB(A) | 4.2 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, TUV, UL | 0.154 lb (69.85 g) |
|
BFB03505HA-CFAN BLOWER 35X10MM 5VDC WIRE Delta Electronics |
790 |
|
Datasheet |
|
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Blower | Locked Rotor Protection | 29.0dB(A) | 650 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB03512HHA-CFAN BLOWER 35X10MM 12VDC WIRE Delta Electronics |
409 |
|
Datasheet |
|
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection | 31.0dB(A) | 1.32 W | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
