DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

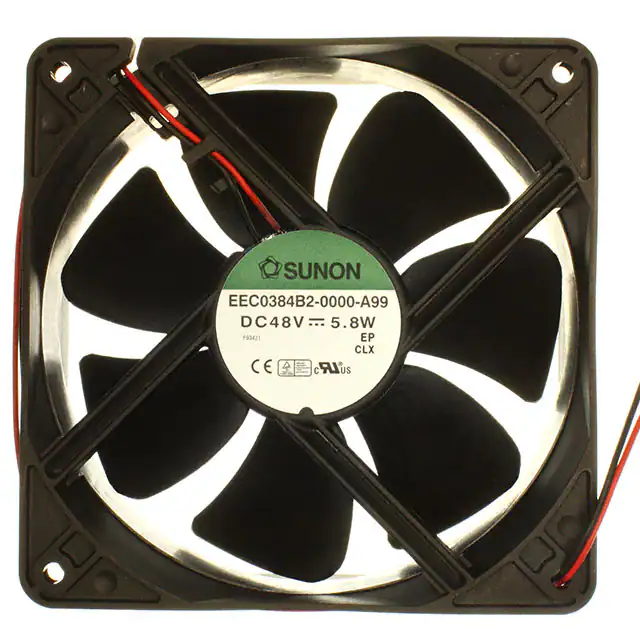

EEC0384B2-000U-A99FAN AXIAL 120X38MM 48VDC WIRE |
8,583 |
|
Datasheet |
 |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 5.8 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.472 lb (214.1 g) |
|
F410T-05LCFAN AXIAL 40X10MM 5VDC WIRE |
1,134 |
|
Datasheet |
|
F410T | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 3.9 CFM (0.109m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | Tubeaxial | - | 12.0dB(A) | 400 mW | 4600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
F310R-12LCFAN AXIAL 30X10MM 12VDC WIRE |
1,791 |
|
Datasheet |
|
F310R | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | Tubeaxial | - | 17.0dB(A) | 480 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.018 lb (8.16 g) |
|
CFM-4010-03-10FAN AXIAL 40X10.6MM 5VDC WIRE |
554 |
|
Datasheet |
|
CFM-40 | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.60mm | 10.0 CFM (0.280m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB(A) | 1.2 W | 8300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.031 lb (14.06 g) |
|
F251R-12LLCFAN AXIAL 25X10MM 12VDC WIRE |
1,871 |
|
Datasheet |
|
F251R | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 11.0dB(A) | 360 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
|
F251R-05LLCFAN AXIAL 25X10MM 5VDC WIRE |
1,100 |
|
Datasheet |
|
F251R | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | Tubeaxial | - | 11.0dB(A) | 250 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.015 lb (6.8 g) |
|
M5010E05C-RSRFAN AXIAL 50X10MM 5VDC WIRE |
754 |
|
Datasheet |
|
M5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 9.9 CFM (0.277m³/min) | 0.140 in H2O (34.9 Pa) | 1 Ball/1 Sleeve | Tubeaxial | - | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.046 lb (20.87 g) |
|

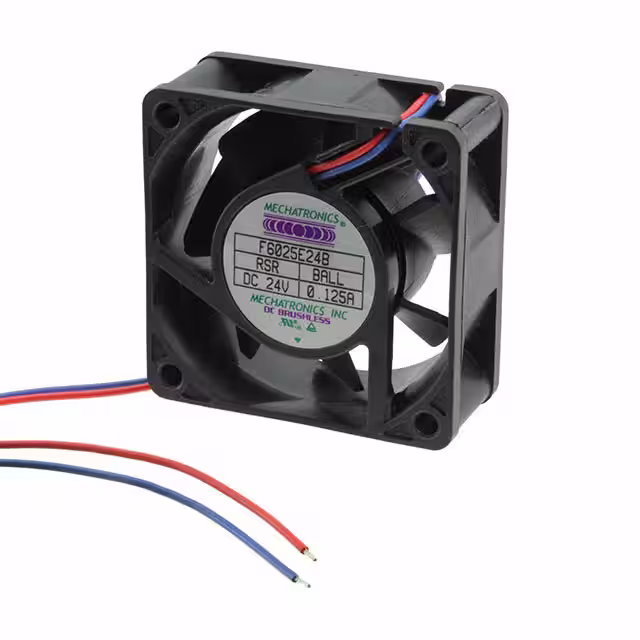

F6025E24B-RSRFAN AXIAL 60X25MM 24VDC WIRE |
714 |
|
Datasheet |
|
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 36.0dB(A) | - | 4600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

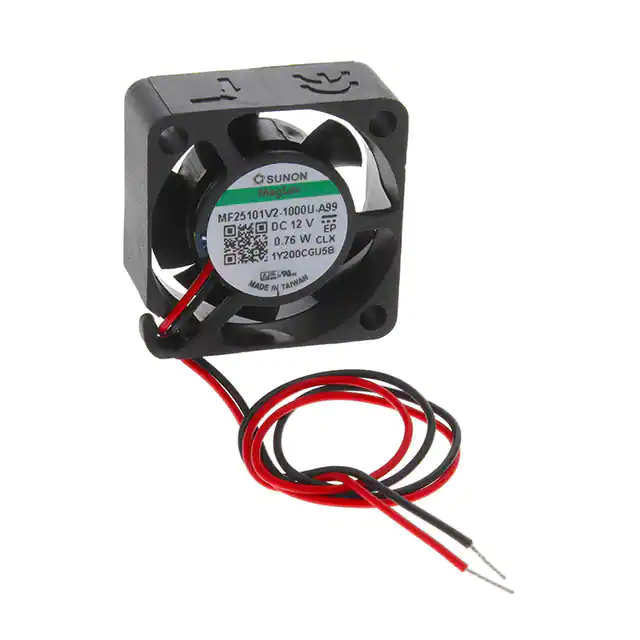

MF25101V2-1000U-A99FAN AXIAL 25X10MM 12VDC WIRE |
6,143 |
|
Datasheet |
|
MagLev® MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.0dB(A) | 360 mW | 9600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|

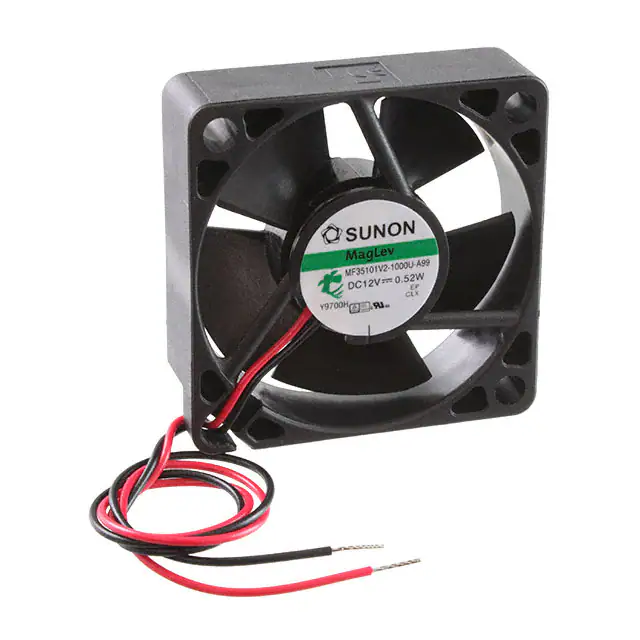

MF35101V2-1000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
2,166 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.8dB(A) | 420 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.024 lb (10.89 g) |
|

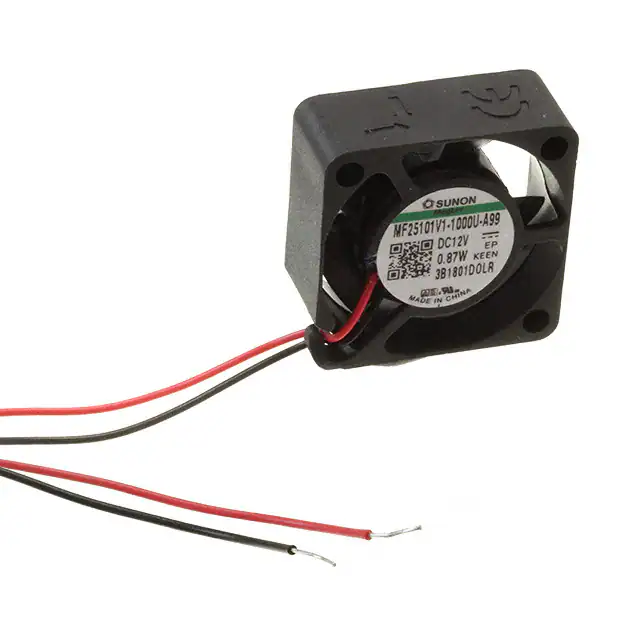

MF25101V1-1000U-A99FAN AXIAL 25X10MM 12VDC WIRE |
1,832 |
|
Datasheet |
|
MagLev® MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.8 CFM (0.106m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.0dB(A) | 600 mW | 14000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.015 lb (6.8 g) |
|

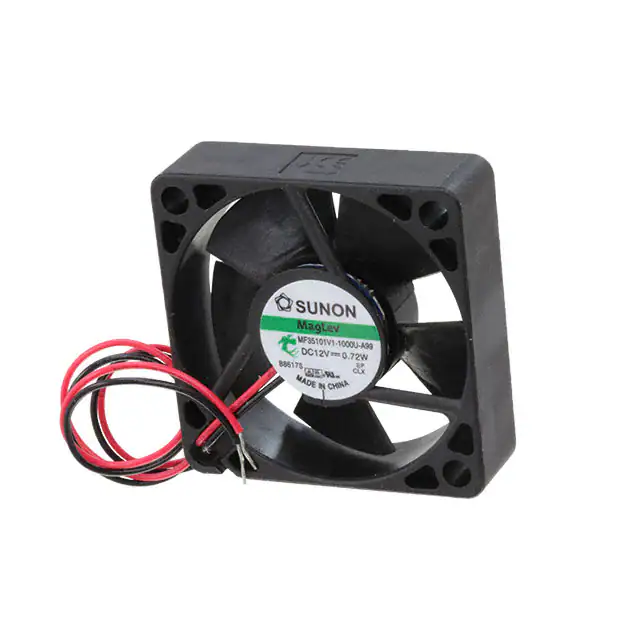

MF35101V1-1000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
1,694 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 720 mW | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.024 lb (10.89 g) |
|

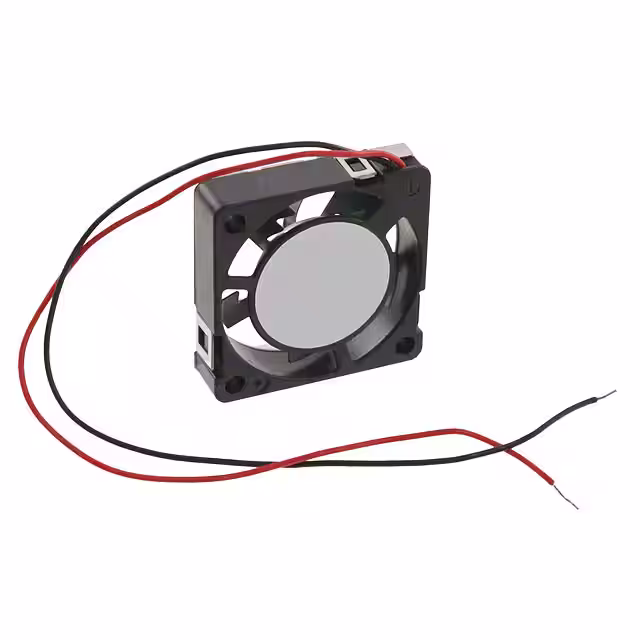

F16EA-03LLC /EFAN AXIAL 16X4MM 3.3VDC WIRE |
795 |
|
Datasheet |
|
F16EA | Bulk | Active | 3.3VDC | Square - 16mm L x 16mm H | 4.00mm | 0.424 CFM (0.012m³/min) | 0.019 in H2O (4.7 Pa) | Sleeve | Tubeaxial | - | 3.0dB(A) | 70 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.003 lb (1.36 g) |
|
MEC0251V3-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
22,561 |
|
Datasheet |
|
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.0dB(A) | 1.9 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.357 lb (161.93 g) |
|
G4010H24B-RSRFAN AXIAL 40X10.3MM 24VDC WIRE |
932 |
|
Datasheet |
|
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|

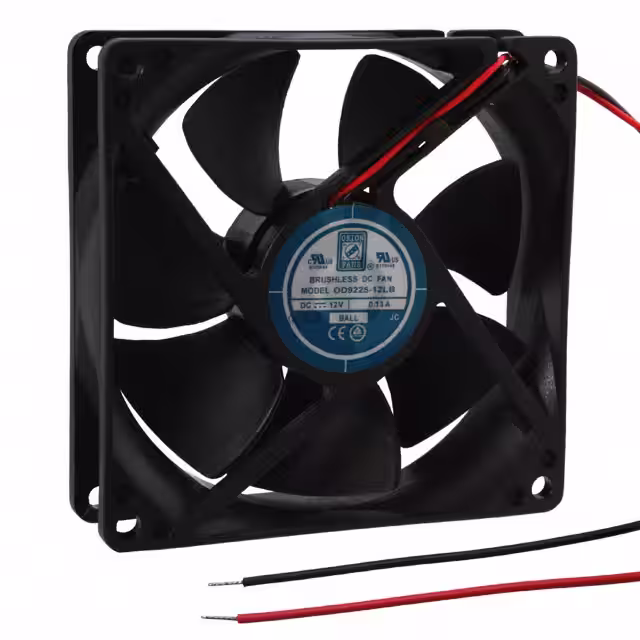

OD9225-12LBFAN AXIAL 92.5X25MM 12VDC WIRE |
918 |
|
Datasheet |
|
OD9225 | Box | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | - | 2100 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

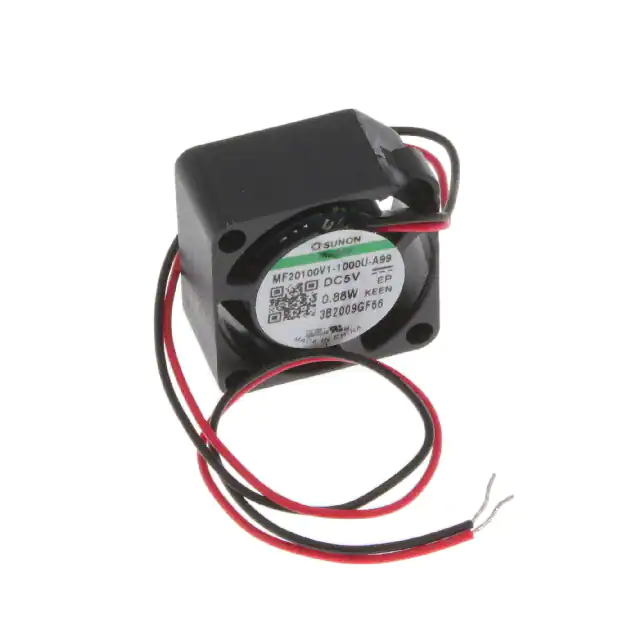

MF20100V1-1000U-A99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
6,798 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.0dB(A) | 530 mW | 16500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.011 lb (4.99 g) |
|

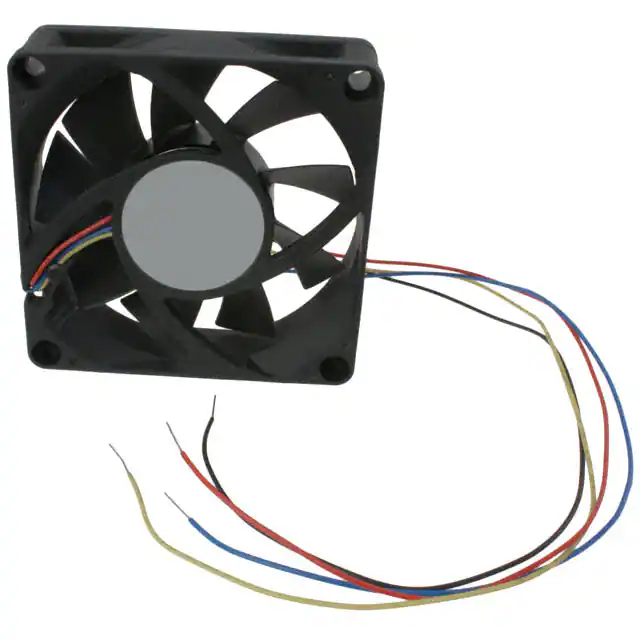

AFC0712DD-TP10FAN AXIAL 70X20MM 12VDC WIRE |
7,661 |
|
Datasheet |
|
AFC | Box | Active | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 46.9 CFM (1.31m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.3dB(A) | 4.2 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, TUV, UL | 0.154 lb (69.85 g) |
|

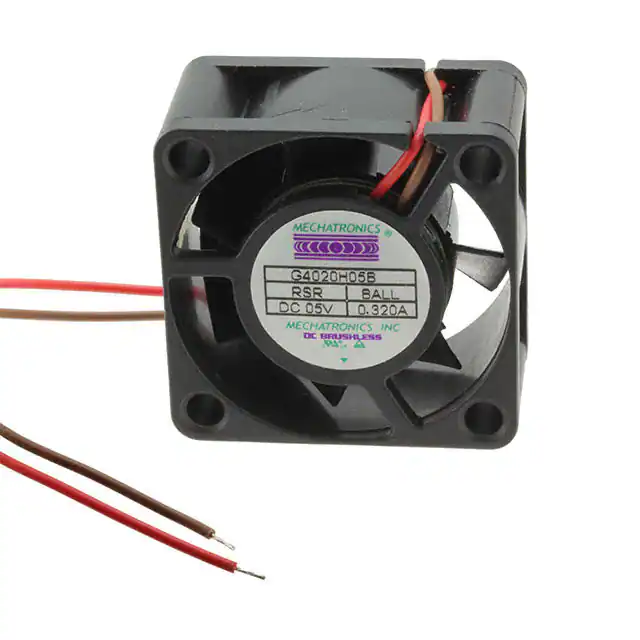

G4020H05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
2,372 |
|
Datasheet |
|
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020H24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
297 |
|
Datasheet |
|
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
