DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
4,261 |
|
Datasheet |
 |
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 31.6dB(A) | - | 10000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010L12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
2,697 |
|
Datasheet |
|
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.1 CFM (0.115m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.5dB(A) | - | 6000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M05B2-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
4,701 |
|
Datasheet |
|
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.2dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M12B1-RSRFAN AXIAL 30X10MM 12VDC WIRE |
4,414 |
|
Datasheet |
|
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.2dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
|
MR3010M12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
2,970 |
|
Datasheet |
|
MR3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 5.4 CFM (0.151m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.2dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|

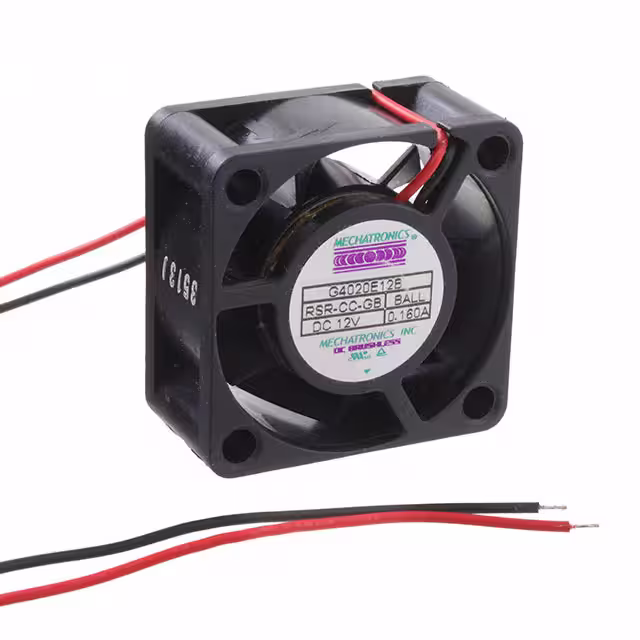

G4020E12B-RSR-CC-GBFAN AXIAL 40X20MM 12VDC WIRE |
2,604 |
|
Datasheet |
|
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
G4020L05B1+6-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
2,112 |
|
Datasheet |
|
G4020 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 23.0dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
|
G4020H05B1+6-RSR-WSFAN AXIAL 40X20MM 5VDC WIRE |
3,747 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-8025BG-180-546FAN AXIAL 80X25.4MM 12VDC WIRE |
4,401 |
|
Datasheet |
|
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 1.090 in H2O (271.5 Pa) | Ball | Tubeaxial | Auto Restart | 54.7dB(A) | 13.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG-280-546FAN AXIAL 80X25.4MM 24VDC WIRE |
2,766 |
|
Datasheet |
|
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 1.090 in H2O (271.5 Pa) | Ball | Tubeaxial | Auto Restart | 54.7dB(A) | 13.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG-190-572FAN AXIAL 80X25.4MM 12VDC WIRE |
4,623 |
|
Datasheet |
|
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 93.0 CFM (2.60m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Tubeaxial | Auto Restart | 57.3dB(A) | 18.24 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-A232B-225-481-22FAN BLOWER 119.3X32MM 24VDC WIRE |
3,819 |
|
Datasheet |
|
CBM-120B-2 | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.2dB(A) | 8.64 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-A232B-125-482-22FAN BLOWER 119.3X32MM 12VDC WIRE |
3,224 |
|
Datasheet |
|
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.2dB(A) | 6.84 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
04028DA-12P-AUF-0FAN AXIAL 40X28MM 12VDC WIRE |
2,663 |
|
- |
|
04028DA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.1 CFM (0.367m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.0dB | 2.16 W | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
04028DA-12Q-AUF-0FAN AXIAL 40X28MM 12VDC WIRE |
4,644 |
|
- |
|
04028DA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.6 CFM (0.465m³/min) | 1.370 in H2O (341.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.5dB | 3.48 W | 15000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0602548J2B-BT4FAN 60X25MM 48VDC PWM/TACH MOLEX |
4,232 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 26.0dB(A) | 9.6 W | 3100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548H2B-BT4FAN 60X25MM 48VDC PWM/TACH MOLEX |
2,229 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 13.44 W | 5000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548L2B-BT4FAN 60X25MM 48VDC PWM/TACH MOLEX |
2,446 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 5.76 W | 3600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548M2B-BT4FAN 60X25MM 48VDC PWM/TACH MOLEX |
3,544 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 7.2 W | 4250 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
F8025H24B1-FSRFAN AXIAL 80X25MM 24VDC WIRE |
2,384 |
|
Datasheet |
|
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
