DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC0402024V2B-BT4FAN 40X20MM 24VDC PWM/TACH MOLEX |
4,767 |
|
Datasheet |
 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 9.84 W | 16000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
GF92252B7-000U-AC9Thermal Products |
3,980 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB(A) | 1.13 W | 2400 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B6-000U-AC9Thermal Products |
3,601 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B5-000U-AC9Thermal Products |
4,063 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 2.09 W | 3000 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
(9238S).jpg)
|
CFM-9238S-250-532-22FAN AXIAL 92X37.5MM 24VDC WIRE |
4,511 |
|
Datasheet |
|
CFM-92S | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.3dB(A) | 12.48 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238S-148-523-22FAN AXIAL 92X37.5MM 12VDC WIRE |
2,369 |
|
Datasheet |
|
CFM-92S | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.3dB(A) | 11.4 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

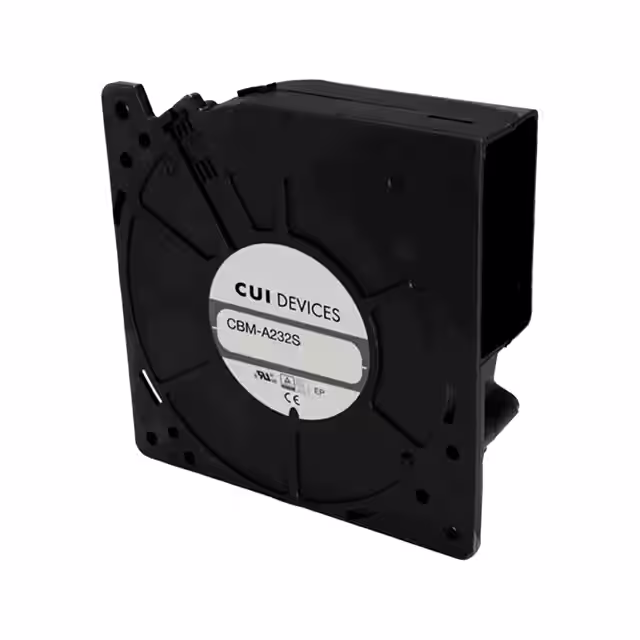

CBM-A232S-225-481-22FAN BLOWER 119.3X32MM 24VDC |
2,310 |
|
Datasheet |
|
CBM-120S | Box | Active | 24VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.2dB(A) | 8.64 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DB0551212L2B-2T0FAN BLOWER 62.7X13.9MM 12VDC |
2,444 |
|
Datasheet |
|
DB | Box | Active | 12VDC | Rectangular/Rounded - 62.7mm L x 55mm H | 13.90mm | 3.5 CFM (0.098m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Blower | Locked Rotor Protection | 27.0dB(A) | 1.92 W | 3500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0551212M2B-2T0FAN BLOWER 62.7X13.9MM 12VDC |
3,287 |
|
Datasheet |
|
DB | Box | Active | 12VDC | Rectangular/Rounded - 62.7mm L x 55mm H | 13.90mm | 4.2 CFM (0.118m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Blower | Locked Rotor Protection | 30.0dB(A) | 2.76 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DB0551212H2B-2T0FAN BLOWER 62.7X13.9MM 12VDC |
4,104 |
|
Datasheet |
|
DB | Box | Active | 12VDC | Rectangular/Rounded - 62.7mm L x 55mm H | 13.90mm | 5.1 CFM (0.143m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Blower | Locked Rotor Protection | 33.0dB(A) | 3.96 W | 4900 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
DC0402812U2B-3T3FAN 40X28MM 12VDC TACH MOLEX 22- |
2,662 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 7.68 W | 15000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PMD1208PHB1-A.(2).GNFAN AXIAL 80X15MM 12VDC WIRE |
4,995 |
|
Datasheet |
|
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PHB2-A.(2).GNFAN AXIAL 80X15MM 12VDC WIRE |
2,990 |
|
Datasheet |
|
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
PMD1208PHB3-A.(2).GNFAN AXIAL 80X15MM 12VDC WIRE |
3,966 |
|
Datasheet |
|
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
OD6025-12HHBIP68FAN AXIAL 60X25MM 12VDC WIRE |
2,860 |
|
Datasheet |
|
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 32.0 CFM (0.896m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 1.8 W | 4390 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | 0.141 lb (63.96 g) |
|
|
OD6025-12LBIP68FAN AXIAL 60X25MM 12VDC WIRE |
3,399 |
|
Datasheet |
|
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 20.0dB | 1 W | 2500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | 0.141 lb (63.96 g) |
|
|
OD6025-12MBIP68FAN AXIAL 60X25MM 12VDC WIRE |
3,418 |
|
Datasheet |
|
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB(A) | 1.5 W | 3150 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
|
OD6025-24HHBIP68FAN AXIAL 60X25MM 24VDC WIRE |
4,891 |
|
Datasheet |
|
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 32.0 CFM (0.896m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 2.8 W | 4390 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
|
OD6025-24LBIP68FAN AXIAL 60X25MM 24VDC WIRE |
3,203 |
|
Datasheet |
|
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 20.0dB(A) | 1 W | 2480 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
|
OD6025-24MBIP68FAN AXIAL 60X25MM 24VDC WIRE |
2,341 |
|
Datasheet |
|
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB(A) | 2.2 W | 3150 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
