DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

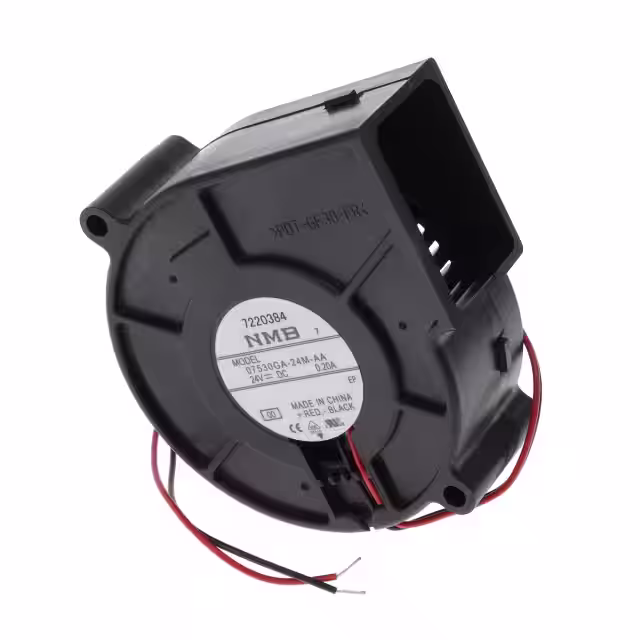

07530GA-24M-AA-00FAN BLOWER 75.7X30MM 24VDC WIRE |
874 |
|
Datasheet |
 |
07530GA | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.5 CFM (0.294m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Blower | Auto Restart | 38.5dB | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
DC0382012U2B-2T0FAN AXIAL 38X20MM 12VDC WIRE |
215 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 9.7 CFM (0.272m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 3.6 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MEC0382V2-000U-A99FAN AXIAL 120X38MM 24VDC WIRE |
3,312 |
|
Datasheet |
|
MagLev® MEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.0dB(A) | 5.4 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.481 lb (218.18 g) |
|
CFM-A238V-231-480FAN AXIAL 120X38MM 24VDC WIRE |
1,105 |
|
Datasheet |
|
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 10.57 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|

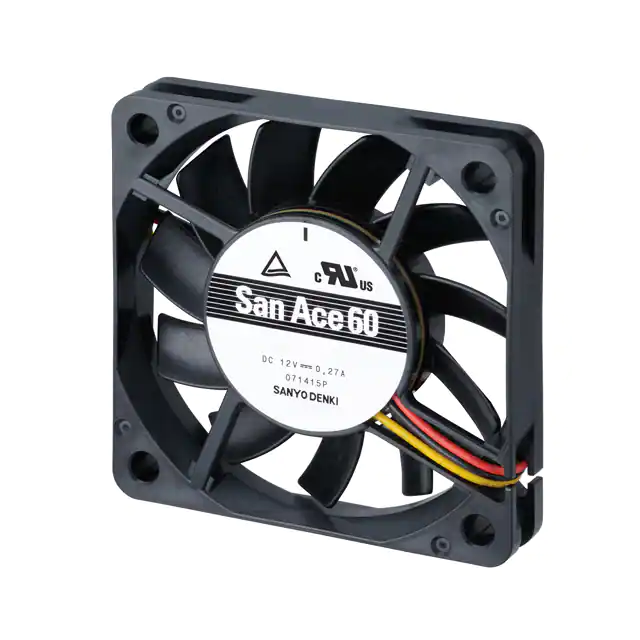

9GA0612L9001FAN AXIAL 60X15MM 12VDC WIRE |
352 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.037 in H2O (9.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 17.0dB(A) | 360 mW | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
9S0612F401FAN AXIAL 60X25MM 12VDC WIRE |
224 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.3 CFM (0.484m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
CFM-A225V-131-445-20FAN AXIAL 120X25MM 12VDC WIRE |
132 |
|
Datasheet |
|
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 4.84 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
EFB0412VHD-R00FAN AXIAL 40X20MM 12VDC WIRE |
5,440 |
|
Datasheet |
|
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.5dB(A) | 1.44 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|

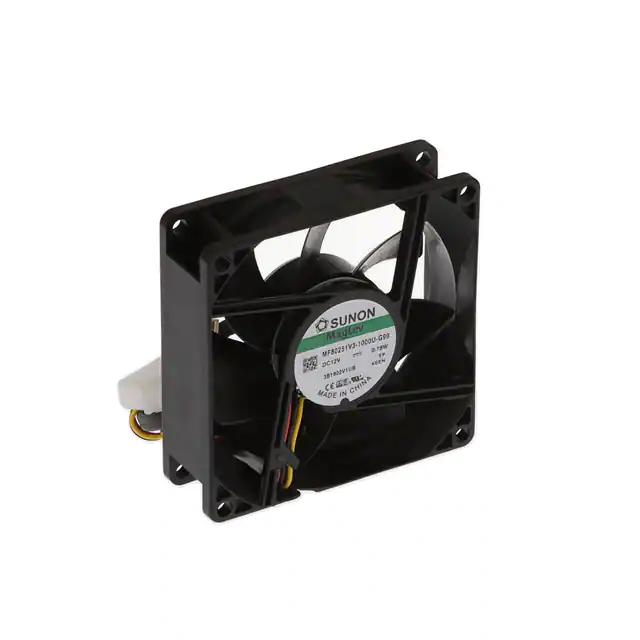

4084/MF80251V3-1000U-G99FAN AXIAL 80X25MM 12VDC RECT |
276 |
|
Datasheet |
|
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 780 mW | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.167 lb (75.75 g) |
|

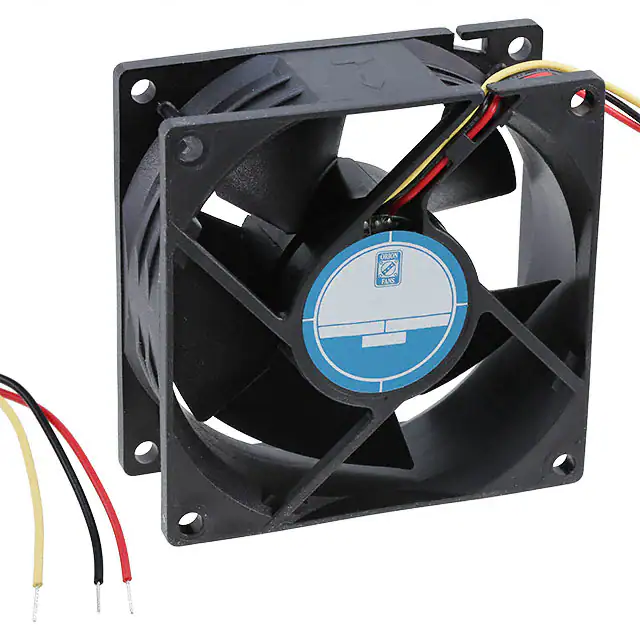

OD8032-24HHB02AFAN AXIAL 80X32MM 24VDC WIRE |
669 |
|
Datasheet |
|
OD8032 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 55.4 CFM (1.55m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 4.32 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | 0.238 lb (107.95 g) |
|

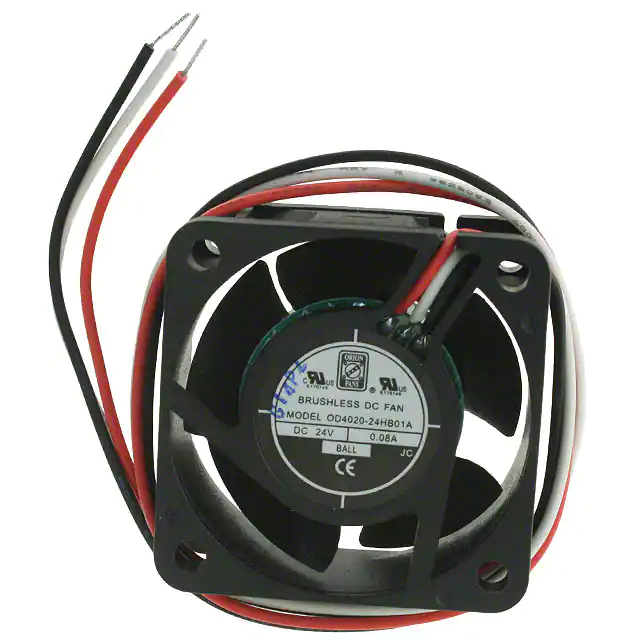

OD4020-24HB01AFAN AXIAL 40X20MM 24VDC WIRE |
617 |
|
Datasheet |
|
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.1dB(A) | 1.72 W | 8190 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|

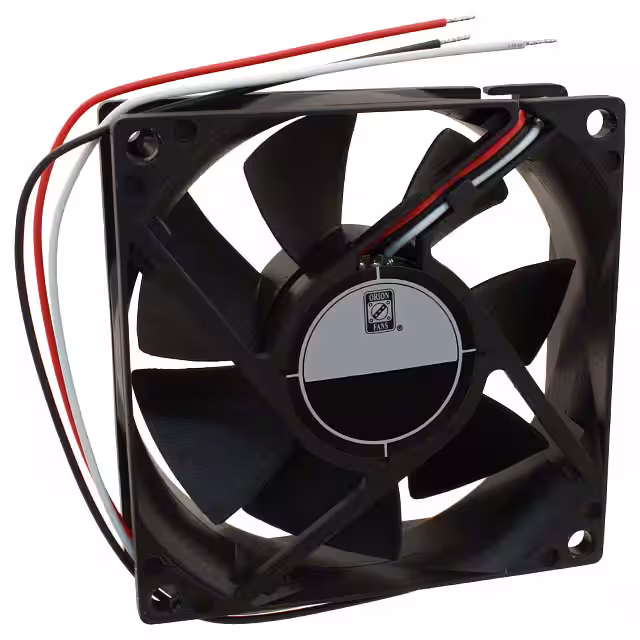

OD8025-24HB01AFAN AXIAL 80X25MM 24VDC WIRE |
318 |
|
Datasheet |
|
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB | 1.44 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) |
|

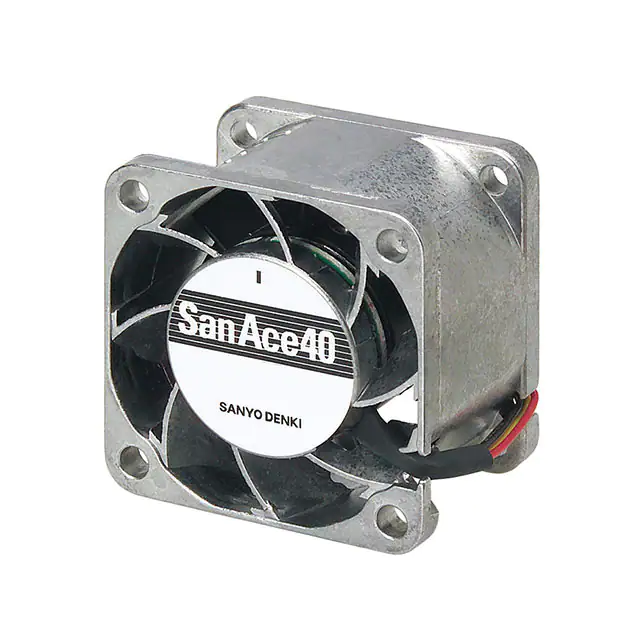

9GE0412P3K03FAN AXIAL 40X28MM 12VDC WIRE |
1,616 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.8 CFM (0.750m³/min) | 1.666 in H2O (415.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 10.08 W | 16500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.121 lb (54.88 g) |
|
109P0424G3023FAN AXIAL 40X28MM 24VDC WIRE |
427 |
|
Datasheet |
|
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 14.8 CFM (0.414m³/min) | 0.719 in H2O (179.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 4.56 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
DC0402012V2B-2T0FAN AXIAL 40X20MM 12VDC WIRE |
395 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 19.8 CFM (0.554m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 4.92 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0912HFAN AXIAL 92X25.4MM 12VDC WIRE |
134 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 1.92 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
109P0412G3013FAN AXIAL 40X28MM 12VDC WIRE |
255 |
|
Datasheet |
|
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.8 CFM (0.414m³/min) | 0.719 in H2O (179.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 3.72 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
04028DA-12R-AUF-0FAN AXIAL 40X28MM 12VDC WIRE |
200 |
|
Datasheet |
|
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.5dB | 5.16 W | 18000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.117 lb (53.07 g) |
|
|
04028DA-12S-AUF-AAFAN AXIAL 40X28MM 12VDC WIRE |
183 |
|
Datasheet |
|
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.7 CFM (0.692m³/min) | 2.750 in H2O (685.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.5dB | 9.36 W | 22000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cULus, VDE | - |
|

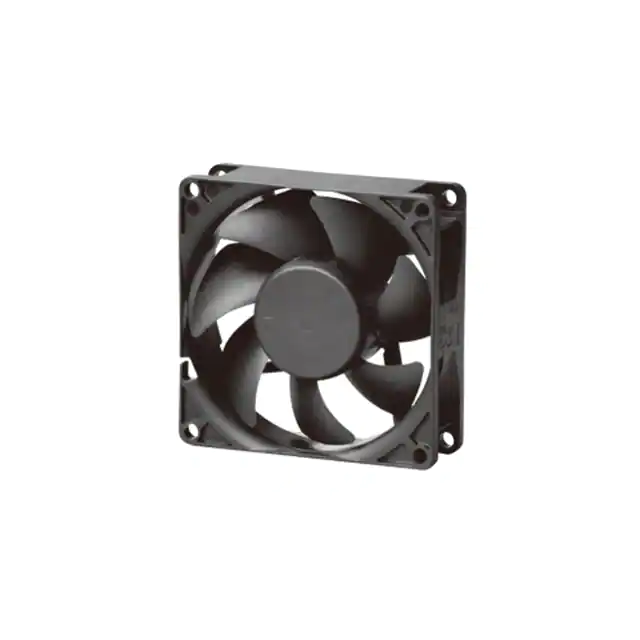

PF80251V3-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
1,352 |
|
Datasheet |
|
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 41.5dB(A) | 2.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
