DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F6025X12B3-RHFAN AXIAL 60X25MM 12VDC WIRE |
4,160 |
|
- |
 |
F6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | - |
|
|
PF60252B1-1000U-Q9924VDC FAN 60X25MM ALARM/PWM |
3,307 |
|
Datasheet |
|
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 35.9 CFM (1.01m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 41.7dB(A) | 2.57 W | 7500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251BX-1000U-Q9912VDC FAN 60X25MM ALARM/PWM |
2,056 |
|
Datasheet |
|
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 46.0dB(A) | 3.24 W | 8300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252BX-1000U-Q9924VDC FAN 60X25MM ALARM/PWM |
4,355 |
|
Datasheet |
|
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 46.0dB(A) | 3.22 W | 8300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B3-1000U-Q9924VDC FAN 60X25MM ALARM/PWM |
4,611 |
|
Datasheet |
|
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 37.5dB(A) | 1.56 W | 6200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B2-1000U-Q9912VDC FAN 60X25MM ALARM/PWM |
4,991 |
|
Datasheet |
|
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 40.7dB(A) | 1.98 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B1-1000U-Q9912VDC FAN 60X25MM ALARM/PWM |
3,122 |
|
Datasheet |
|
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 35.9 CFM (1.01m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 41.7dB(A) | 2.34 W | 7500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B2-1000U-Q9924VDC FAN 60X25MM ALARM/PWM |
4,635 |
|
Datasheet |
|
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 40.7dB(A) | 2.14 W | 7000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B3-1000U-Q9912VDC FAN 60X25MM ALARM/PWM |
2,811 |
|
Datasheet |
|
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 37.5dB(A) | 1.42 W | 6200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
F6025X24B2-RHR-EMFAN AXIAL 60X25MM 24VDC WIRE |
4,148 |
|
Datasheet |
|
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025X24B2-RHR-WS-EMFAN AXIAL 60X25MM 24VDC WIRE |
4,307 |
|
Datasheet |
|
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 4 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
109P0812M6D01FAN AXIAL 80X20MM 12VDC WIRE |
4,090 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 23.7 CFM (0.664m³/min) | 0.075 in H2O (18.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 1.56 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
.GN.JPG)
|

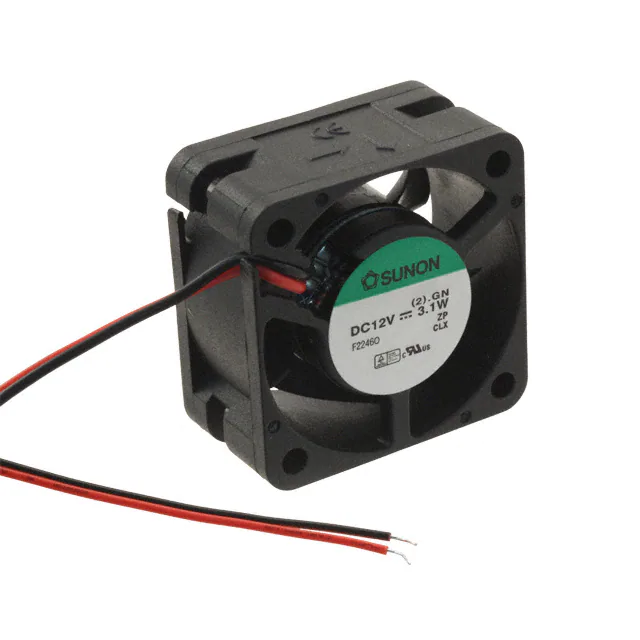

PMD1238PKB1-A.(2).GNFAN AXIAL 38X20MM 12VDC WIRE |
2,533 |
|
Datasheet |
|
PMD | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 12.0 CFM (0.336m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.1 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.061 lb (27.67 g) |
|
|
PMD1238PKBX-A.(2).GNFAN AXIAL 38X20MM 12VDC WIRE |
4,392 |
|
Datasheet |
|
PMD | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 13.5 CFM (0.378m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 4.3 W | 15000 RPM | 2 Wire Leads | - | - | - | - |
|
|
9GA0612H7D01FAN AXIAL 60X15MM 12VDC WIRE |
3,362 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.7 CFM (0.552m³/min) | 0.223 in H2O (55.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 1.2 W | 4900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
OD8025-12LBIP68FAN AXIAL 80X25MM 12VDC WIRE |
4,631 |
|
Datasheet |
|
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 22.0 CFM (0.616m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 21.0dB | 1.4 W | 2000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
|
DC0801512M2B-3T1FAN 80X15MM 12VDC TACH COMPUTER |
2,075 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.44 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801512J2B-3T1FAN 80X15MM 12VDC TACH COMPUTER |
3,477 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 720 mW | 2400 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801512L2B-3T1FAN 80X15MM 12VDC TACH COMPUTER |
3,162 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.2 W | 2700 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0501512M2B-3T1FAN 50X15MM 12VDC TACH COMPUTER |
3,380 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.08 W | 4800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
