DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0612P4F01FAN AXIAL 60X25MM 12VDC WIRE |
4,264 |
|
Datasheet |
 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.3 CFM (0.484m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 3300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
9S0612P4F011FAN AXIAL 60X25MM 12VDC WIRE |
2,888 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.3 CFM (0.484m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 3300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
9S0612P4H011FAN AXIAL 60X25MM 12VDC WIRE |
2,646 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 20.5 CFM (0.574m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 1.32 W | 3900 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
9S0612P4M01FAN AXIAL 60X25MM 12VDC WIRE |
2,568 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.1 CFM (0.395m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 16.0dB(A) | 840 mW | 2700 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
9S0612P4S01FAN AXIAL 60X25MM 12VDC WIRE |
2,899 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 2.4 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
|
9S0612P4S01160X25MM 12V,SILENT SERIES,RBLS D |
4,792 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | cURus, TUV | - |
|
|
CFM-6025BG68-2100-535-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,265 |
|
Datasheet |
|
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 43.4 CFM (1.22m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 12 W | 10000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FFB0912VH-R00FAN DC AXIAL 12V 92X25 WITH ROTA |
4,950 |
|
Datasheet |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FFB0912VH-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
3,957 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 82.0 CFM (2.30m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.2dB(A) | 7.2 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|
FFB0812EHE-R00FAN AXIAL 80X38MM 12VDC WIRE |
2,934 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.5dB(A) | 10.8 W | 5700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
AFB0924HH-AFAN AXIAL 92X25.4MM 24VDC WIRE |
3,799 |
|
Datasheet |
|
AFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 72.8 CFM (2.04m³/min) | 0.263 in H2O (65.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.32 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|

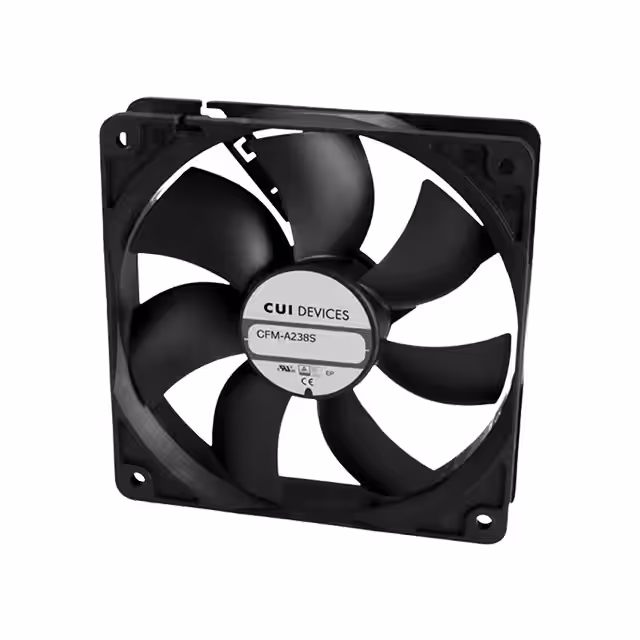

CFM-A238S-232-480-22FAN AXIAL 120X37.5MM 24VDC WIRE |
2,192 |
|
Datasheet |
|
CFM-120S | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 12.72 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238S-132-480-22FAN AXIAL 120X37.5MM 12VDC WIRE |
3,560 |
|
Datasheet |
|
CFM-120S | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 10.32 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
07525GA-12N-AT-00BLOWER 75MM X 25MM 12VDC TACH 3 |
3,226 |
|
Datasheet |
|
07525GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.5 CFM (0.270m³/min) | 0.614 in H2O (153.0 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 43.0dB(A) | 3 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07530GA-24K-AL-00FAN BLOWER 75.7X30MM 24VDC WIRE |
3,451 |
|
Datasheet |
|
07530GA | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.4 CFM (0.207m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 29.5dB | 1.68 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07530GA-12L-AT-00FAN BLOWER 75.7X30MM 12VDC WIRE |
2,578 |
|
Datasheet |
|
07530GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 8.8 CFM (0.246m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 34.5dB | 2.16 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07530GA-24L-AT-00FAN BLOWER 75.7X30MM 24VDC WIRE |
3,534 |
|
Datasheet |
|
07530GA | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 8.8 CFM (0.246m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 34.5dB | 2.16 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07530GA-24J-AT-00FAN BLOWER 75.7X30MM 24VDC WIRE |
4,938 |
|
Datasheet |
|
07530GA | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 6.7 CFM (0.188m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 28.0dB | 1.44 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07530GA-24M-AT-00FAN BLOWER 75.7X30MM 24VDC WIRE |
3,090 |
|
Datasheet |
|
07530GA | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.5 CFM (0.294m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 38.5dB | 3.6 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
07530GA-12K-AL-00FAN BLOWER 75.7X30MM 12VDC WIRE |
4,633 |
|
Datasheet |
|
07530GA | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.4 CFM (0.207m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Blower | Auto Restart, Locked Rotor Sensor | 29.5dB | 1.44 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
