DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF92251B1-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
4,825 |
|
Datasheet |
 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.1dB(A) | 4.32 W | 4500 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
FFB0924SHE-F00FAN AXIAL 92X38MM 24VDC WIRE |
4,874 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.5dB(A) | 9.6 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
.GN.jpg)
|

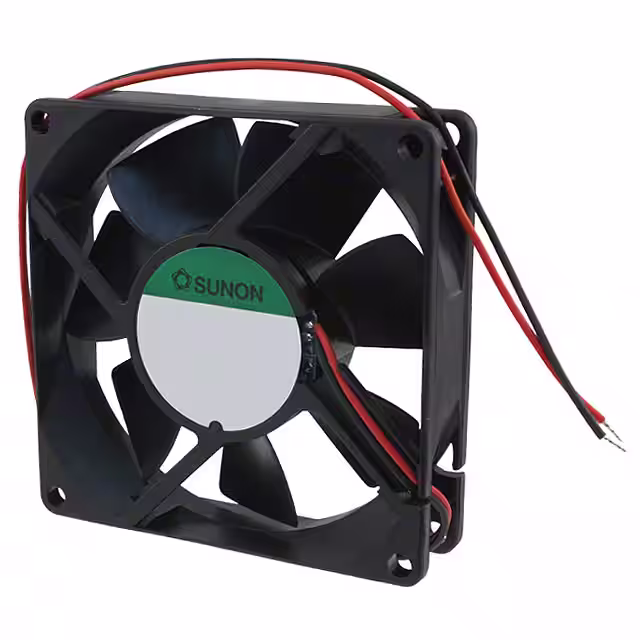

PMD1208PKB1-A.(2).GNFAN AXIAL 80X20MM 12VDC WIRE |
4,894 |
|
Datasheet |
|
PMD | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | 4.7 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.187 lb (84.82 g) |
|
MH4028H12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
4,851 |
|
Datasheet |
|
MH4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | 4 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
|
9A0948S402FAN AXIAL 92X25MM 48VDC WIRE |
4,574 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.84 W | 3550 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9A0948S4021FAN AXIAL 92X25MM 48VDC WIRE |
3,318 |
|
Datasheet |
|
San Cooler 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.84 W | 3550 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109R0605F4021FAN AXIAL 60X25MM BALL 5VDC WIRE |
3,867 |
|
Datasheet |
|
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0612D4021FAN AXIAL 60X25MM 12VDC WIRE |
4,382 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.52 W | 5150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0612M4021FAN AXIAL 60X25MM 12VDC WIRE |
2,311 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0805F4D01FAN AXIAL 80X25MM BALL 5VDC WIRE |
2,406 |
|
Datasheet |
|
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.25 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812F401FAN AXIAL 80X25MM 12VDC WIRE |
3,098 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 1.32 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812L4D01FAN AXIAL 80X25MM 12VDC WIRE |
3,272 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 720 mW | 1850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812L4D011FAN AXIAL 80X25MM 12VDC WIRE |
2,065 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 720 mW | 1850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812M4011FAN AXIAL 80X25MM 12VDC WIRE |
4,508 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 1.08 W | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812M4D01FAN AXIAL 80X25MM 12VDC WIRE |
2,347 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 1.08 W | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812F4D01FAN AXIAL 80X25MM 12VDC WIRE |
2,211 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.32 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812F4D011FAN AXIAL 80X25MM 12VDC WIRE |
2,010 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.32 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812M4D011FAN AXIAL 80X25MM 12VDC WIRE |
4,419 |
|
Datasheet |
|
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 1.08 W | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824F4D011FAN AXIAL 80X25MM 24VDC WIRE |
2,066 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.44 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0824L4D011FAN AXIAL 80X25MM 24VDC WIRE |
4,069 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 960 mW | 1850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
