DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD6025-12HBXEFAN AXIAL 60X25MM 12VDC WIRE |
128 |
|
Datasheet |
 |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 63.1dB(A) | 7.2 W | 7515 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD6025-24HBXEFAN AXIAL 60X25MM 24VDC WIRE |
120 |
|
Datasheet |
|
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart | 63.1dB(A) | 7.2 W | 7515 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

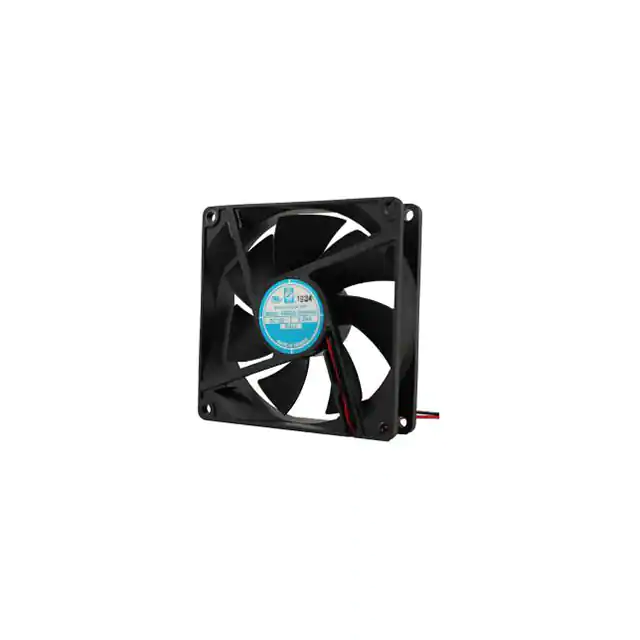

OD9225-12HBIP69KFAN AXIAL 92X25MM 12VDC WIRE |
785 |
|
Datasheet |
|
OD9225-IP69K | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB(A) | 3 W | 2900 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
11925SA-12L-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
328 |
|
Datasheet |
|
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 67.1 CFM (1.88m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB | 1.56 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
BUB0812HN-00BLOWER 80X28 12V TACH |
316 |
|
Datasheet |
|
BUB | Box | Active | 12VDC | Square/Rounded - 79.6mm L x 79.6mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 1.350 in H2O (336.3 Pa) | Sleeve | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.5dB(A) | 6 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

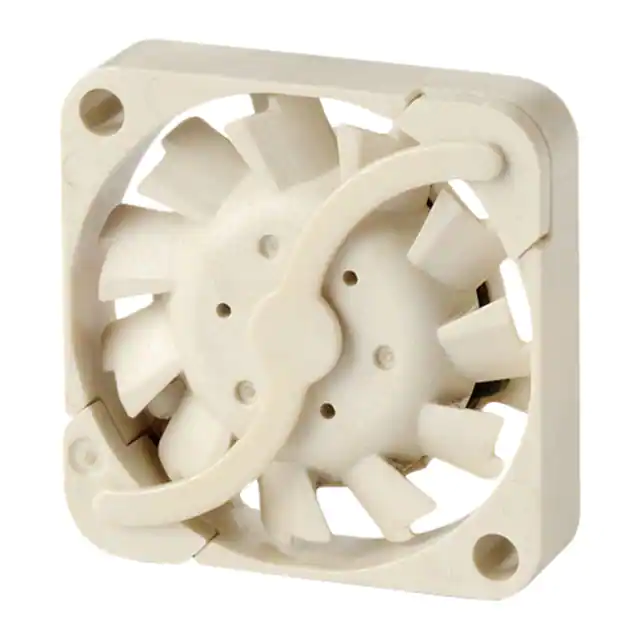

UF3F3-700TCFAN AXIAL 15X3MM VAPO 3VDC WIRE |
1,082 |
|
Datasheet |
|
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 100 mW | 14500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
9BD24HC6-1FAN BLOWER 76X20MM 24VDC WIRE |
127 |
|
Datasheet |
|
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 9.5 CFM (0.266m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 2.88 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
DB0630405H1A-BT0FAN BLOWER 63X4MM 5VDC RECT CONN |
460 |
|
Datasheet |
|
Slim-Line | Bulk | Active | 5VDC | Square/Rounded - 63mm L x 63mm H | 4.00mm | 2.2 CFM (0.061m³/min) | 0.505 in H2O (125.8 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 35.4dB(A) | 1.75 W | 5700 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.058 lb (26.31 g) |
|
UB3F3-500TCFAN BLOWER 15X3MM VAPO 3VDC WIRE |
241 |
|
Datasheet |
|
MagLev® UB, Mighty Mini | Bulk | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.170 CFM (0.005m³/min) | 0.136 in H2O (33.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
|
11925SA-24N-EAD-0FAN AXIAL 119X25MM 24VDC WIRE |
755 |
|
Datasheet |
|
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB | 2.64 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
AFB0812VHD-AF00FAN AXIAL 80X20MM 12VDC WIRE |
157 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 63.5 CFM (1.78m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.5dB(A) | 5.04 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
|
PF92252V1-1000U-A99FAN AXIAL 92X25MM 24VDC WIRE |
943 |
|
Datasheet |
|
MagLev® PF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.5dB(A) | 5.04 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
AFB0612EH-AFAN AXIAL 60X25.4MM 12VDC WIRE |
129 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 4.56 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0612HH-AFAN AXIAL 60X25.4MM 12VDC WIRE |
103 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.04 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
PF38281BX-1000U-S9HFAN AXIAL 38X28MM 12VDC WIRE |
238 |
|
Datasheet |
|
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 6.84 W | 20000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
9GA0312G3001FAN AXIAL 38X28MM 12VDC WIRE |
154 |
|
Datasheet |
|
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 1.850 in H2O (460.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 4 W | 19000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|

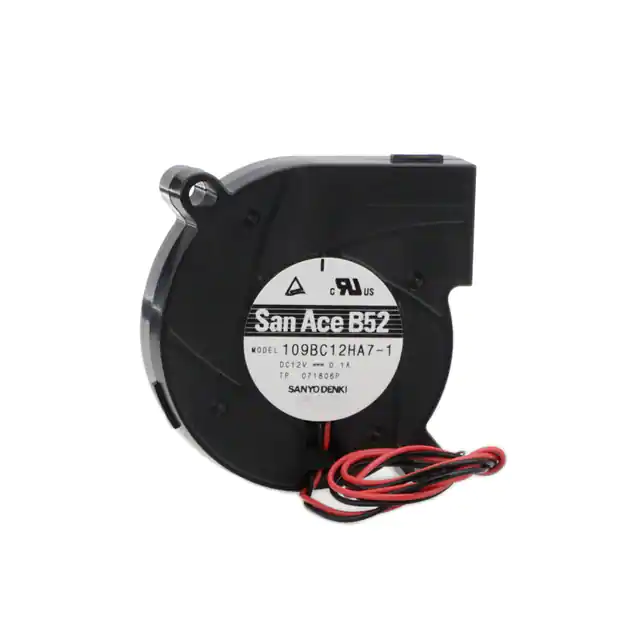

109BC12HA7-1FAN BLOWER 51X15MM 12VDC WIRE |
138 |
|
Datasheet |
|
San Ace B52 | Box | Active | 12VDC | Square/Rounded - 51mm L x 52.6mm H | 15.00mm | 4.0 CFM (0.112m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Blower | Locked Rotor Protection | 40.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.073 lb (33.11 g) |
|
AFB0412SHB-T500FAN AXIAL 40X15MM 12VDC WIRE |
1,119 |
|
Datasheet |
|
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.5dB(A) | 3 W | 11000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
9GA0612M6001FAN AXIAL 60X20MM 12VDC WIRE |
202 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 12.0 CFM (0.336m³/min) | 0.080 in H2O (20.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 18.0dB(A) | 600 mW | 2700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|
|
9GA0524H7002FAN AXIAL 52X15MM 24VDC WIRE |
104 |
|
Datasheet |
|
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 9.7 CFM (0.272m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 720 mW | 4300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.089 lb (40.37 g) |
