DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CFM-6025BG68-170-434-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,125 |
|
Datasheet |
 |
CFM-60BG68 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.4dB(A) | 5.4 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-270-434-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
4,834 |
|
Datasheet |
|
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.4dB(A) | 6 W | 7000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0824SH-R00FAN AXIAL 80X25.4MM 24VDC WIRE |
1 |
|
Datasheet |
|
AFB | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
CFM-8025BG68-240-383DC AXIAL FAN, 80 MM SQUARE, 25 M |
3,797 |
|
Datasheet |
|
CFM-80BG68 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 42.3 CFM (1.18m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 38.3dB(A) | 2.88 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-140-383DC AXIAL FAN, 80 MM SQUARE, 25 M |
2,484 |
|
Datasheet |
|
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 42.3 CFM (1.18m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart | 38.3dB(A) | 2.04 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FFB0912EHE-R00FAN AXIAL 92X38MM 12VDC WIRE |
2,028 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 55.0dB(A) | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
FFB0912VHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
3,687 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 85.5 CFM (2.39m³/min) | 0.406 in H2O (101.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.5dB(A) | 6 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
FFB0912HHE-R00FAN AXIAL 92X38MM 12VDC WIRE |
4,353 |
|
Datasheet |
|
FFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 71.7 CFM (2.01m³/min) | 0.298 in H2O (74.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB(A) | 4.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

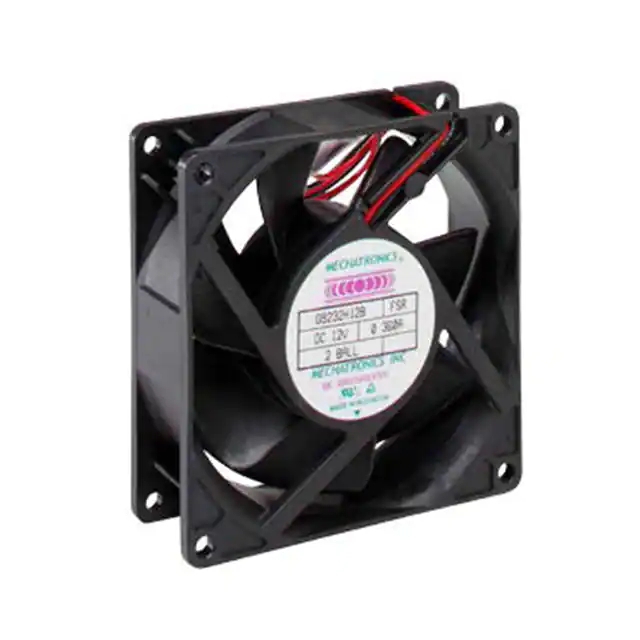

G9232X12B-FSR-EMFAN AXIAL 92X32MM 12VDC WIRE |
2,703 |
|
Datasheet |
|
G9232 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
G9232X24B-FSR-EMFAN AXIAL 92X32MM 24VDC WIRE |
4,455 |
|
Datasheet |
|
G9232 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.335 lb (151.95 g) |
|
|
DC1202512U2B-BT4FAN 120X25MM 12VDC PWM/TACH MOLE |
3,167 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 7.44 W | 3700 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202548J2B-2T2FAN 120X25MM 48VDC MOLEX 22-01-1 |
3,469 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 9.6 W | 2100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202548V2B-2T2FAN 120X25MM 48VDC MOLEX 22-01-1 |
2,844 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 31.2 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202548U2B-2T2FAN 120X25MM 48VDC MOLEX 22-01-1 |
4,812 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 114.7 CFM (3.21m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 29.76 W | 3700 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202512V2B-BT4FAN 120X25MM 12VDC PWM/TACH MOLE |
4,531 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 121.0 CFM (3.39m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 7.8 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512L2B-BT4FAN 120X25MM 12VDC PWM/TACH MOLE |
3,219 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 3.6 W | 2500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202512M2B-BT4FAN 120X25MM 12VDC PWM/TACH MOLE |
3,503 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 5.76 W | 2800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202548H2B-2T2FAN 120X25MM 48VDC MOLEX 22-01-1 |
2,855 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 103.9 CFM (2.91m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 24 W | 3400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1202512J2B-BT4FAN 120X25MM 12VDC PWM/TACH MOLE |
4,767 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 2100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1202548L2B-2T2FAN 120X25MM 48VDC MOLEX 22-01-1 |
4,272 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 14.4 W | 2500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
