DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1238X24B1-FSR-TTLFAN AXIAL 119X38MM 24VDC WIRE |
2,696 |
|
Datasheet |
 |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | - | 3100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238X24B2-FSRFAN AXIAL 119X38MM 24VDC WIRE |
2,807 |
|
Datasheet |
|
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 140.0 CFM (3.92m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.0dB(A) | - | 3100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
|
F1238H24B2-FSR-L16FAN AXIAL 119X38MM 24VDC WIRE |
3,946 |
|
Datasheet |
|
F1238-H | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 41.0dB(A) | - | 2500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
F1238L48B1-FHRFAN AXIAL 119X38MM 48VDC WIRE |
3,312 |
|
Datasheet |
|
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|
|
F1238L05B1-FSRFAN AXIAL 119X38MM 5VDC WIRE |
2,722 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MS8038H24B-FHRFAN AXIAL 80X38MM 24VDC WIRE |
4,671 |
|
Datasheet |
|
MS8038-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart | 77.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | - | 0.391 lb (177.35 g) |
|
|
MS8038H48B-FHRFAN AXIAL 80X38MM 48VDC WIRE |
4,190 |
|
Datasheet |
|
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart | 77.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | - | 0.391 lb (177.35 g) |
|
|
MS8038H12B-FHRFAN AXIAL 80X38MM 12VDC WIRE |
4,937 |
|
Datasheet |
|
MS8038-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB(A) | - | 9000 RPM | 2 Wire Leads | - | - | - | 0.391 lb (177.35 g) |
|
OD9238-12MBFAN AXIAL 92.5X38MM 12VDC WIRE |
4,116 |
|
Datasheet |
|
OD9238 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 90.0 CFM (2.52m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 47.0dB | 12 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.463 lb (210.01 g) |
|

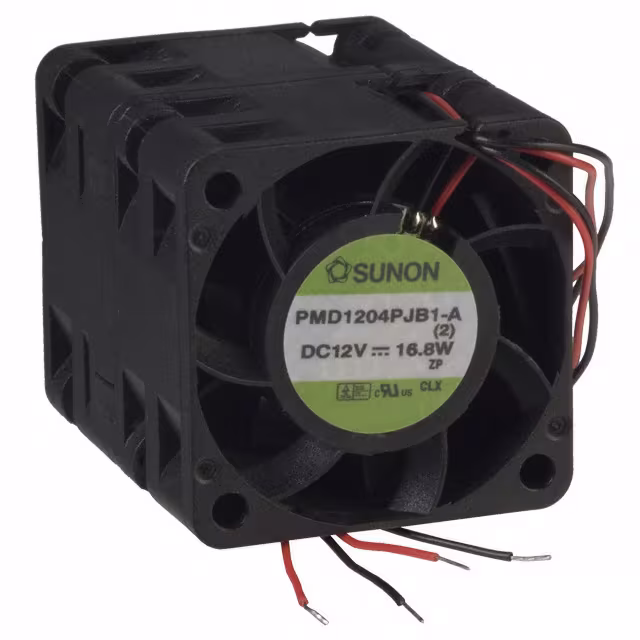

PMD1204PJB1-AFAN AXIAL DUAL 40X48MM 12VDC |
3,771 |
|
- |
|
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 27.0 CFM (0.756m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial (Dual) | - | 61.0dB(A) | 16.8 W | 14500 Front, 9500 Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.183 lb (83.01 g) |
|

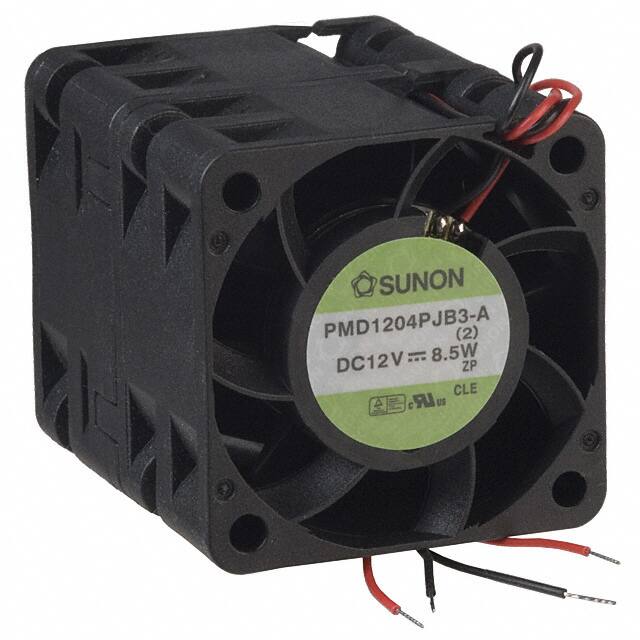

PMD1204PJB3-AFAN AXIAL DUAL 40X48MM 12VDC |
4,505 |
|
- |
|
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 21.2 CFM (0.594m³/min) | 1.110 in H2O (276.5 Pa) | Ball | Tubeaxial (Dual) | - | 57.0dB(A) | 8.5 W | 11500 Front, 8000 Rear | 2 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.182 lb (82.55 g) |
|
8412NGMLFAN AXIAL 80X25.4MM 12VDC WIRE |
3,213 |
|
Datasheet |
|
8400N | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 27.0 CFM (0.756m³/min) | - | Sintec | Tubeaxial | - | 19.0dB(A) | 900 mW | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.31 lb (140.61 g) |
|
|
DC0602548H2B-3T1FAN 60X25MM 48VDC TACH COMPUTER |
3,551 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 13.44 W | 5000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548J2B-3T1FAN 60X25MM 48VDC TACH COMPUTER |
3,114 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 9.6 W | 3100 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548L2B-3T1FAN 60X25MM 48VDC TACH COMPUTER |
2,918 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 5.76 W | 3600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602548M2B-3T1FAN 60X25MM 48VDC TACH COMPUTER |
3,248 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 7.2 W | 4250 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PF75302B3-1B00U-A99FAN BLOWER 75.6X30MM 24VDC WIRE |
2,487 |
|
Datasheet |
|
PF | Bulk | Active | 24VDC | Rectangular/Rounded - 75.6mm L x 75.7mm H | 30.00mm | 10.8 CFM (0.302m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Blower | Auto Restart | 32.9dB(A) | 1.13 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF75302B1-1B00U-A99Thermal Products |
3,687 |
|
Datasheet |
|
PF | Bulk | Active | 24VDC | Rectangular/Rounded - 75.7mm L x 75.6mm H | 30.00mm | 15.5 CFM (0.434m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Blower | Auto Restart | 42.0dB(A) | 2.76 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF75302B2-1B00U-A99Thermal Products |
2,977 |
|
Datasheet |
|
PF | Bulk | Active | 24VDC | Rectangular/Rounded - 75.7mm L x 75.6mm H | 30.00mm | 13.8 CFM (0.386m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Blower | Auto Restart | 38.6dB(A) | 1.92 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
9GA0624S6002FAN AXIAL 60X20MM 24VDC WIRE |
4,824 |
|
Datasheet |
|
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 24.7 CFM (0.692m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.68 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.156 lb (70.76 g) |
