DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06038RA-12Q-ET-00FAN AXIAL 60X38MM 12VDC WIRE |
3,655 |
|
- |
 |
06038RA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.3 CFM (1.49m³/min) | 1.230 in H2O (306.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB | 9.24 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038RA-12S-ET-00FAN AXIAL 60X38MM 12VDC WIRE |
2,527 |
|
- |
|
06038RA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 68.1 CFM (1.91m³/min) | 1.920 in H2O (478.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.0dB | 17.4 W | 12500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038RA-12R-ET-00FAN AXIAL 60X38MM 12VDC WIRE |
2,665 |
|
- |
|
06038RA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 59.0 CFM (1.65m³/min) | 1.520 in H2O (378.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.0dB | 12 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038RA-12R-EL-00FAN AXIAL 60X38MM 12VDC WIRE |
3,746 |
|
- |
|
06038RA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 59.0 CFM (1.65m³/min) | 1.520 in H2O (378.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.0dB | 12 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
06038RA-12Q-EL-00FAN AXIAL 60X38MM 12VDC WIRE |
2,737 |
|
- |
|
06038RA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.3 CFM (1.49m³/min) | 1.230 in H2O (306.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 56.0dB | 9.2 W | 10000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
3412GFAN AXIAL 92X25.4MM 12VDC WIRE |
3,444 |
|
Datasheet |
|
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Sleeve | Tubeaxial | - | 36.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3412GHFAN AXIAL 92X25.4MM 12VDC WIRE |
4,010 |
|
Datasheet |
|
3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 55.0 CFM (1.54m³/min) | - | Sleeve | Tubeaxial | - | 39.0dB(A) | 3.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3414HFAN AXIAL 92X25.4MM 24VDC WIRE |
4,717 |
|
Datasheet |
|
3400 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 55.0 CFM (1.54m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 3.8 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
DC0402824L2B-BT4FAN 40X28MM 24VDC PWM/TACH MOLEX |
3,556 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.8 CFM (0.386m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 3.36 W | 8000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
PE80254B1-000U-A99FAN AXIAL 80X25MM 48VDC WIRE |
4,627 |
|
Datasheet |
|
PE | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 47.5dB(A) | 5.48 W | 4800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE80254B2-000U-A99FAN AXIAL 80X25MM 48VDC WIRE |
4,471 |
|
Datasheet |
|
PE | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE80254B3-000U-A99FAN AXIAL 80X25MM 48VDC WIRE |
3,474 |
|
Datasheet |
|
PE | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 4.4 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
06038DA-24Q-EAD-0FAN AXIAL 60X38MM 24VDC WIRE |
4,955 |
|
- |
|
06038DA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9GA0824P6M001FAN AXIAL 80X20MM 24VDC WIRE |
3,354 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.6 CFM (0.829m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 26.5dB(A) | 720 mW | 2900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.177 lb (80.29 g) |
|
|
EEC0382B2-000U-F9924VDC FAN 120X38MM TACH |
2,904 |
|
Datasheet |
|
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.0dB(A) | 5.4 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0382B3-000U-F9924VDC FAN 120X38MM TACH |
2,457 |
|
Datasheet |
|
EE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 37.0dB(A) | 3.1 W | 2100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

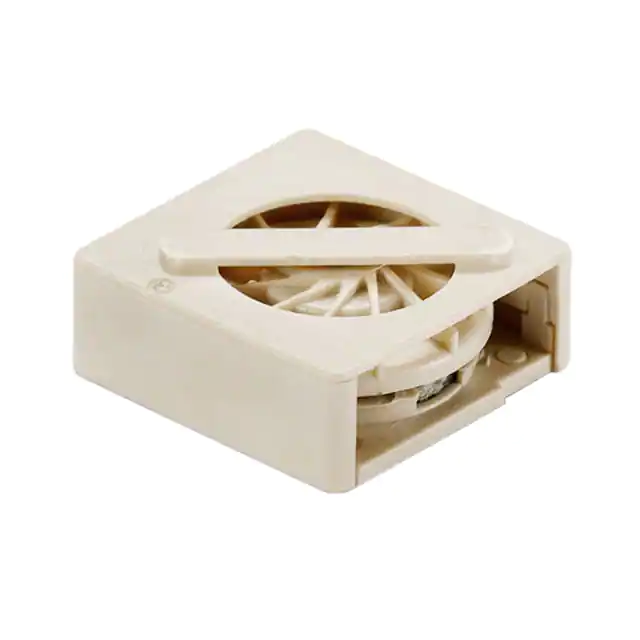

UB393-500BFAN BLOWER 9X3MM VAPO 3VDC WIRE |
4,572 |
|
Datasheet |
|
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 9mm L x 9mm H | 3.00mm | 0.041 CFM (0.001m³/min) | 0.065 in H2O (16.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 280 mW | 17400 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UF3C3-500BFAN AXIAL 12X3MM VAPO 3VDC WIRE |
4,493 |
|
Datasheet |
|
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.3dB(A) | 300 mW | 16500 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

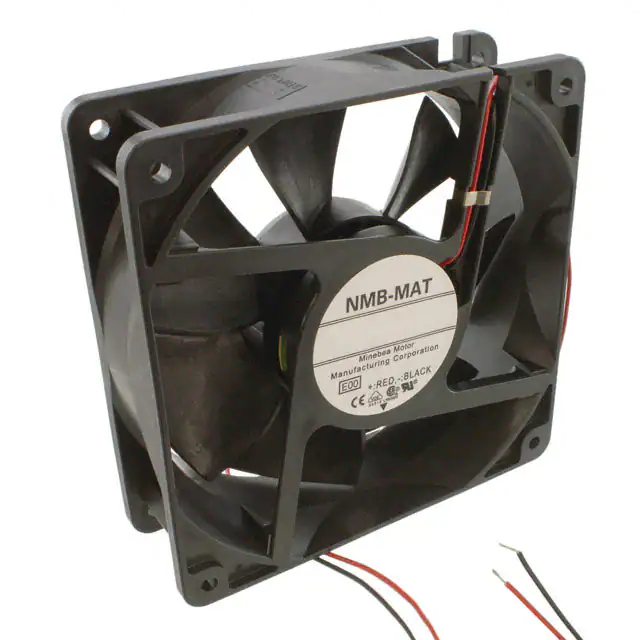

4715KL-07W-B30-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
3,747 |
|
Datasheet |
|
11938KA | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 42.5dB | 7.68 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
11938KA-48J-EA-00FAN AXIAL 119X38.4MM 48VDC WIRE |
3,258 |
|
Datasheet |
|
11938KA | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB | 3.84 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
