DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB1224EHE-R00FAN AXIAL 120X38MM 24VDC WIRE |
408 |
|
Datasheet |
 |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.0dB(A) | 24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
12032GA-24N-AA-00FAN BLOWER 120X32MM 24VDC WIRE |
801 |
|
Datasheet |
|
12032GA | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.1 CFM (0.927m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Blower | Auto Restart | 54.0dB | 11.52 W | 2650 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
OD9238-24HBIP69KFAN AXIAL 92X38MM 24VDC WIRE |
832 |
|
Datasheet |
|
OD9238-IP69K | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 9.6 W | 4500 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

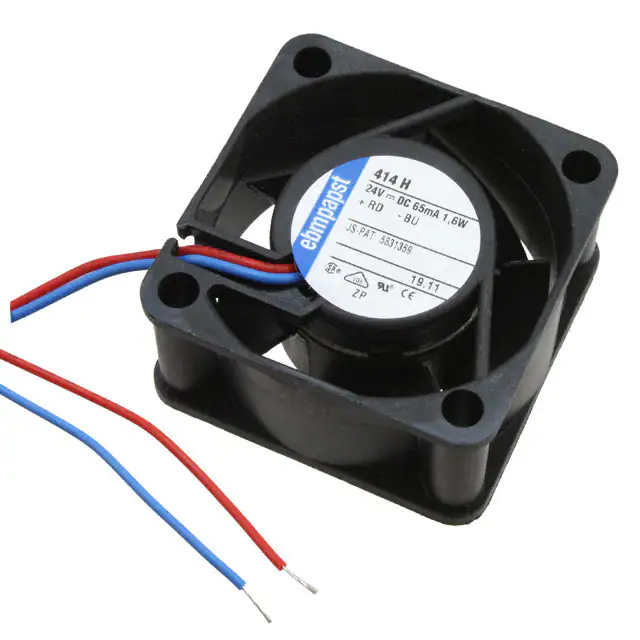

414HFAN AXIAL 40X20MM 24VDC WIRE |
1,191 |
|
Datasheet |
|
400 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.9 CFM (0.221m³/min) | - | Sintec | Tubeaxial | - | 29.0dB(A) | 1.6 W | 8100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|
G1238L12B1-FSR-TTL-EMFAN AXIAL 119X38MM 12VDC WIRE |
287 |
|
Datasheet |
|
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 107.0 CFM (3.00m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.0dB(A) | - | 2400 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
OD9225-60HBFAN AXIAL 92.5X25MM 60VDC WIRE |
118 |
|
Datasheet |
|
OD9225 | Box | Active | 60VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 69.0 CFM (1.93m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 39.0dB | 12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
9GA0824P4J0011FAN AXIAL 80X25MM 24VDC WIRE |
114 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 73.0 CFM (2.04m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 6.72 W | 7400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

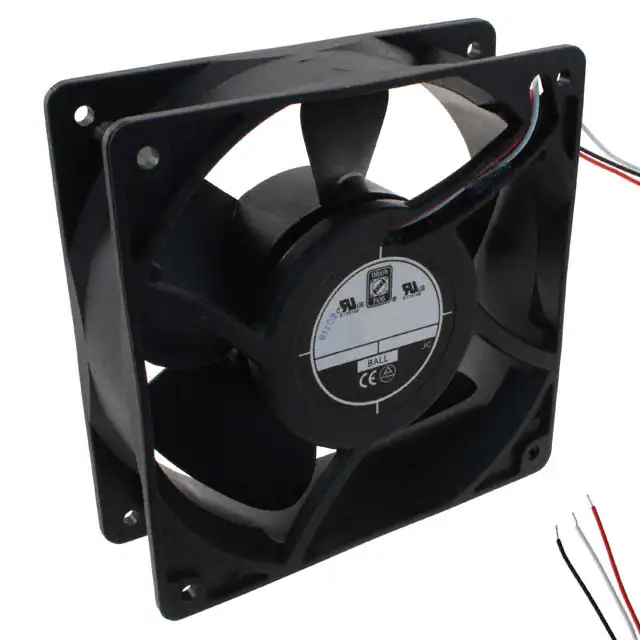

OD1238-24HB01AFAN AXIAL 120X38MM 24VDC WIRE |
225 |
|
Datasheet |
|
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.1dB(A) | 12 W | 2895 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|

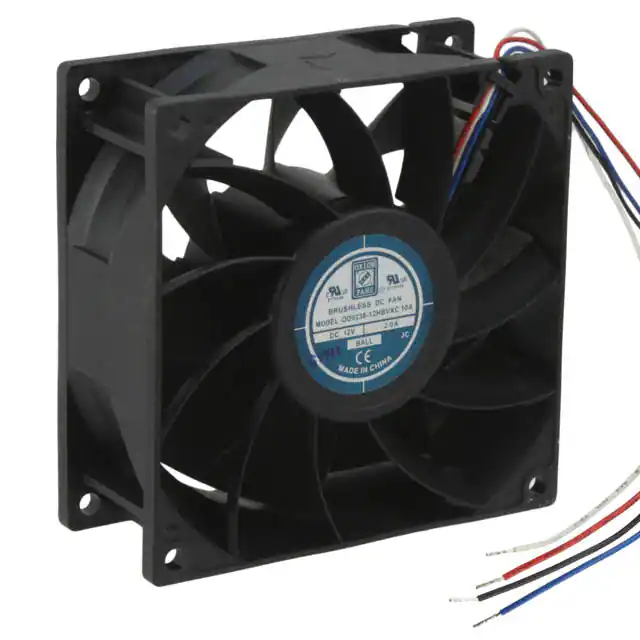

OD9238-12HBVXC10AFAN AXIAL 92.5X38MM 12VDC WIRE |
1,846 |
|
Datasheet |
|
OD9238 VA | Box | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 38.00mm | 135.0 CFM (3.78m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.0dB | 16 W | 5400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
.jpg)
|
9GA0612P1J03FAN AXIAL 60X38MM 12VDC WIRE |
267 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 62.0 CFM (1.74m³/min) | 3.290 in H2O (820.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 17500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
AFB0624EH-SP50FAN AXIAL 60X25.4MM 24VDC WIRE |
726 |
|
Datasheet |
|
AFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 5.76 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
DC1203812W2B-2T0FAN AXIAL 120X38MM 12VDC WIRE |
296 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 22.8 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
8412NGFAN AXIAL 80X25.4MM 12VDC WIRE |
458 |
|
Datasheet |
|
8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
8414NGMFAN AXIAL 80X25.4MM 24VDC WIRE |
314 |
|
Datasheet |
|
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
8414NGFAN AXIAL 80X25.4MM 24VDC WIRE |
164 |
|
Datasheet |
|
8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
OD6038-12HHBXC01AFAN AXIAL 60X38MM 12VDC WIRE |
124 |
|
Datasheet |
|
OD6038 XC | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 86.0 CFM (2.41m³/min) | 2.950 in H2O (734.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 66.0dB | 36 W | 16000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.276 lb (125.19 g) |
|

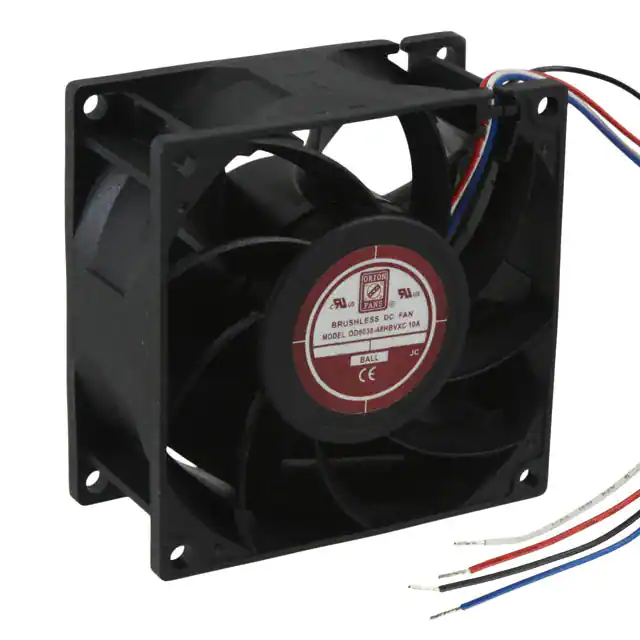

OD8038-48HBVXC10AFAN AXIAL 80X38MM 48VDC WIRE |
3,224 |
|
Datasheet |
|
OD8038 VA | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 57.0dB | 14 W | 6300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | - |
|
DS1203812H2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
354 |
|
Datasheet |
|
DS | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 197.5 CFM (5.53m³/min) | 1.126 in H2O (280.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 24 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
DC0603812M2B-BT0FAN AXIAL 60X38MM 12VDC WIRE |
488 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.1 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 16.56 W | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.32 lb (145.15 g) |
|
RL48-19/14MLFAN BLOWER 75.2X27MM 24VDC WIRE |
144 |
|
Datasheet |
|
RL48 | Box | Active | 24VDC | Rectangular/Rounded - 75.2mm L x 75.5mm H | 27.00mm | 12.9 CFM (0.361m³/min) | - | Ball | Blower | - | 51.0dB(A) | 2.9 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.165 lb (74.84 g) |
