DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3115RL-04W-B99-E00FAN AXIAL 80X38MM 12VDC WIRE |
4,077 |
|
Datasheet |
 |
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.887 in H2O (470.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 62.5dB(A) | 32.4 W | 8600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B99-E50FAN AXIAL 80X38MM 12VDC WIRE |
4,919 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.887 in H2O (470.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.5dB(A) | 32.4 W | 8600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B59-E00FAN AXIAL 80X38MM 12VDC WIRE |
4,367 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 61.8 CFM (1.73m³/min) | 0.462 in H2O (115.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 4.9 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B89-E00FAN AXIAL 80X38MM 12VDC WIRE |
2,079 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 1.425 in H2O (354.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.5dB(A) | 21 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B59-E50FAN AXIAL 80X38MM 12VDC WIRE |
4,288 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 61.8 CFM (1.73m³/min) | 0.462 in H2O (115.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 4.9 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B69-E50FAN AXIAL 80X38MM 12VDC WIRE |
4,208 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 75.9 CFM (2.13m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 8.8 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B79-E50FAN AXIAL 80X38MM 12VDC WIRE |
3,178 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 13.8 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
|
|
3115RL-04W-B89-E50FAN AXIAL 80X38MM 12VDC WIRE |
4,261 |
|
Datasheet |
|
3115RL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 1.425 in H2O (354.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 59.5dB(A) | 21 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.452 lb (205.02 g) |
.R.GN.jpg)
|
PMB1297PYB3-AY.(2).R.GNFAN BLOWER 97.2X33MM 12VDC WIRE |
3,772 |
|
Datasheet |
|
PMB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | Locked Rotor Sensor | 50.0dB(A) | 3.6 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.408 lb (185.07 g) |
|
|
VF40281BX-000U-S9H12VDC FAN 40X28MM TACH/PWM |
4,079 |
|
Datasheet |
|
VF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.5 CFM (0.882m³/min) | 3.950 in H2O (983.9 Pa) | Ball | Tubeaxial | PWM Control | 63.7dB(A) | 13.68 W | 27000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF38281B1-000U-S9H12VDC FAN 38X28MM TACH/PWM |
4,079 |
|
Datasheet |
|
VF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.9 CFM (0.529m³/min) | 2.500 in H2O (622.7 Pa) | Ball | Tubeaxial | PWM Control | 58.1dB(A) | 5.7 W | 21600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF40281B1-000U-S9H12VDC FAN 40X28MM TACH/PWM |
3,157 |
|
Datasheet |
|
VF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | PWM Control | 58.6dB(A) | 7.56 W | 21600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF38281BX-000U-S9H12VDC FAN 38X28MM TACH/PWM |
4,547 |
|
Datasheet |
|
VF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 24.2 CFM (0.678m³/min) | 3.560 in H2O (886.7 Pa) | Ball | Tubeaxial | PWM Control | 61.6dB(A) | 10.44 W | 27000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
PF80321B1-000U-AB9FAN AXIAL 80X32MM 12VDC WIRE |
2,265 |
|
Datasheet |
|
PF | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 45.2dB(A) | 3.7 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80321B2-000U-AB9FAN AXIAL 80X32MM 12VDC WIRE |
4,682 |
|
Datasheet |
|
PF | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 55.9 CFM (1.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 43.1dB(A) | 2.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80321B3-000U-AB9FAN AXIAL 80X32MM 12VDC WIRE |
2,618 |
|
Datasheet |
|
PF | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 50.3 CFM (1.41m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 41.1dB(A) | 2.4 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
8412FAN AXIAL 80X25MM 12VDC WIRE |
3,041 |
|
Datasheet |
|
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

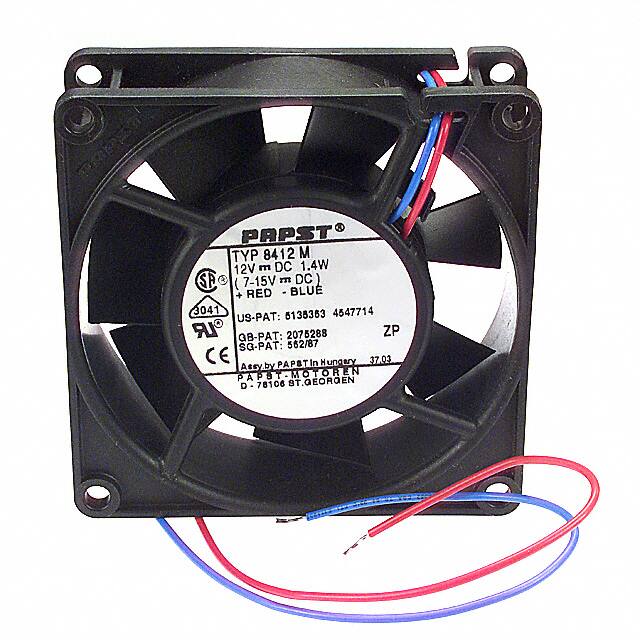

8412MFAN AXIAL 80X25MM 12VDC WIRE |
2,352 |
|
Datasheet |
|
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

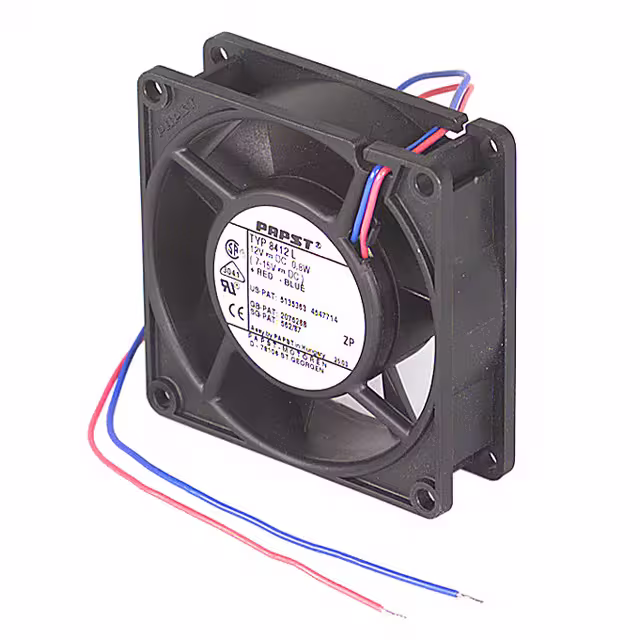

8412LFAN AXIAL 80X25MM 12VDC WIRE |
3,637 |
|
Datasheet |
|
8400 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | - | Ball | Tubeaxial | - | 21.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
9GA0612H102FAN AXIAL 60X38MM 12VDC WIRE |
3,130 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 40.0 CFM (1.12m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 6.6 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
