DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC1203848U2B-3T0FAN 120X38MM 48VDC TACH |
3,983 |
|
Datasheet |
 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 36 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824V2B-BT0FAN 120X38MM 24VDC PWM/TACH |
3,674 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 19.2 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603812J2B-2T2FAN 60X38MM 12VDC MOLEX 22-01-10 |
4,418 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.16 W | 9000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0603812L2B-2T2FAN 60X38MM 12VDC MOLEX 22-01-10 |
3,072 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 12 W | 10000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0603812I2B-2T2FAN 60X38MM 12VDC MOLEX 22-01-10 |
3,105 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 6.24 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC1203824M2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
4,307 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 6.72 W | 2300 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
9WP0412F6002FAN AXIAL 40X20MM 12VDC WIRE |
4,223 |
|
Datasheet |
|
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 720 mW | 6500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9WP0412H6002FAN AXIAL 40X20MM 12VDC WIRE |
3,194 |
|
Datasheet |
|
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.2 W | 8000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
MD1238X24B-FSFAN AXIAL 120X38MM 24VDC WIRE |
4,299 |
|
Datasheet |
|
MD1238 | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 205.0 CFM (5.74m³/min) | 0.943 in H2O (234.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 62.0dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
CFM-8038BF-1130-631FAN AXIAL 80X38MM 12VDC WIRE |
3,913 |
|
Datasheet |
|
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 98.6 CFM (2.76m³/min) | 2.700 in H2O (672.6 Pa) | Ball | Tubeaxial | Auto Restart | 63.2dB(A) | 30.24 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

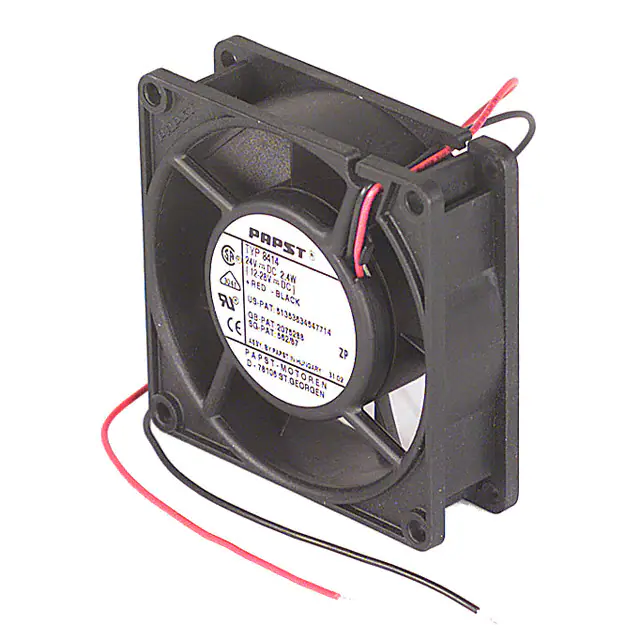

8414FAN AXIAL 80X25MM 24VDC WIRE |
4,670 |
|
Datasheet |
|
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

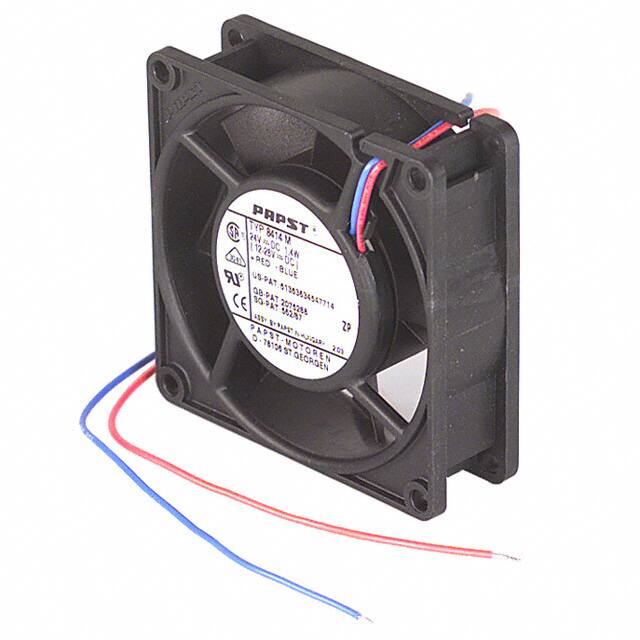

8414MFAN AXIAL 80X25MM 24VDC WIRE |
3,612 |
|
Datasheet |
|
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
8414LFAN AXIAL 80X25MM 24VDC WIRE |
2,048 |
|
Datasheet |
|
8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | - | Ball | Tubeaxial | - | 21.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
DC1203824U2B-2T2FAN 120X38MM 24VDC MOLEX 22-01-1 |
3,404 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 18 W | 2900 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824V2B-2T2FAN 120X38MM 24VDC MOLEX 22-01-1 |
2,874 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 19.2 W | 3200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0803812V2B-3T0FAN AXIAL 80X38MM 12VDC WIRE |
2,160 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 32.4 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
DC0803824V2B-2T0FAN 80X38MM 24VDC |
3,176 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 64.8 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
GF60252B2-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
4,400 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.2dB(A) | 5 W | 9000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF60252B1-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
4,474 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 53.2dB(A) | 9.72 W | 11500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF60252B3-1000U-FDP24VDC FAN 60X25MM TACH GR487 |
4,170 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 26.9 CFM (0.753m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 2.76 W | 6450 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
