DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0848H102FAN AXIAL 80X38MM 48VDC WIRE |
3,143 |
|
Datasheet |
 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 9.6 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0848H1021FAN AXIAL 80X38MM 48VDC WIRE |
3,059 |
|
Datasheet |
|
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 9.6 W | 5700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

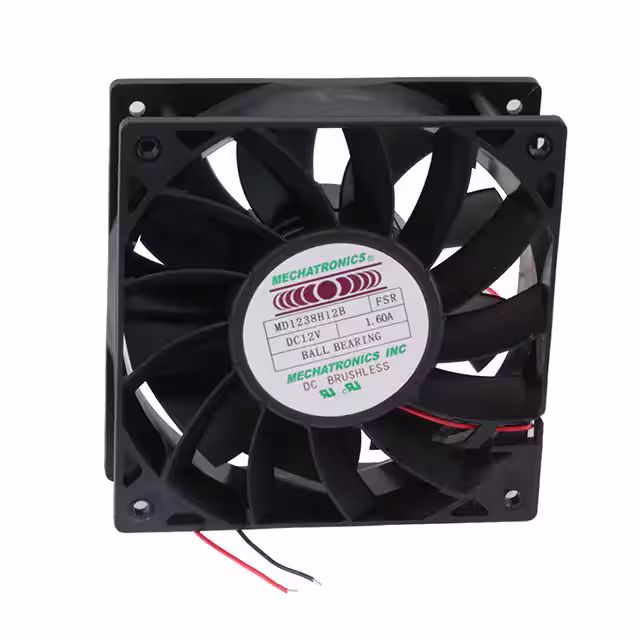

MD1238H12B-FSR-26AWGFAN AXIAL 120X38MM 12VDC WIRE |
3,865 |
|
Datasheet |
|
MD1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 174.0 CFM (4.87m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 57.8dB(A) | - | 3800 RPM | 2 Wire Leads | - | - | cUL, UL | 0.906 lb (410.95 g) |
|
|
GF92252B5-000U-AD9Thermal Products |
2,148 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 2.09 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B5-000U-AE9Thermal Products |
3,146 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 2.09 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B6-000U-AD9Thermal Products |
4,284 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B6-000U-AE9Thermal Products |
3,985 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 32.0dB(A) | 1.56 W | 2700 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B7-000U-AD9Thermal Products |
2,073 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB(A) | 1.13 W | 2400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF92252B7-000U-AE9Thermal Products |
2,408 |
|
Datasheet |
|
GF | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB(A) | 1.13 W | 2400 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
GFC0412DS-CMA5FAN AXIAL DUAL 40X56MM 12VDC |
3,821 |
|
Datasheet |
|
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 25.3 CFM (0.708m³/min) | 2.703 in H2O (673.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 10.2 W | 17200 Front, 15700 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.176 lb (80.00 g) |
|
|
DC1203848J2B-BT4FAN 120X38MM 48VDC PWM/TACH MOLE |
3,883 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 72 W | 4100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848W2B-BT4FAN 120X38MM 48VDC PWM/TACH MOLE |
2,951 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 74.4 W | 4200 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848V2B-BT4FAN 120X38MM 48VDC PWM/TACH MOLE |
4,105 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 38.4 W | 3200 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848U2B-BT4FAN 120X38MM 48VDC PWM/TACH MOLE |
3,673 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 36 W | 2900 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0923812L2B-BT0FAN AXIAL 92X38MM 12VDC WIRE |
4,051 |
|
Datasheet |
|
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 97.0 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.441 lb (200.00 g) |
|
|
DC0923848L2B-2T0FAN 92X38MM 48VDC |
4,234 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 24 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923824L2B-3T0FAN 92X38MM 24VDC TACH |
4,018 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 12 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848L2B-BT0FAN 120X38MM 48VDC PWM/TACH |
2,390 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 103.68 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923812H2B-BT4FAN 92X38MM 12VDC PWM/TACH MOLEX |
3,894 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 14.4 W | 6000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FFB1212VHFAN AXIAL 120X25.4MM 12VDC WIRE |
4,300 |
|
Datasheet |
|
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.9dB(A) | 9.48 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
