DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109BM12MD2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
2,927 |
|
Datasheet |
 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | Blower | Locked Rotor Sensor | 43.5dB(A) | 3.12 W | 2700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
|
109BM24HD2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
4,158 |
|
Datasheet |
|
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 33.00mm | 25.1 CFM (0.703m³/min) | 0.819 in H2O (204.0 Pa) | Ball | Blower | Locked Rotor Sensor | 48.5dB(A) | 6.24 W | 3300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
|
109BM24MD2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
4,009 |
|
Datasheet |
|
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 33.00mm | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | Blower | Locked Rotor Sensor | 43.5dB(A) | 3.6 W | 2700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.386 lb (175.09 g) |
|
|
DC0923848L2B-3T0FAN 92X38MM 48VDC TACH |
2,571 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 24 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923824L2B-BT0FAN 92X38MM 24VDC PWM/TACH |
4,826 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 12 W | 4300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603812M2B-BT4FAN 60X38MM 12VDC PWM/TACH MOLEX |
2,421 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 16.56 W | 12000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0603848M2B-2T2FAN 60X38MM 48VDC MOLEX 22-01-10 |
4,622 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 66.24 W | 12000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923812V2B-BT4FAN 92X38MM 12VDC PWM/TACH MOLEX |
4,850 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 35.4 W | 8000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0923848V2B-2T2FAN 92X38MM 48VDC MOLEX 22-01-10 |
2,387 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 72.0dB(A) | 141.6 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

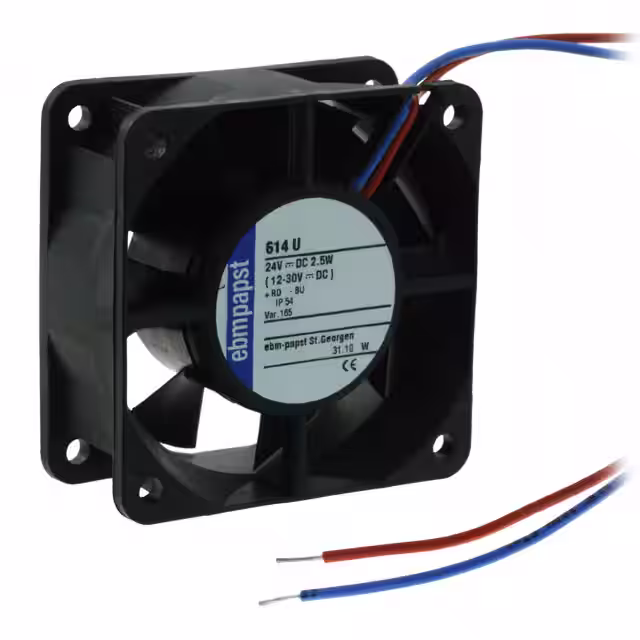

614RFAN TUBEAXIAL 60X25MM 24VDC |
4,382 |
|
Datasheet |
|
600 | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMB4897PYB1-AY.(2).GNFAN BLOWER 97.2X33MM 48VDC WIRE |
3,752 |
|
Datasheet |
|
PMB | Bulk | Obsolete | 48VDC | Rectangular - 97.2mm L x 94.4mm H | 33.00mm | 30.5 CFM (0.854m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Blower | Auto Restart | 55.8dB(A) | 8.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
PMB4897PYB2-AY.(2).GNFAN BLOWER 97X33MM 48VDC WIRE |
3,611 |
|
Datasheet |
|
PMB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 97mm L x 94mm H | 33.00mm | 26.6 CFM (0.745m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Blower | Auto Restart | 53.1dB(A) | 6.2 W | 3200 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMB4897PYB3-AY.(2).GNFAN BLOWER 97X33MM 48VDC WIRE |
4,798 |
|
Datasheet |
|
PMB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 97mm L x 94mm H | 33.00mm | 22.4 CFM (0.627m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Blower | Auto Restart | 50.0dB(A) | 4.3 W | 2700 RPM | 2 Wire Leads | - | - | - | - |
|
|
DC1203812W2B-2T2FAN 120X38MM 12VDC MOLEX 22-01-1 |
2,161 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 21 W | 4600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225BF-153-577-20FAN AXIAL 120X25.4MM 12VDC WIRE |
3,406 |
|
Datasheet |
|
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 169.5 CFM (4.75m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 57.8dB(A) | 22.44 W | 5300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
412-099FAN,AXIAL,12VDC,5.9CFM,.8W.066A, |
2,548 |
|
- |
|
412 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sleeve | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach) | 18.0dB(A) | 0.8 W | 6000 RPM | 5 Wire Leads | - | -4 ~ 185°F (-20 ~ 85°C) | - | - |
|
GFB0612HHGFAN AXIAL DUAL 60X50.8MM 12VDC |
3,520 |
|
Datasheet |
|
GFB | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 50.80mm | 32.1 CFM (0.899m³/min) | 0.378 in H2O (94.1 Pa) | Ball | Tubeaxial (Dual) | - | 50.5dB(A) | 5.16 W | 5000 Front, 4600 Rear | 2 Wire Leads per Fan | - | - | CE, CSA, UL, VDE | 0.276 lb (125.19 g) |
|
|
DC0923824L2B-2T2FAN 92X38MM 24VDC MOLEX 22-01-10 |
4,958 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 12 W | 4300 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824V2B-BT4FAN 80X38MM 24VDC PWM/TACH MOLEX |
3,231 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 64.8 W | 9000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824L2B-BT4FAN 120X38MM 24VDC PWM/TACH MOLE |
2,282 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 51.84 W | 4600 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
