DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV0824P4K011FAN AXIAL 80X25.4MM 24VDC WIRE |
4,043 |
|
Datasheet |
 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 10.56 W | 5600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.276 lb (125.19 g) |
|
PMD4806PMB1-A (2).GN.IP55FAN AXIAL 60X38MM 48VDC |
4,040 |
|
Datasheet |
|
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMD4808PMB1-A (2).GN.IP55FAN AXIAL 80X38MM 48VDC |
3,069 |
|
Datasheet |
|
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMD4808PMB2-A (2).GN.IP55FAN AXIAL 80X38MM 48VDC |
4,225 |
|
Datasheet |
|
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMD4808PMB3-A (2).GN.IP55FAN AXIAL 80X38MM 48VDC |
3,919 |
|
Datasheet |
|
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GF80321B1-000U-AC9FAN AXIAL 80X32MM 12VDC WIRE |
4,919 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 45.2dB(A) | 3.72 W | 4800 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.24 lb (108.86 g) |
|
|
GF80251B2-000U-AC9FAN AXIAL 80X25MM 12VDC WIRE |
4,841 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 3.06 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.232 lb (105.23 g) |
|
|
GF80251B3-000U-AC9FAN AXIAL 80X25MM 12VDC WIRE |
4,449 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 2.4 W | 4200 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.232 lb (105.23 g) |
|
|
GF80321B2-000U-AC9FAN AXIAL 80X32MM 12VDC WIRE |
2,724 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 55.9 CFM (1.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 43.1dB(A) | 2.76 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | - | - | 0.241 lb (109.32 g) |
|
|
GF80321B3-000U-AC9FAN AXIAL 80X32MM 12VDC WIRE |
4,267 |
|
Datasheet |
|
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 50.3 CFM (1.41m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | - | 41.1dB(A) | 2.28 W | 4100 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | - | - | 0.241 lb (109.32 g) |
|
|
MS6038H24B1+6-FSR-2EMFAN AXIAL 60X38MM 24VDC WIRE |
2,167 |
|
Datasheet |
|
MS6038-S | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | - | 11000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.231 lb (104.78 g) |
|
|
MS6038M12B1+6-FSR-2EMAXIAL FAN 60X38MM 24VDC WIRE |
2,033 |
|
- |
|
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC1203848H2B-BT0FAN 120X38MM 48VDC PWM/TACH |
4,663 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.0dB(A) | 19.2 W | 2600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848M2B-BT0FAN 120X38MM 48VDC PWM/TACH |
3,216 |
|
Datasheet |
|
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 13.44 W | 2300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

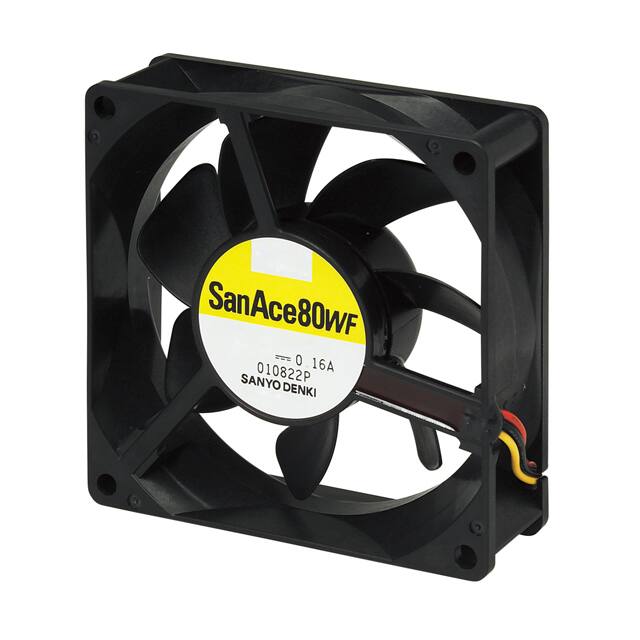

9WF0824S401FAN AXIAL 80X25MM 24VDC WIRE |
3,092 |
|
Datasheet |
|
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 38.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
OD9238-24LBIP68FAN AXIAL 92X38MM 24VDC WIRE |
3,813 |
|
Datasheet |
|
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 76.5 CFM (2.14m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB | 4.8 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|
AFB0912HHF-EPFAN AXIAL 92X32MM 12VDC WIRE |
4,786 |
|
Datasheet |
|
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 60.0 CFM (1.68m³/min) | 0.209 in H2O (52.1 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection | 38.0dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
DC1203824J2B-2T0FAN 120X38MM 24VDC |
4,494 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 36 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
8372FAN AXIAL 80X32MM 12VDC TERM |
3,114 |
|
Datasheet |
|
8300 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.2 W | - | 2 Terminals | - | - | - | 0.38 lb (172.37 g) |
|
|
DC1203812H2B-BT4FAN 120X38MM 12VDC PWM/TACH MOLE |
3,086 |
|
Datasheet |
|
- | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 9.6 W | 3200 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
