DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
GF80382B1-1000U-FDP24VDC FAN 80X38MM TACH GR487 |
3,488 |
|
Datasheet |
 |
GF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 1.130 in H2O (281.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.7dB(A) | 20.64 W | 8000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF80382BX-1000U-FEP24VDC FAN 80X38MM TACH IP68 |
4,052 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 133.0 CFM (3.72m³/min) | 1.800 in H2O (448.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 65.2dB(A) | 39.12 W | 10000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF80382B1-1000U-FEP24VDC FAN 80X38MM TACH IP68 |
4,799 |
|
Datasheet |
|
GF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 104.4 CFM (2.96m³/min) | 1.130 in H2O (281.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.7dB(A) | 20.64 W | 8000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
9WP0848S4D011FAN AXIAL 80X25MM 48VDC WIRE |
3,840 |
|
Datasheet |
|
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.88 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
PF80381BX-1000U-Q9H12VDC FAN 80X38MM ALARM/PWM |
2,800 |
|
Datasheet |
|
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 141.9 CFM (3.97m³/min) | 3.500 in H2O (871.8 Pa) | Ball | Tubeaxial | PWM Control | 69.1dB(A) | 48 W | 14000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF80381B1-1000U-Q9H12VDC FAN 80X38MM ALARM/PWM |
3,480 |
|
Datasheet |
|
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 113.9 CFM (3.19m³/min) | 2.680 in H2O (670.0 Pa) | Ball | Tubeaxial | PWM Control | 63.4dB(A) | 21.6 W | 11200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0923824V2B-3T1FAN 92X38MM 24VDC TACH COMPUTER |
4,000 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 72.0dB(A) | 70.8 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0603824M2B-3T1FAN 60X38MM 24VDC TACH COMPUTER |
4,563 |
|
Datasheet |
|
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 33.12 W | 12000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PMD2409PMB4-A.(2).GNThermal Products |
2,814 |
|
- |
|
PM | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 75.1 CFM (2.10m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 45.6dB(A) | 4.1 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

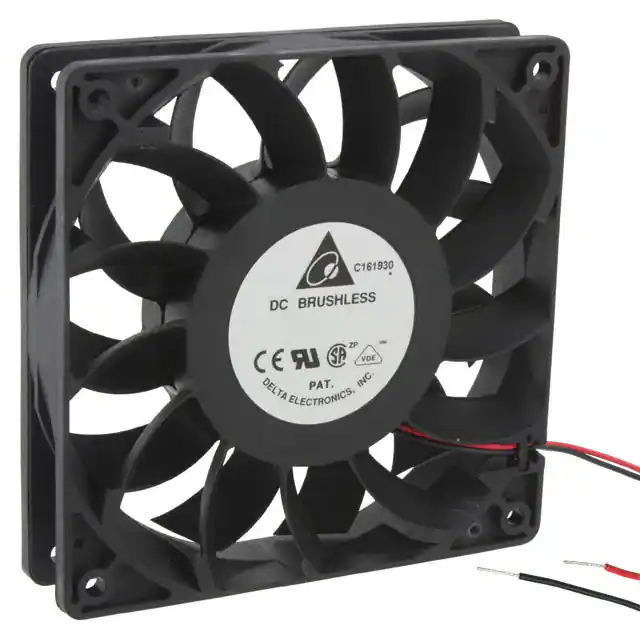

FFB1224EHFAN AXIAL 120X25.4MM 24VDC WIRE |
4,380 |
|
Datasheet |
|
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.4dB(A) | 15.12 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
FFB1224HHFAN AXIAL 120X25.4MM 24VDC WIRE |
2,458 |
|
Datasheet |
|
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.7dB(A) | 6.72 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
19031159AFAN AXIAL 60X25MM 24VDC FS24H3 |
3,150 |
|
Datasheet |
|
Flight II 60 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.0 CFM (0.336m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | - | 28.5dB(A) | 1.1 W | 3448 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|
19032859AFAN AXIAL 60X25MM 48VDC FS48K3 |
3,375 |
|
Datasheet |
|
Flight II 60 | - | Obsolete | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | - | - | 4 W | 5930 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.244 lb (110.68 g) |
|
PFB0812GHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
2,427 |
|
Datasheet |
|
PFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.42m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 10.2 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
PFB0812GHE-R00FAN AXIAL 80X38MM 12VDC WIRE |
3,009 |
|
Datasheet |
|
PFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 86.4 CFM (2.42m³/min) | 0.898 in H2O (223.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 55.5dB(A) | 10.2 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|

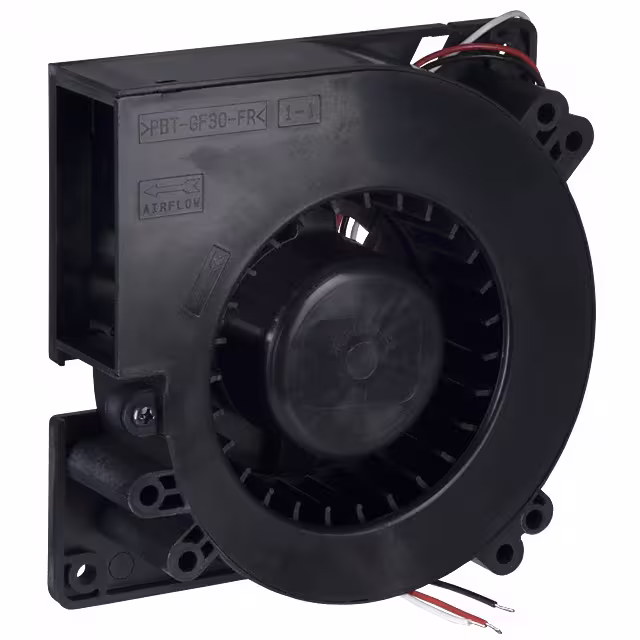

BG1203-B045-00S-00FAN BLOWER 120X32MM 12VDC WIRE |
2,764 |
|
Datasheet |
|
12032GA | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 33.2 CFM (0.930m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Blower | Speed Sensor (Tach) | 54.0dB | 11.2 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
1-NPO/603-1202FAN AXIAL 120X25.4MM 12VDC RECT |
2,791 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 103.7 CFM (2.90m³/min) | 0.371 in H2O (92.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.8 W | 3100 RPM | 3 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
1-NPO/603-1178FAN AXIAL 120X25.4MM 12VDC RECT |
3,662 |
|
Datasheet |
|
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.36 W | 3400 RPM | 3 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
PF60382B2-1000U-H9H24VDC FAN 60X38MM PWM |
4,940 |
|
Datasheet |
|
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 55.7 CFM (1.58m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | PWM Control | 56.0dB(A) | 6.96 W | 10300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60382B2-1000U-G9H24VDC FAN 60X38MM ALARM |
2,713 |
|
Datasheet |
|
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 55.7 CFM (1.58m³/min) | 1.280 in H2O (318.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 6.96 W | 10300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
