DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMD1212PTB2-A.(2).GNFAN AXIAL 120X25MM 12VDC WIRE |
2,541 |
|
Datasheet |
 |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 133.0 CFM (3.72m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 8.6 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
.GN.jpg)
|

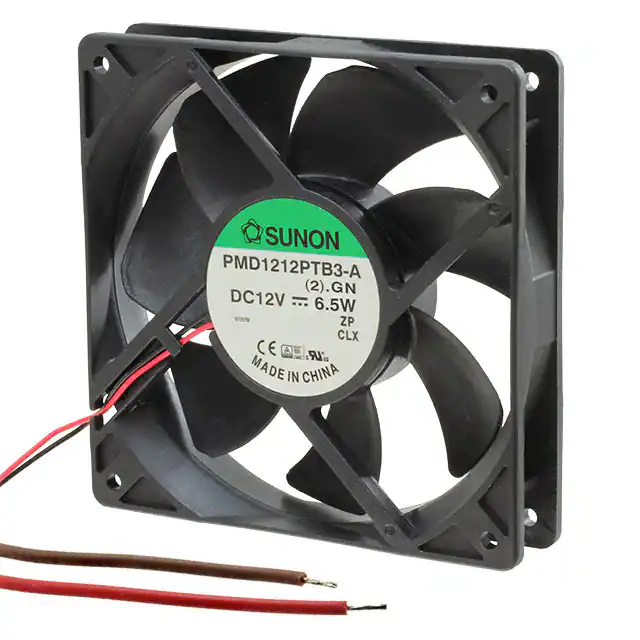

PMD1212PTB3-A.(2).GNFAN AXIAL 120X25MM 12VDC WIRE |
2,032 |
|
Datasheet |
|
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 6.5 W | 3600 RPM | 2 Wire Leads | - | - | - | 0.485 lb (220.00 g) |
|
|
9GA0824S2D00180X32MM 24V,LOW POWER DC LCKRTRS |
3,535 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA0824A2D001180X32MM 24V,LOW POWER,RBLS DC LC |
3,581 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
OD1238-48MBXEFAN AXIAL 120X38MM 48VDC WIRE |
2,301 |
|
Datasheet |
|
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.1 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | Tubeaxial | Auto Restart | 59.3dB(A) | 34 W | 4650 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
19028934AFAN AXIAL 79.8X41.8MM 24V SD24B1 |
4,757 |
|
Datasheet |
|
Sprite | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|
|
9GA0824H162FAN AXIAL 80X38MM 24VDC WIRE |
2,885 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 79.4 CFM (2.22m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 7.2 W | 8250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
|
9GA0824S162FAN AXIAL 80X38MM 24VDC WIRE |
4,154 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 11.28 W | 9550 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.353 lb (160.12 g) |
|
|
VF38561BX-1000U-A9TThermal Products |
4,117 |
|
Datasheet |
|
VF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 56.00mm | 31.2 CFM (0.874m³/min) | 4.600 in H2O (1145.8 Pa) | Ball | Tubeaxial | Auto Restart | 61.6dB(A) | 14.4 W | 29300 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CCC, CE, cURus, TUV | - |
|
|
ASFN40770FAN AXIAL 40X10MM BALL 5VDC WIRE |
3,122 |
|
- |
|
ASFN4 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.05 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN40771FAN AXIAL 40X10MM 12VDC WIRE |
4,259 |
|
- |
|
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.2 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN40791FAN AXIAL 40X10MM 12VDC WIRE |
3,930 |
|
- |
|
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 1.2 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN42791FAN AXIAL 40X10MM 12VDC WIRE |
4,871 |
|
- |
|
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.150m³/min) | 0.137 in H2O (34.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN44770FAN AXIAL 40X10MM BALL 5VDC WIRE |
4,569 |
|
- |
|
ASFN4 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.097 in H2O (24.0 Pa) | Ball | Tubeaxial | Auto Restart | 22.0dB(A) | 500 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN44771FAN AXIAL 40X10MM 12VDC WIRE |
3,231 |
|
- |
|
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.097 in H2O (24.0 Pa) | Ball | Tubeaxial | Auto Restart | 22.0dB(A) | 1.08 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN44791FAN AXIAL 40X10MM 12VDC WIRE |
3,445 |
|
- |
|
ASFN4 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.097 in H2O (24.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 22.0dB(A) | 1.08 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.034 lb (15.42 g) |
|
|
ASFN80371FAN AXIAL 80X25MM 12VDC WIRE |
2,533 |
|
Datasheet |
|
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.147 in H2O (36.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.5dB(A) | 3.96 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN80372FAN AXIAL 80X25MM 24VDC WIRE |
3,328 |
|
Datasheet |
|
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.147 in H2O (36.6 Pa) | Ball | Tubeaxial | - | 32.5dB(A) | 3.36 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.176 lb (79.83 g) |
|
|
ASFN80391FAN AXIAL 80X25MM 12VDC WIRE |
4,044 |
|
- |
|
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.147 in H2O (36.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.5dB(A) | 3.96 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
|
|
ASFN80392FAN AXIAL 80X25MM 24VDC WIRE |
2,237 |
|
- |
|
ASFN8 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.6 CFM (1.08m³/min) | 0.147 in H2O (36.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.5dB(A) | 4.32 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus | - |
