DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

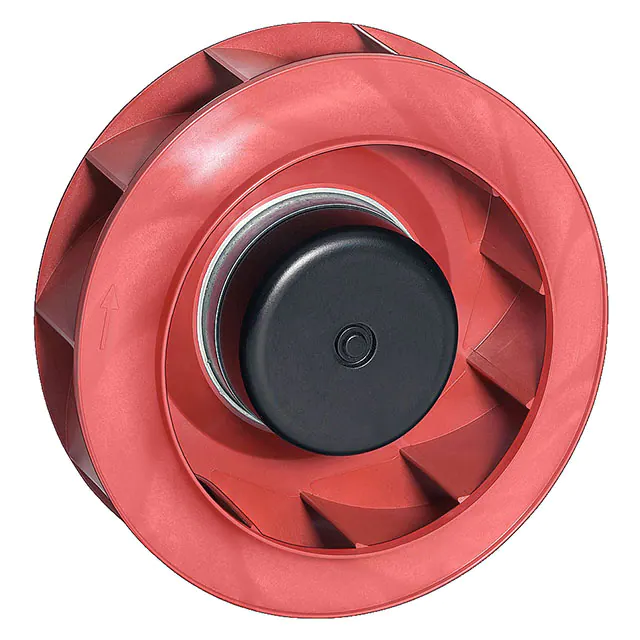

R1G220-AB35-52FAN IMP MTRZD 220X71MM 24VDC |
105 |
|
Datasheet |
 |
R1G220 | Bulk | Active | 24VDC | Round - 220mm Dia | 71.00mm | 620.9 CFM (17.39m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 106 W | 3150 RPM | 4 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | 3.1 lbs (1.4 kg) |
|

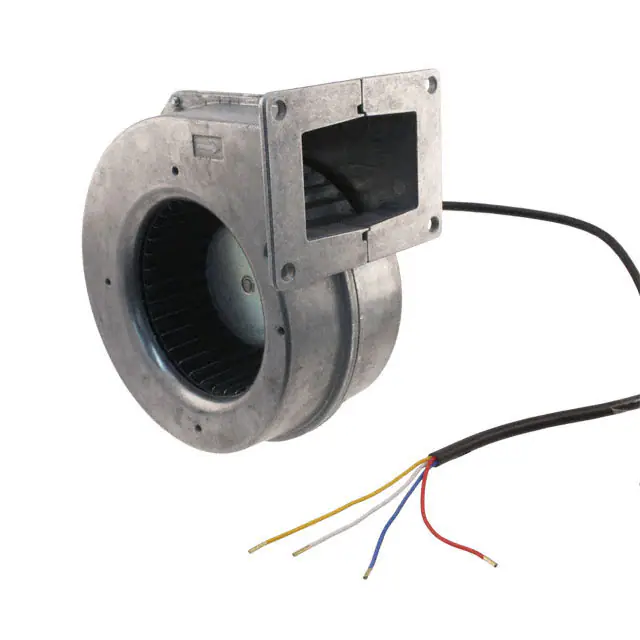

G1G146-BA07-52FAN BLOWER 226.8X130.0MM 24VDC |
133 |
|
Datasheet |
|
EC | Box | Active | 24VDC | Rectangular/Rounded - 226.8mm L x 262mm H (158mm Dia) | 130.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 100 W | 2200 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | 6.2 lbs (2.8 kg) |
|
CFM-4010C-065-251-20FAN AXIAL 40X10.5MM 5VDC WIRE |
898 |
|
Datasheet |
|
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.1dB(A) | 850 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
04010SS-12N-AL-00FAN AXIAL 40X10MM 12VDC WIRE |
418 |
|
Datasheet |
|
04010SS | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB | 710 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
03510SS-05L-AA-00FAN AXIAL 35X10MM 5VDC WIRE |
353 |
|
Datasheet |
|
03510SS | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
04010SS-05M-AA-00FAN AXIAL 40X10MM 5VDC WIRE |
1,017 |
|
Datasheet |
|
04010SS | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.6 CFM (0.157m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Auto Restart | 24.0dB | 650 mW | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-4010C-050-195FAN AXIAL 40X10.5MM 5VDC WIRE |
191 |
|
Datasheet |
|
CFM-40C | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 19.5dB(A) | 400 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
04010SS-05N-AL-00FAN AXIAL 40X10MM 5VDC WIRE |
987 |
|
Datasheet |
|
04010SS | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB | 850 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-08025DBMW11-AFAN AXIAL 80X25MM 24VDC WIRE |
222 |
|
Datasheet |
|
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
CFM-9225V-117-177FAN AXIAL 92X25MM 12VDC WIRE |
2,016 |
|
Datasheet |
|
CFM-92V | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 28.5 CFM (0.798m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 17.7dB(A) | 650 mW | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
CFM-8020CF-145-401-20FAN AXIAL 80X20MM 12VDC WIRE |
268 |
|
Datasheet |
|
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.2dB(A) | 3.6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
03510SS-12L-AA-00FAN AXIAL 35X10MM 12VDC WIRE |
362 |
|
Datasheet |
|
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
CFM-6025CF-250-351FAN AXIAL 60X25.4MM 24VDC WIRE |
2,487 |
|
Datasheet |
|
CFM-60CF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.2dB(A) | 3.36 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015V-132-154-20FAN AXIAL 50X15MM 12VDC WIRE |
1,783 |
|
Datasheet |
|
CFM-50V | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 7.7 CFM (0.216m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.4dB(A) | 0.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.073 lb (33.11 g) |
|
FAD1-09225CBMW11FAN AXIAL 92.5X25MM 12VDC WIRE |
483 |
|
Datasheet |
|
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 44.7 CFM (1.25m³/min) | 0.101 in H2O (25.1 Pa) | Ball | Tubeaxial | - | 31.2dB(A) | 1.8 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-4010C-150-195FAN AXIAL 40X10.5MM 12VDC WIRE |
114 |
|
Datasheet |
|
CFM-40C | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 19.5dB(A) | 600 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AUB0524MDFAN AXIAL 50X20MM 24VDC WIRE |
842 |
|
Datasheet |
|
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 13.4 CFM (0.375m³/min) | 0.137 in H2O (34.0 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

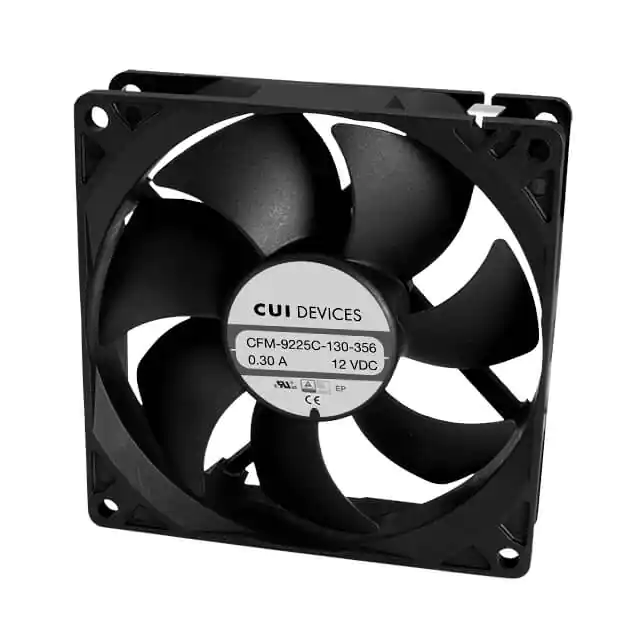

CFM-9225C-130-356FAN AXIAL 92X32MM 12VDC WIRE |
1,104 |
|
Datasheet |
|
CFM-92C | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.6dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
ASB0305MA-DFAN AXIAL 30X10MM 5VDC WIRE |
1,177 |
|
Datasheet |
|
ASB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 550 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.017 lb (7.71 g) |
|
|
ASB0312MA-DFAN AXIAL 30X10MM 12VDC WIRE |
809 |
|
Datasheet |
|
ASB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 720 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.017 lb (7.71 g) |
