DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
9WG1248F1D01-E120X38MM 48V,SPLASH PROOF,RBLS D |
3,583 |
|
Datasheet |
 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | - | CSA, TUV, UR | - |
|
|
9WG1248E1D01-E120X38MM 48V,SPLASH PROOF,RBLS D |
4,635 |
|
Datasheet |
|
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | - | CSA, TUV, UR | - |
|
9WP1212H1D01FAN AXIAL 120X38MM 12VDC WIRE |
4,427 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1212H1D011FAN AXIAL 120X38MM 12VDC WIRE |
3,233 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1224H1D011FAN AXIAL 120X38MM 24VDC WIRE |
3,881 |
|
Datasheet |
|
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1212H102FAN AXIAL 120X38MM 12VDC WIRE |
4,705 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 4.56 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1212H1021FAN AXIAL 120X38MM 12VDC WIRE |
3,886 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 4.56 W | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1224H102FAN AXIAL 120X38MM 24VDC WIRE |
3,313 |
|
Datasheet |
|
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1224H1021FAN AXIAL 120X38MM 24VDC WIRE |
2,908 |
|
Datasheet |
|
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1212L1011FAN AXIAL 120X38MM 12VDC WIRE |
2,602 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 57.2 CFM (1.60m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 1.68 W | 1500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
|
9WP1212L102120X38MM 12V,SPLASH PROOF DC 0 |
2,283 |
|
Datasheet |
|
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | CSA, TUV, UR | - |
|
MSI1225H24B1+6-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
4,606 |
|
Datasheet |
|
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 25.80mm | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 3300 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.356 lb (161.48 g) |
|
|
MSI1225L24B1+6-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
2,188 |
|
Datasheet |
|
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 25.80mm | - | - | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.356 lb (161.48 g) |
|
THB1224BFAN AXIAL 120X25.4MM 24VDC WIRE |
4,115 |
|
Datasheet |
|
THB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 174.7 CFM (4.89m³/min) | 2.139 in H2O (532.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 22.8 W | 8300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|
|
9CR0612H50260X51MM 12V,COUNTER ROTATING DC |
3,015 |
|
Datasheet |
|
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 51.00mm | - | - | Ball | Tubeaxial (Dual) | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | CSA, TUV, UR | - |
|
|
9GV0824G102FAN AXIAL 80X38MM 24VDC WIRE |
3,729 |
|
Datasheet |
|
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 65.0dB(A) | 38.4 W | 10200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.485 lb (220.00 g) |
|
GFC0812DW-F00FAN AXIAL DUAL 80X76MM 12VDC |
4,600 |
|
Datasheet |
|
GFC | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 76.00mm | 160.2 CFM (4.49m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.2dB(A) | 66 W | 9200 Front, 9600 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.851 lb (386.01 g) |
|
|
9GV1212G4021FAN AXIAL 119X25.4MM 12VDC WIRE |
3,816 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 20.16 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|

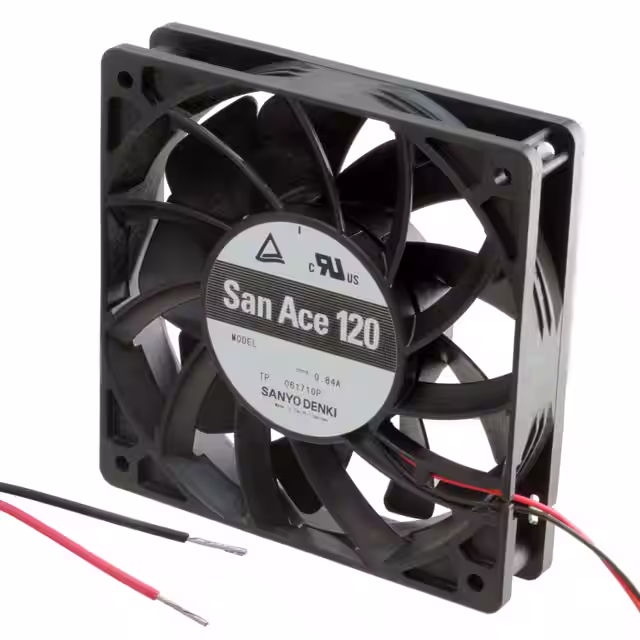

9GV1224G402FAN AXIAL 119X25.4MM 24VDC WIRE |
3,280 |
|
Datasheet |
|
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 20.16 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
|
9GV1212G402FAN AXIAL 120X25.4MM 12VDC WIRE |
2,952 |
|
Datasheet |
|
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 20.16 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
