FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

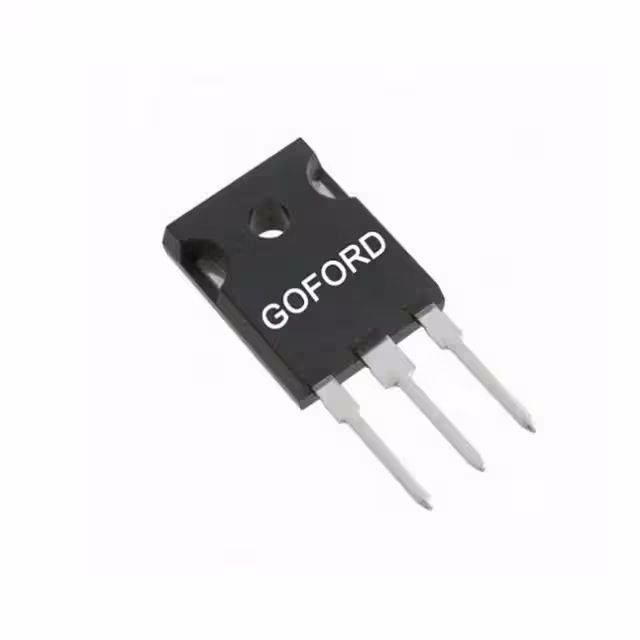

GC20N65QN650V,RD(MAX)<170M@10V,VTH2.5V~4 Goford Semiconductor |
4,909 | - |
|
Datasheet |
 |
Cool MOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 170mOhm @ 10A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±30V | 1724 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
GT023N10QMOSFET N-CH 100V 226A 250W TO-2 Goford Semiconductor |
3,470 | - |
|
Datasheet |
|
SGT | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 226A (Tc) | 10V | 2.7mOhm @ 80A, 10V | 4V @ 250µA | 121 nC @ 10 V | ±20V | 8488 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
GC20N65QDMOSFET N-CH 650V 20A TO-247 Goford Semiconductor |
3,794 | - |
|
Datasheet |
|
- | - | Tube | Active | - | MOSFET (Metal Oxide) | - | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 39 nC @ 10 V | ±30V | 1729 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-247-3 |
|
|
GC120N65QFMOSFET N-CH 650V 30A TO-247 Goford Semiconductor |
5,399 | - |
|
Datasheet |
|
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 120mOhm @ 38A, 10V | 5V @ 250µA | 68 nC @ 10 V | ±30V | 3100 pF @ 275 V | - | 96.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
GC080N65QFMOSFET N-CH 650V 50A TO-247 Goford Semiconductor |
3,975 | - |
|
Datasheet |
|
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 50A (Tc) | 10V | 80mOhm @ 16A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 4900 pF @ 380 V | - | 298W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
GC030N65QFMOSFET N-CH 650V 80A TO-247 Goford Semiconductor |
5,965 | - |
|
Datasheet |
|
- | - | Tube | Active | - | MOSFET (Metal Oxide) | - | 80A (Tc) | 10V | 30mOhm @ 20A, 10V | 5V @ 250µA | 240 nC @ 10 V | ±30V | 9500 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-247-3 |
|
|
GC041N65QFMOSFET N-CH 650V 70A TO-247 Goford Semiconductor |
4,663 | - |
|
Datasheet |
|
SuperJunction | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 70A (Tc) | 10V | 43mOhm @ 20A, 10V | 5V @ 250µA | 160 nC @ 10 V | ±30V | 7668 pF @ 400 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
G400P06TMOSFET P-CH 60V 32A TO-220 Goford Semiconductor |
5,659 | - |
|
Datasheet |
|
TrenchFET® | TO-220-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | - | 32A (Tc) | 10V | 40mOhm @ 12A, 10V | 3V @ 250µA | - | ±20V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
G18N20TMOSFET N-CH 200V 18A 110W 190m(m Goford Semiconductor |
3,722 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 190mOhm @ 8A, 10V | 4V @ 250µA | 31 nC @ 5 V | ±30V | 1120 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
GT700P08TMOSFET P-CH 80V 25A TO-220 Goford Semiconductor |
4,635 | - |
|
Datasheet |
|
SGT | TO-220-3 | Tube | Active | P-Channel | MOSFET (Metal Oxide) | - | 25A (Tc) | 10V | 72mOhm @ 2A, 10V | 3.5V @ 250µA | - | ±20V | - | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
