FETs, MOSFETs
| Manufacturer | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Reset All
Apply All
Result:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCB160N04Y-TPN-CHANNEL MOSFET, D2-PAK Micro Commercial Co |
3,954 | - |
|
- |
 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 4.5V, 10V | 1.85mOhm @ 20A, 10V | 2.5V @ 250µA | 132 nC @ 20 V | ±20V | 7100 pF @ 25 V | - | 150W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
~~3-Top.jpg)
|

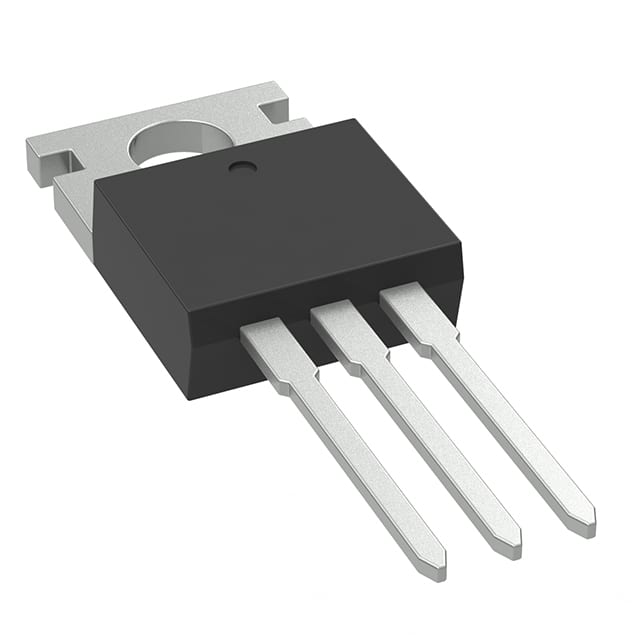

MSJP11N65-BPMOSFET N-CH 650V 11A TO220AB Micro Commercial Co |
3,698 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 901 pF @ 50 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (H) |
|
|
MCB90N12A-TPN-CHANNEL MOSFET,D2-PAK Micro Commercial Co |
3,533 | - |
|
Datasheet |
|
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 90A (Tc) | 4.5V, 10V | 9mOhm @ 45A, 10V | 3V @ 250µA | 72 nC @ 10 V | ±20V | 4600 pF @ 60 V | - | 138W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
MSJPF11N65-BPMOSFET N-CH 650V 11A TO220F Micro Commercial Co |
5,780 | - |
|
Datasheet |
|
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 380mOhm @ 5.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 901 pF @ 50 V | - | 31.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
MCB130N10Y-TPMOSFET N-CH 100V 130A D2PAK Micro Commercial Co |
3,169 | - |
|
- |
|
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 130A (Tc) | 10V | 4.6mOhm @ 60A, 10V | 4V @ 250µA | 101.6 nC @ 10 V | ±20V | 6124.6 pF @ 50 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
MCU110N08Y-TPN-CHANNEL MOSFET,DPAK Micro Commercial Co |
5,976 | - |
|
Datasheet |
|
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 110A (Tc) | 4.5V, 10V | 6mOhm @ 55A, 10V | 2.5V @ 250µA | 95 nC @ 10 V | ±20V | 6500 pF @ 40 V | - | 83W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
MCP118N085Y-BPN-CHANNEL MOSFET,TO-220AB(H) Micro Commercial Co |
3,196 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 85 V | 118A (Tc) | 6V, 10V | 6.5mOhm @ 59A, 10V | 4V @ 250µA | 62 nC @ 10 V | ±20V | 4300 pF @ 40 V | - | 200W | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (H) |
|
|
MCB118N085Y-TPN-CHANNEL MOSFET,D2-PAK Micro Commercial Co |
4,970 | - |
|
- |
|
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 85 V | 118A (Tc) | 6V, 10V | 6mOhm @ 59A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 4400 pF @ 25 V | - | 156W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
MCAC60P06-TPMOSFET P-CH 60 60A DFN5060 Micro Commercial Co |
4,708 | - |
|
Datasheet |
|
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V | 18mOhm @ 20A, 10V | 3.5V @ 250µA | 75 nC @ 10 V | ±20V | 5814 pF @ 25 V | - | 130W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DFN5060 |
|
|
MCP120N08Y-BPN-CHANNEL MOSFET,TO-220AB(H) Micro Commercial Co |
3,653 | - |
|
Datasheet |
|
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 4.8mOhm @ 20A, 10V | 4V @ 250µA | 73 nC @ 10 V | ±20V | 5666 pF @ 40 V | - | 190W | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (H) |
